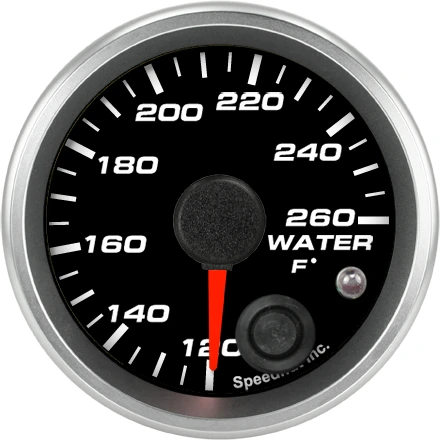

Speedhut 2-1/16" 120-260F Water Temp Gauge w/ Warning (R2-WT1-REV)
The Speedhut 2-1/16" 120-260F Water Temp Gauge w/ Warning (R2-WT1-REV) is a precise instrument designed to provide real-time monitoring of your engine's coolant temperature. This gauge helps you maintain optimal engine performance and prevent potential damage from overheating. Featuring a clear display and a built-in warning light, it offers both immediate temperature readings and critical alerts when your engine exceeds safe operating temperatures. Included with the gauge are all the necessary components for installation, ensuring a straightforward setup process.
KEY FEATURES AND BENEFITS:
Provides accurate readings of engine coolant temperature within a 120-260°F range.
Equipped with a performance 2-wire temperature sender for reliable and responsive temperature monitoring.
Features an integrated warning light that illuminates when a pre-set temperature threshold is reached, alerting you to potential overheating.
The 2-1/16 inch (52mm) size ensures compatibility with a wide range of aftermarket gauge pods and mounting solutions.
Includes all essential wiring harnesses and the temperature sensor, simplifying the installation process.
Gauge Type: Temperature Gauge
Temperature Sender Type: 2-Wire Temp Sender (Performance)
Range: 120-260 °F
Size: 2 1/16 inch
Hole Size: 2.05 inch (52mm)
Standard or Metric: Standard
Warning Light: Yes
3 ft Power & Lighting Harness – for LED Lit Gauges and Clocks
Speedhut Temperature Sensor
Temperature Gauge Wiring Harness (2-Wire Cable)
Mount the Gauge: Choose a suitable location in your vehicle and create a 2.05-inch diameter hole. Insert the gauge into the hole and secure it using the provided mounting hardware.
Install the Temperature Sensor: Locate a suitable port in your engine's coolant system (such as the thermostat housing or a coolant line) and install the included Speedhut temperature sensor. Ensure a proper seal to prevent leaks.
Connect the Sensor Wiring: Connect the 2-wire cable from the temperature sensor to the corresponding terminals on the back of the gauge.
Connect the Power and Lighting Harness: Connect the 3 ft Power & Lighting Harness to the appropriate power and ground sources in your vehicle's electrical system. Refer to the wiring diagram for correct connections.
Test the Gauge: Start your vehicle and allow it to reach operating temperature. Observe the gauge to ensure accurate readings and verify the warning light functions properly at high temperatures.
BENEFITS OF USING THE SPEEDHUT 2-1/16" 120-260F WATER TEMP GAUGE W/ WARNING (R2-WT1-REV):
Early Overheat Detection: Monitor engine coolant temperature in real-time to address overheating before it causes serious damage.
Enhanced Engine Longevity: Helps maintain correct operating temperatures for improved engine lifespan and efficiency.
Performance Monitoring: Allows drivers to evaluate engine behavior under different driving conditions.
Simplified Installation: All required wiring and sensor components are included, making setup quick and easy.
Clear and easy-to-read analog display for quick temperature checks.
Performance-oriented 2-wire sensor for accurate and rapid temperature updates.
Integrated visual warning system to immediately alert the driver of high coolant temperatures.
Standard 2-1/16" size for versatile mounting options in various vehicle interiors.
Complete wiring harnesses included for straightforward electrical connections.
Robust construction designed to withstand the rigors of the automotive environment.
Product identification
- Brand: Speedhut
- Model / MPN: R2-WT1-REV
