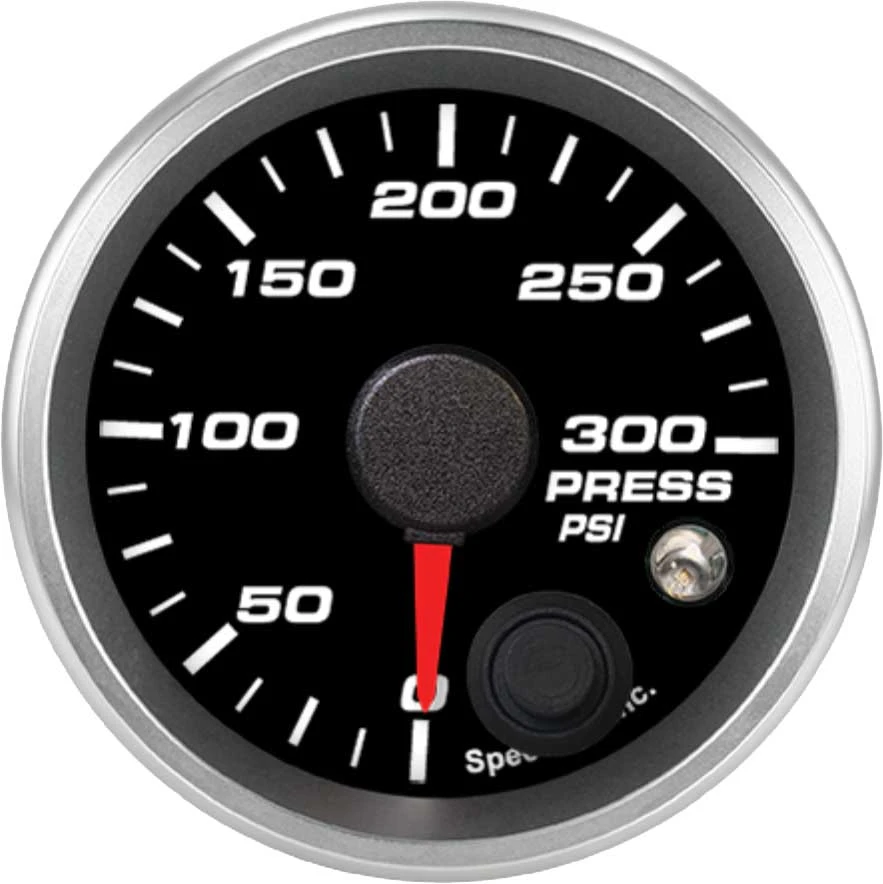

Speedhut 2-1/16" 0-300 PSI Pressure Gauge w/ Warning (R2-P2-REV)
The Speedhut 2-1/16" 0-300 PSI Pressure Gauge w/ Warning (R2-P2-REV) is a reliable instrument designed for accurate pressure monitoring in various applications. Its 2-1/16 inch (52mm) size makes it a versatile fit for many gauge setups. Equipped with a user-settable warning light, this gauge allows you to quickly identify pressure levels that fall outside your desired range, providing an added layer of safety and awareness. The inclusion of a high-quality 3-wire military-grade transducer ensures precise and consistent pressure readings. This gauge is built with a focus on performance and ease of use, making it a valuable tool for anyone needing to keep a close eye on pressure levels.
KEY FEATURES AND BENEFITS:
Accurate Range: Provides accurate pressure readings from 0 to 300 PSI.
Warning Light: Built-in LED can be configured for both low and high pressure thresholds.
Reliable Sensor: Utilizes a robust 3-wire military-grade transducer for reliable performance.
Compact Size: 2-1/16 inch (52mm) design fits standard gauge openings.
Secure Mounting: Easy installation with the included spin-lock ring.
Complete Kit: Includes all necessary wiring harnesses for straightforward setup.
Gauge Type: Pressure Gauge
Range: 0-300 psi
Size: 2 1/16 inch (52mm)
Hole Size: 2.062 inches (52mm)
Pressure Sender Type: 3-Wire Military Grade Transducer (Performance)
Warning Light: Yes
3 ft Power & Lighting Harness – for LED Lit Gauges and Clocks
Pressure Gauge Wiring Harness (3-Wire Cable)
Pressure Sensor – 300psi
Connect the Pressure Sensor: Attach the included 3-wire pressure sensor to the system you need to monitor.
Connect the Wiring Harness: Use the provided Pressure Gauge Wiring Harness to connect the pressure sensor to the gauge.
Connect Power and Lighting: Utilize the 3 ft Power & Lighting Harness to provide power to the gauge and enable the LED illumination if applicable.
Mount the Gauge: Insert the gauge into a 2.062" (52mm) diameter hole and secure it using the spin-lock ring.
Set the Warning Light (Optional):
With the gauge powered off, press and hold the button on the gauge face.
While holding the button, power the gauge on. Release the button when the warning light illuminates.
The pointer will move slowly clockwise. Press the button at your desired low-pressure warning point. The LED will blink to confirm.
The pointer will then move counter-clockwise. Press the button at your desired high-pressure warning point. The LED will blink to confirm.
Monitor Pressure: Once installed and powered, the gauge will display the current pressure reading. The warning light will activate if the pressure goes below or above your set thresholds.
BENEFITS OF USING THE SPEEDHUT 2-1/16" 0-300 PSI PRESSURE GAUGE W/ WARNING (R2-P2-REV):
Provides clear and immediate feedback on pressure levels, helping users maintain optimal system performance.
Integrated warning light helps prevent system damage by alerting users to unsafe pressure levels.
Military-grade transducer ensures high accuracy and reliability in readings.
Standard size makes it compatible with most gauge pods or panels.
Includes all necessary components for an easy and clean installation process.
Real-time Pressure Indication: Continuously displays the current pressure level from 0 to 300 PSI.
Configurable Alert System: Allows users to define specific low and high pressure points that trigger the warning light.
High-Accuracy Measurement: Employs a 3-wire military-grade transducer for precise and dependable readings.
Standardized Fitment: Designed to fit seamlessly into any 2-1/16 inch (52mm) gauge opening.
Simplified Installation: Comes complete with all necessary wiring and mounting hardware.
Product identification
- Brand: Speedhut
- Model / MPN: R2-P2-REV
