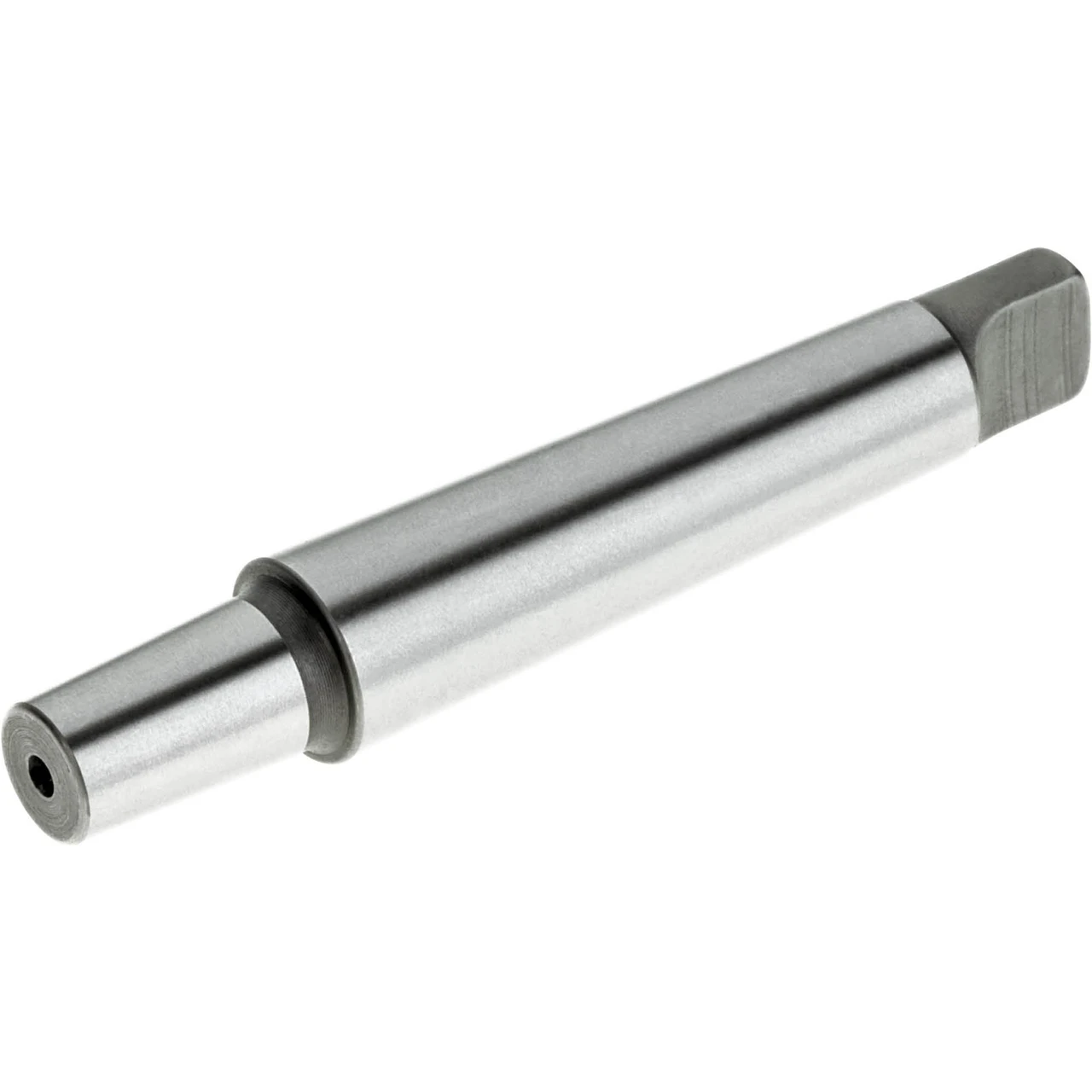

South Bend Drill Chuck Arbor – Morse Taper to Jacobs Taper (MT/JT)
South Bend Drill Chuck Arbor – Morse Taper to Jacobs Taper provides reliable precision for machinists, designed to fit lathes and drill chucks needing Morse and Jacobs taper compatibility. The long end features an MT2 (Morse Taper) for lathe insertion, while the short end offers a JT2 (Jacobs Taper) for drill chuck mounting.
Expertly ground to minimal deviation in concentricity, this arbor supports applications requiring high accuracy. With a total indicated runout of 0.00059" to 0.00079", this arbor enhances the reliability of your machine setup for precision work.
Specifications and Dimensions
Mount type: MT2 (long end) to JT2 (short end)
Total indicated runout: 0.00059" – 0.00079"
Precision ground for concentric accuracy
Key Features and Benefits
Long end MT2 Morse taper fits securely into lathe spindle
Short end JT2 Jacobs taper mounts drill chuck with precision
Ground to exact tolerances for minimal concentric deviation
Reliable, stable performance suited for high-precision machining
Product identification
- Brand: South Bend
