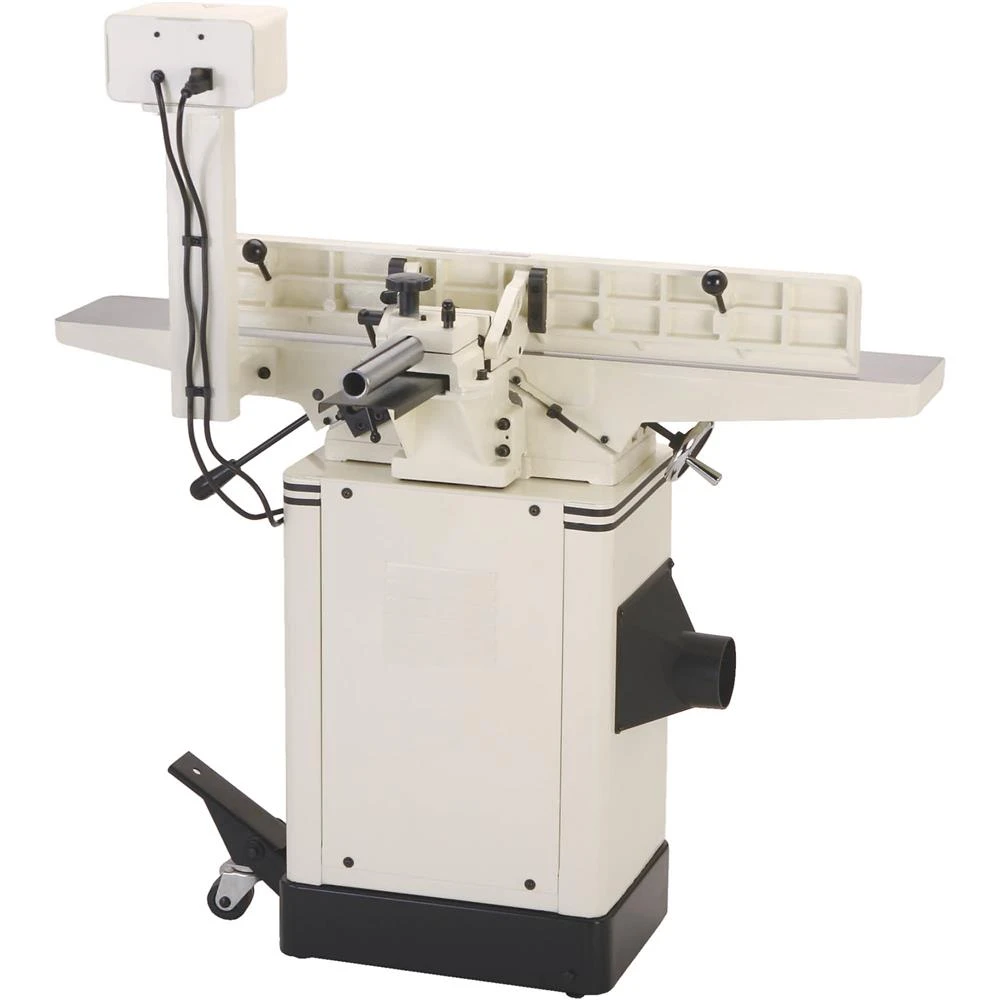

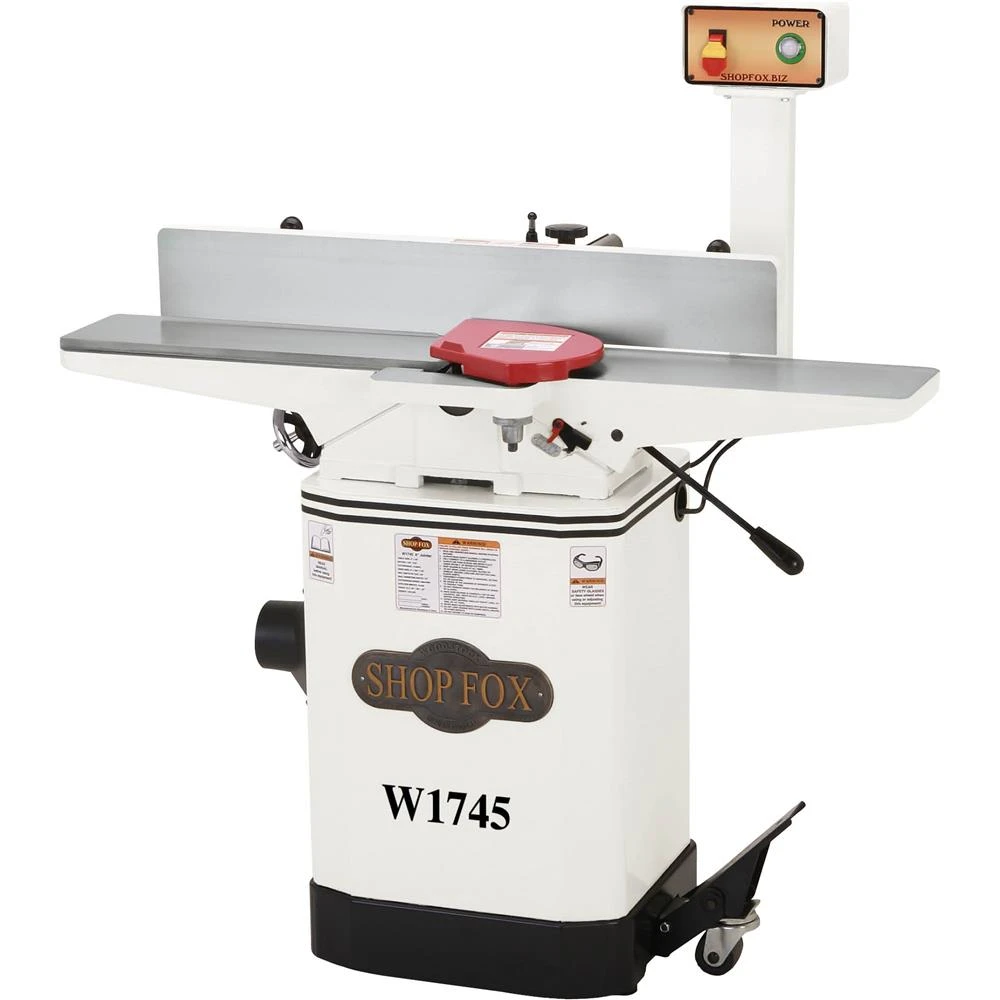

Shop Fox 6" Jointer with Mobile Base Rack-and-Pinion Fence Adjustment (W1745)
Shop Fox 6-Inch Jointer with Mobile Base Rack-and-Pinion Fence Adjustment and Cast Iron Construction (W1745) offers tremendous control for edge-jointing wide boards with its oversized fence and rack-and-pinion adjustment mechanism.
Specifications and Dimensions
Motor: 1 HP, 120V, single-phase, 13A
Maximum stock width: 6"
Maximum depth of cut: 1/8"
Maximum rabbeting capacity: 1/2"
Cutterhead diameter: 2-1/2"
Knives: 3 (HSS) 6" x 5/8" x 1/8"
Cutterhead speed: 4800 RPM
Table size: 6" x 46"
Table height from floor: 32-1/2"
Cuts per minute: 14,400
Fence size: 5"H x 35"L
Fence adjustment: positive stops @ ± 45 degrees & 90 degrees
Overall dimensions: 46" L x 27-1/2" W x 37-1/4" H
Key Features and Benefits

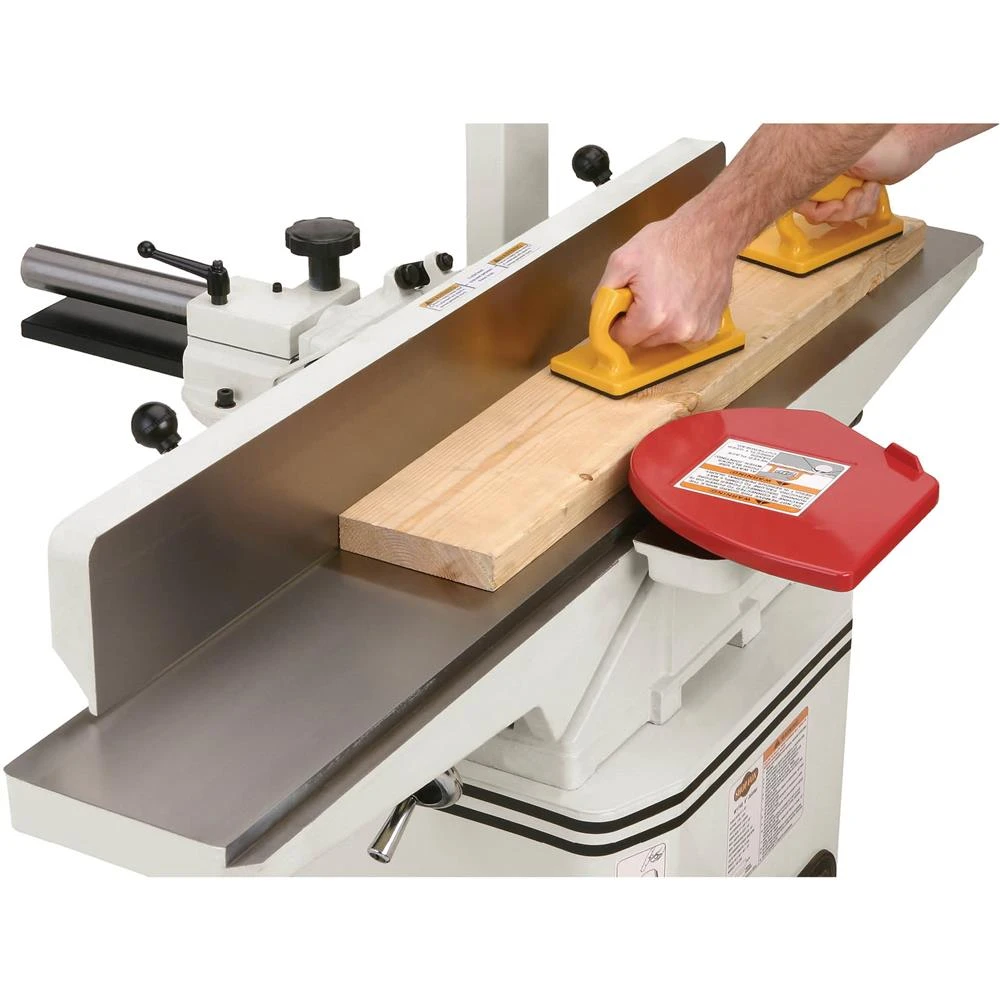

Oversized fence for control and precision
Rack-and-pinion adjustment mechanism
Fine-adjust handwheel for precise alignment

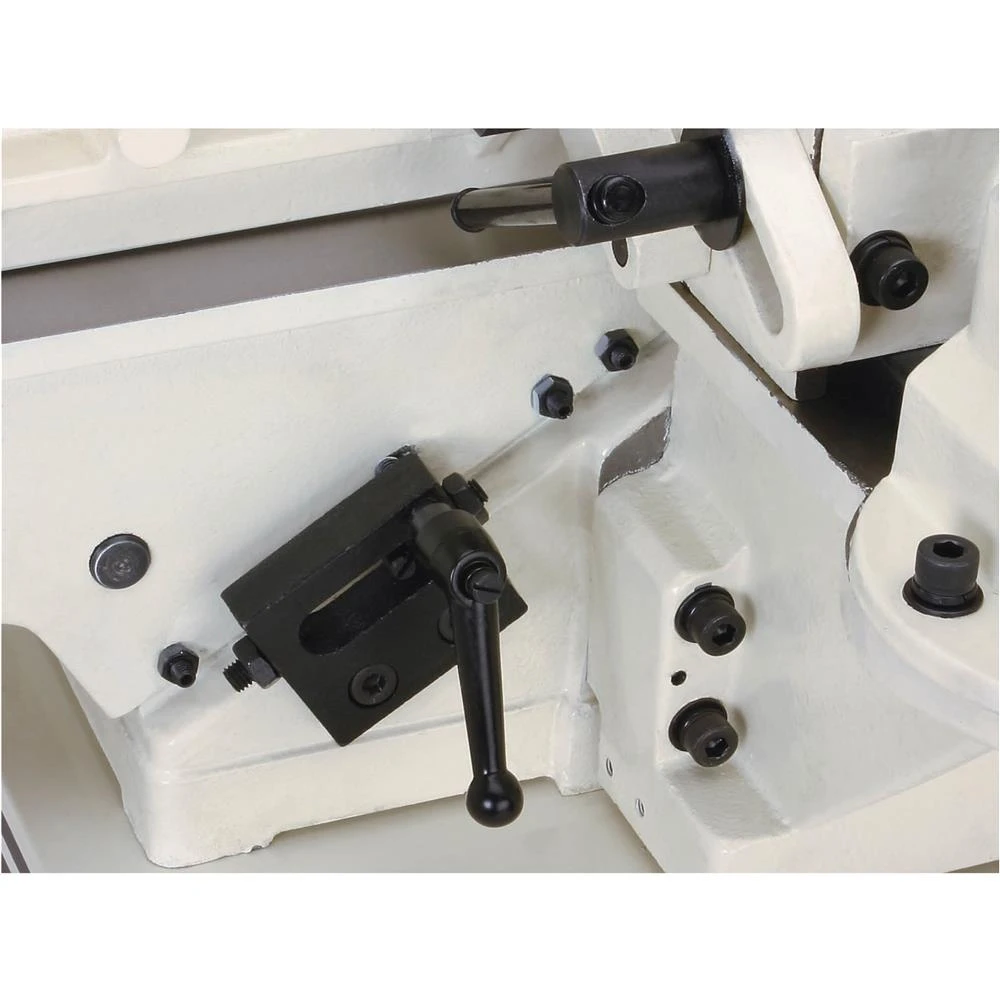

Lever-adjusted infeed table for quick adjustments
Rugged cast iron construction for durability
Mobile base for easy maneuverability
Product identification
- Brand: Shop Fox
- Model / MPN: W1745
