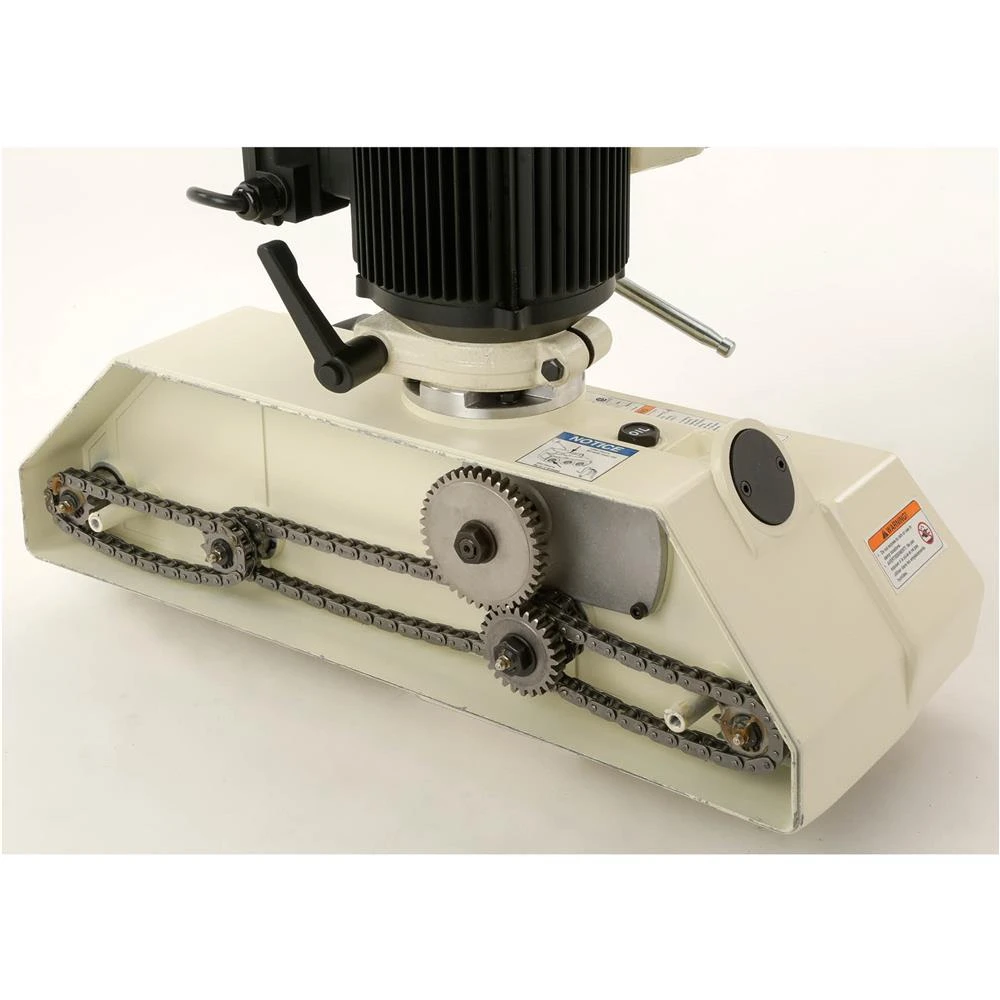

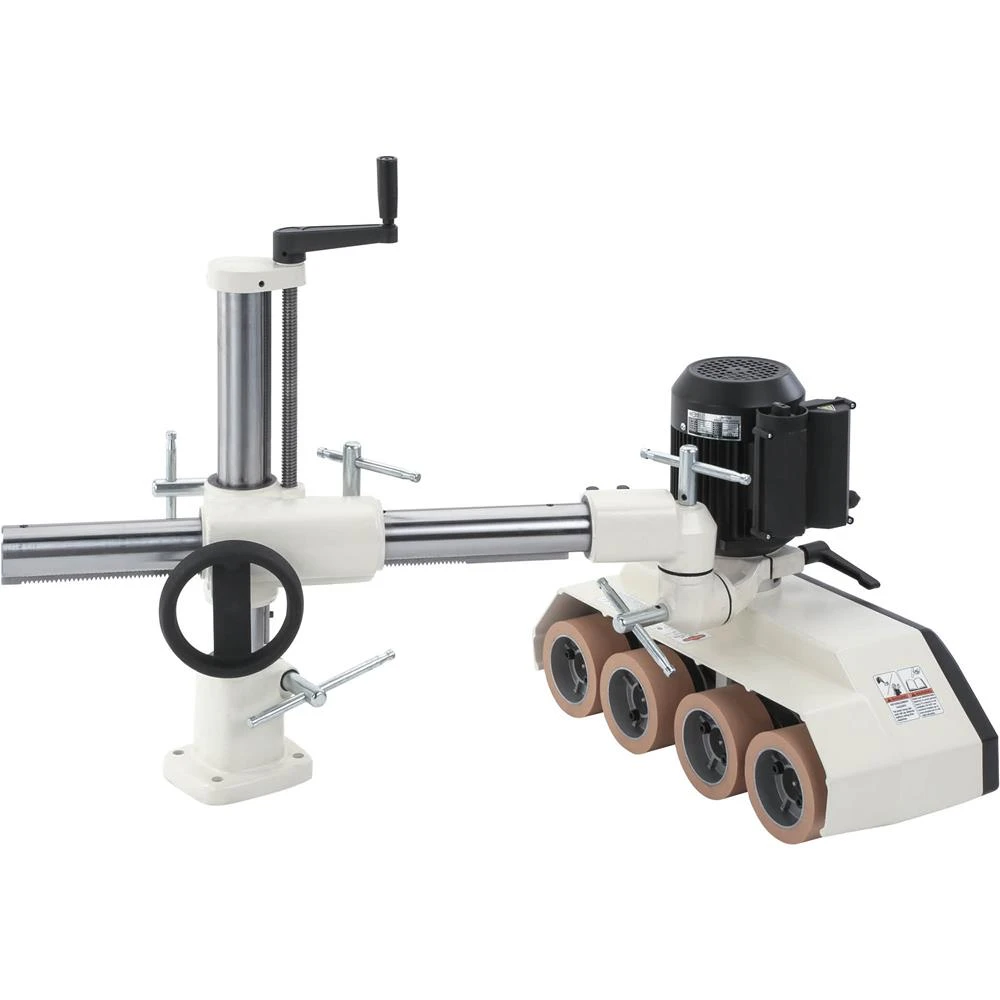

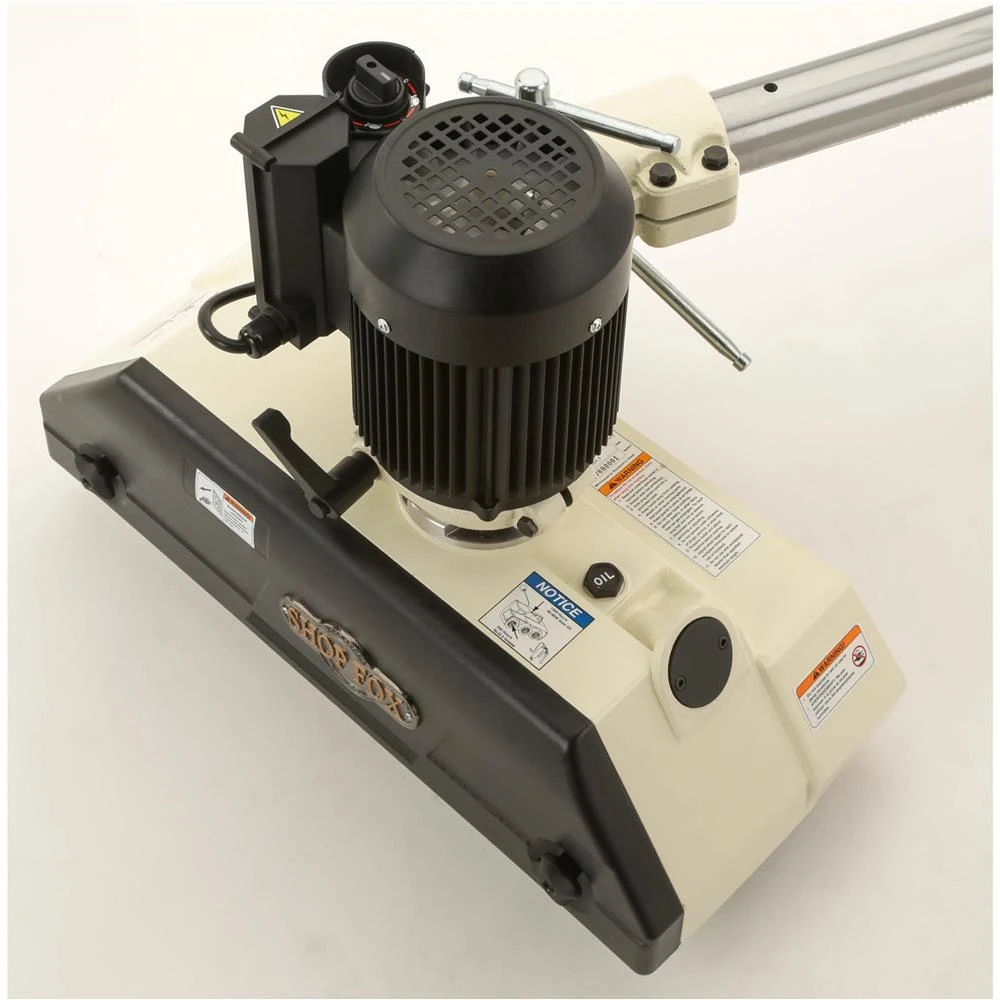

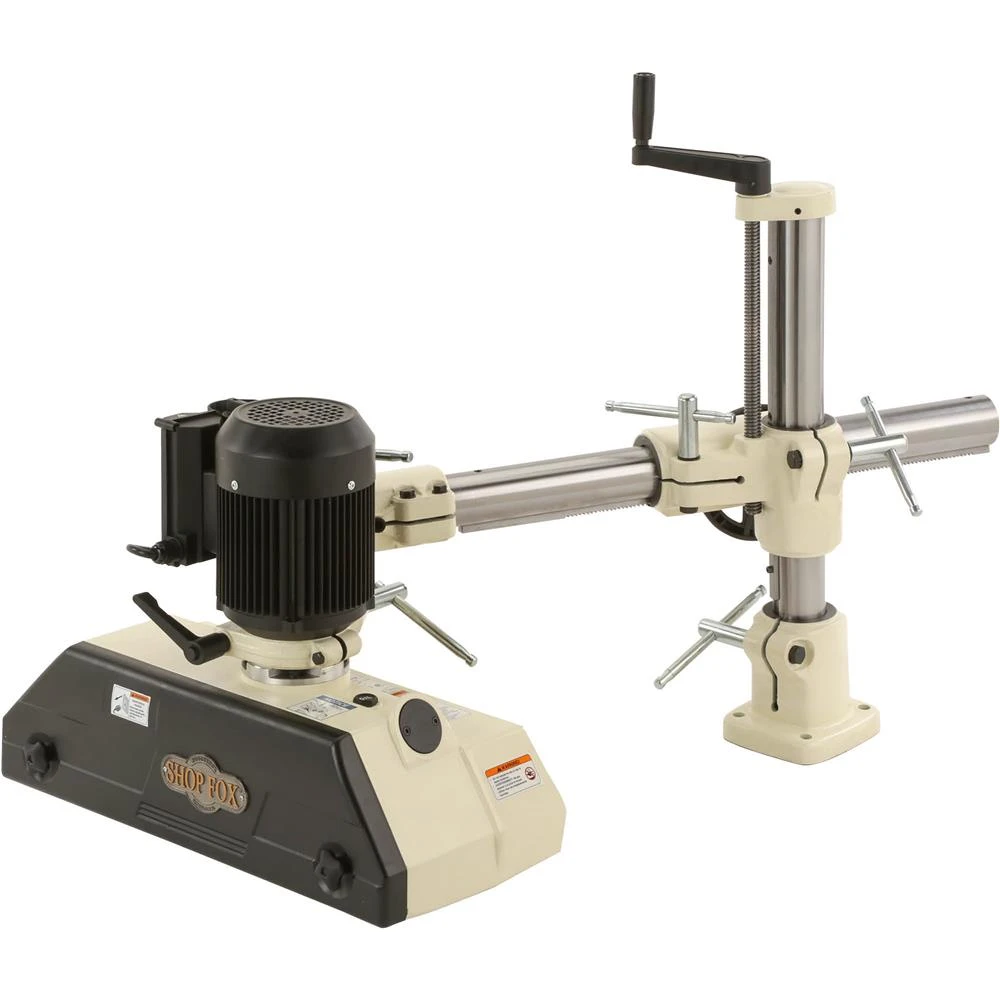

Shop Fox 1 HP Power Feeder with XYZ Adjustment and Four Feed Speeds (W1768)
Shop Fox 1 HP Power Feeder with XYZ Adjustment and Four Feed Speeds 4 Rollers (W1768) is designed to make milling and ripping longer or wider stock easy, accurate, and safe. Featuring a 1 HP motor with four feed speeds, this feeder allows you to adjust the feed rate for optimal control.
Specifications and Dimensions
Motor: 1 HP, 220V, single-phase
Number of speeds: 4
Feed speeds: 13, 26, 33, 66 FPM
Number of rollers: 4
Roller size: 2-3/8"W x 4-3/4" Dia.
Roller suspension travel: 3/4"
Vertical movement: 9-7/8"
Horizontal movement: 18-1/8"
Key Features and Benefits
1 HP motor for robust performance
Four feed speeds for precise control
Forward and reverse rotation for versatility
XYZ adjustment for accurate positioning
Synthetic rubber wheels for optimal grip
Four rollers for smooth feeding
Product identification
- Brand: Shop Fox
- Model / MPN: W1768
