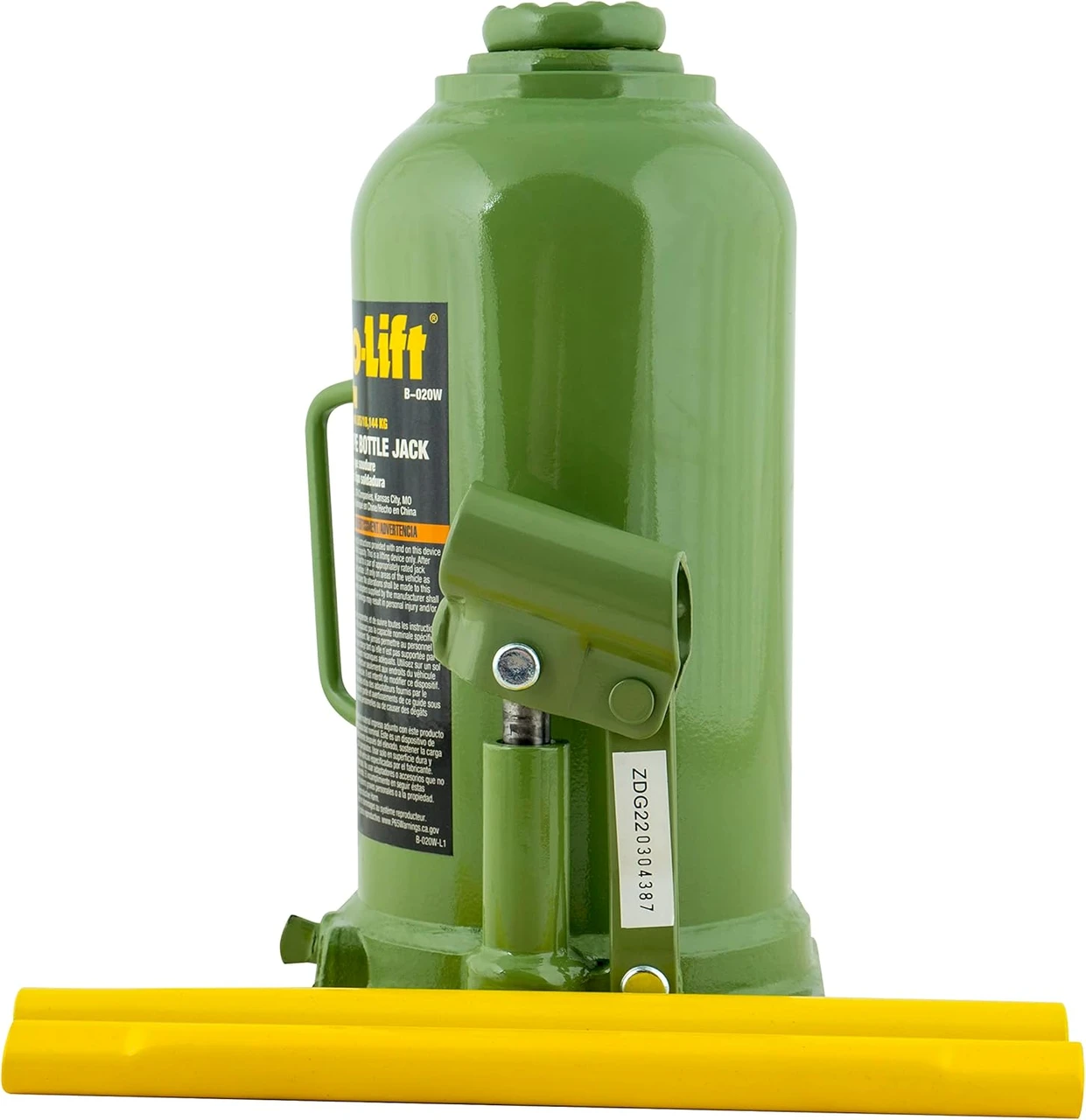

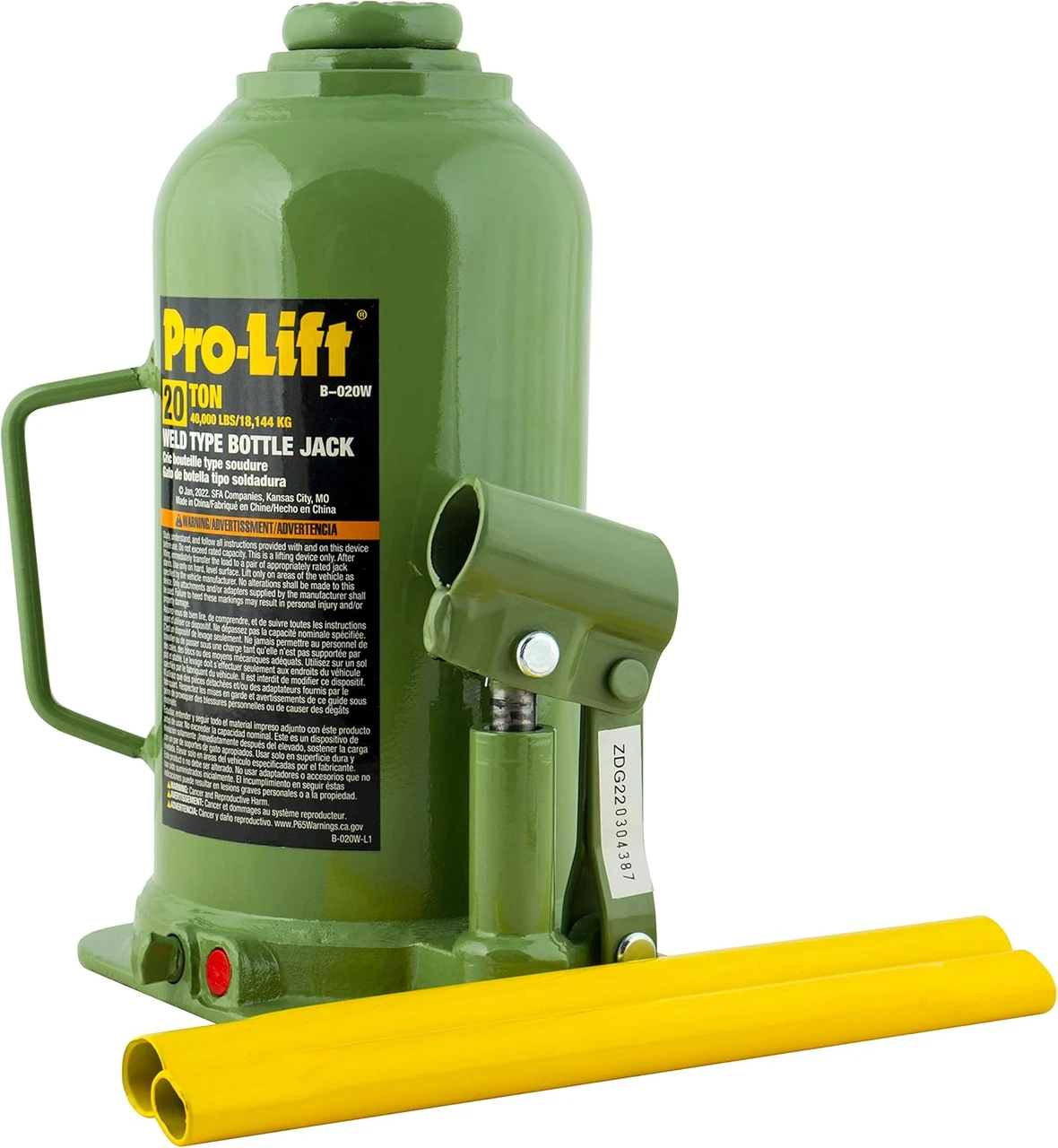

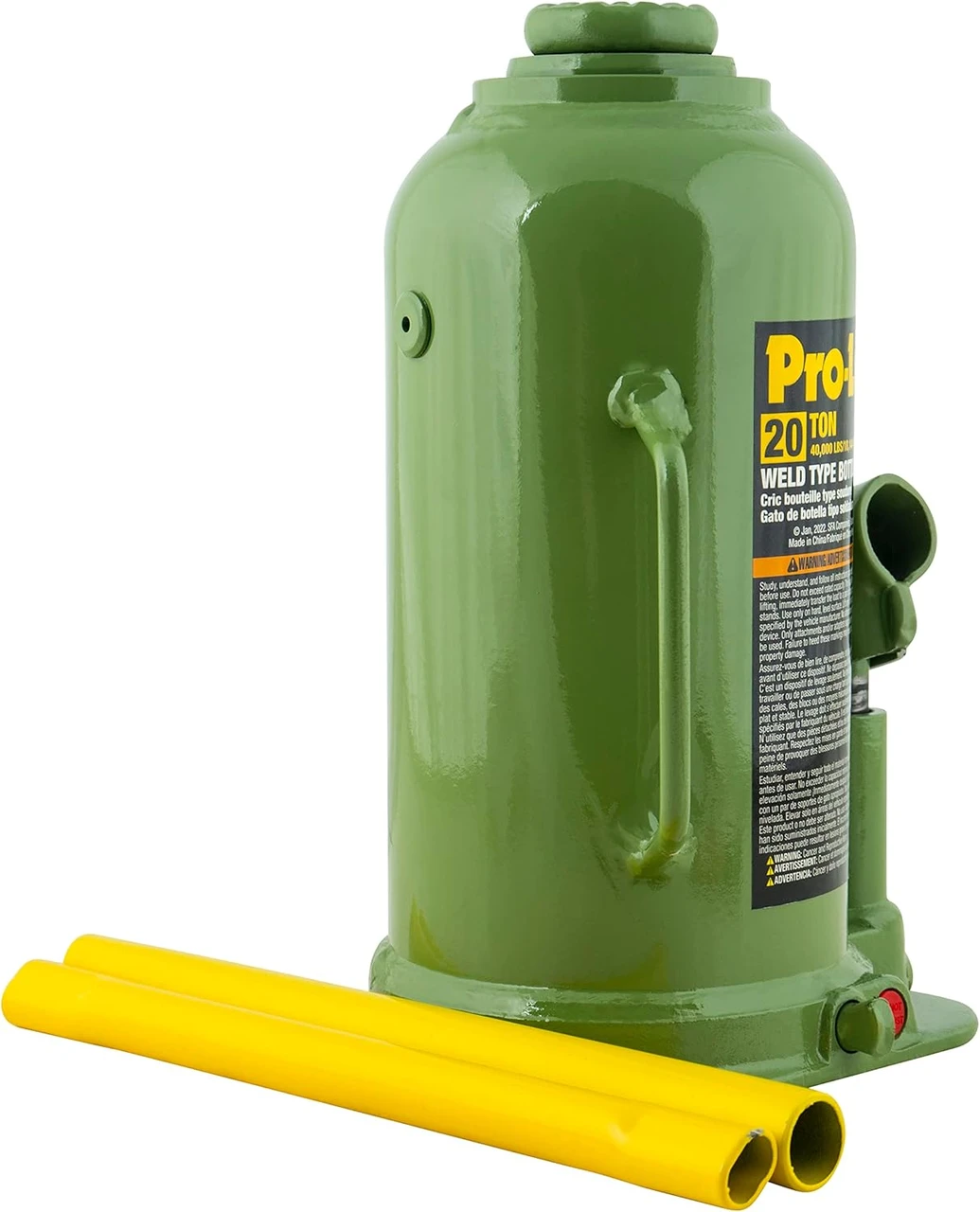

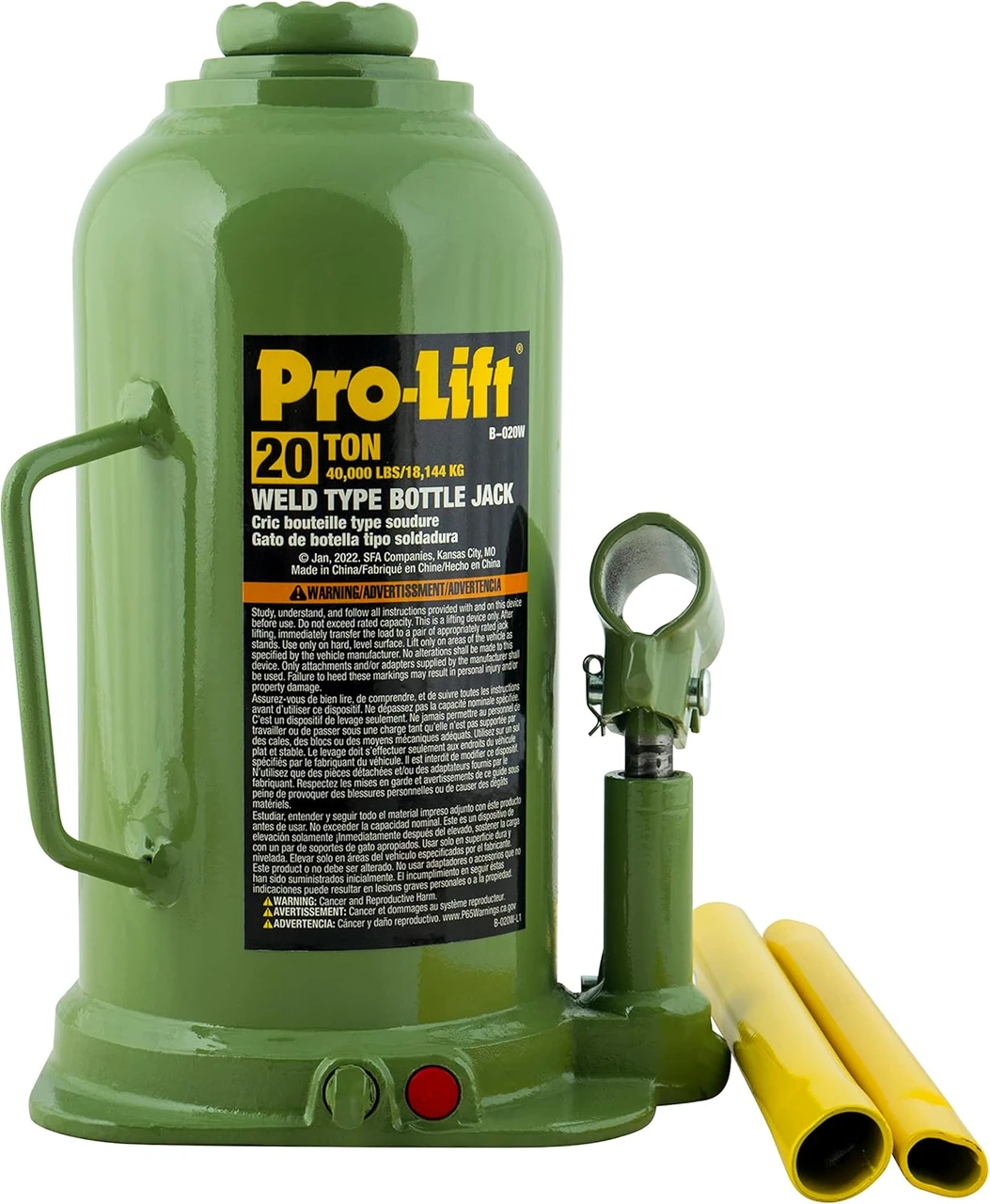

Pro-Lift B-020W 20 Ton Welded Bottle Jack
Pro-Lift B-020W provides a twenty-ton manual hydraulic bottle-jack option with a side pump and two-piece handle. Its adjustable extension screw is separate from the hydraulic movement, so compare the full listed height range with the lifting point rather than selecting only by capacity.
Specifications and included details
- 20-ton capacity, listed as40, 000lb.
- Minimum height9-3/8 inches; maximum height17-1/2 inches.
- 2-3/8-inch extension screw.
- 5-1/4 x6-inch listed base; welded construction and two-piece handle.
Before ordering
Match the rated load, lifting-point shape and clearance. The jack starts at 9-3/8 inches, which does not establish universal low-vehicle fit. Verify allowed extension and orientation using the manufacturer instructions and arrange rated supports for any sustained support requirement.
Product questions and answers
Does 20-ton capacity mean it will fit under any vehicle?
No. Capacity and clearance are independent. Compare the 9-3/8-inch minimum height with the actual lifting point.
Is the extension screw the hydraulic stroke?
No. The 2-3/8-inch screw adjustment is a separately listed dimension. Hydraulic stroke is not specified here.
Are axle stands included?
No stands are itemized. The listed accessory is a two-piece handle; use appropriate supports separately when required.
