PCE INSTRUMENTS borescope details

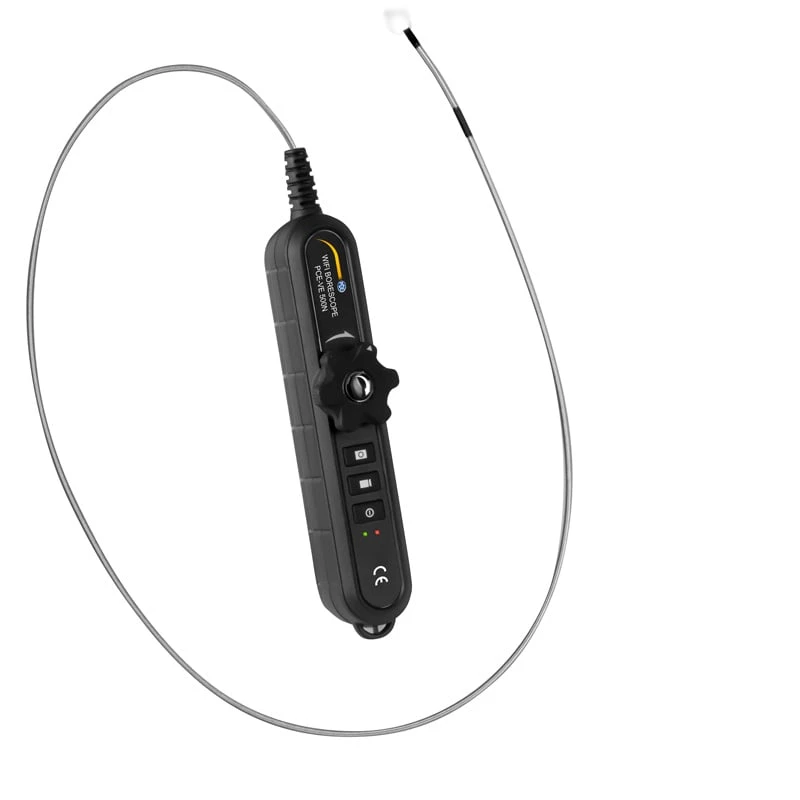

PCE Instruments WiFi Industrial Borescope with 180° Swivel Camera (PCE-VE 500N)
PCE Instruments WiFi Industrial Borescope (PCE-VE 500N) is a high-performance inspection tool designed for diagnosing hard-to-reach areas. Featuring a flexible, metal-braided 1m cable and a 180° swiveling camera head, this borescope provides real-time image transmission via WiFi to iOS and Android devices.
With its 4.5mm camera diameter, this device is ideal for automotive, construction, and maintenance professionals. The borescope's 5 adjustable LED lights ensure optimal illumination and images and videos can be stored or shared directly through the app, eliminating the need for additional hardware.
Specifications and Dimensions
Cable Length: 1000 mm / 3 ft 3 in
Cable Type: Flexible, metal braided
Camera Head: Swivels 180°
Cable Diameter: 4.5 mm
Degree of Protection: IP67
Field of View Depth: 10 … 100 mm
Field of View: 90°
Lighting: 5 LEDs dimmable via app
Exposure: Automatic
Anti-Reflective Coating: Automatic
Camera Resolution / Image Sensor: 1024 x 768 Px
Interface: USB-C charging socket 5V / 1A, WiFi IEEE 802.11 b/g/n 2.4 GHz
Storage Option: Image and video
Storage: Via iOS or Android device
Image Format: JPEG (1024 x 768 Px)
Video Format: MP4 (1024 x 768 Px)
Menu Navigation: Graphically in App
Operating Temperature (Borescope Cable): -10 … +60 °C / 14 … 140 °F
Operating Temperature (Handpiece): 0 … 40 °C / 32 … 104 °F
Power Supply: 3.7V Li-Ion battery, 2600 mAh
Operating Time: Minimum 4 hours
Recharge Time: 2 hours
Dimensions: 207.5 x 35 x 50 mm / 8.1 x 1.3 x 1.9 in
Weight: 248 g / 8.7 oz
Key Features and Benefits
Wireless image transmission via WiFi to iOS and Android devices
180° swiveling camera for enhanced visibility in tight spaces
4.5mm camera diameter for accessing narrow areas
Flexible, metal-braided cable for durability
5 adjustable LED lights for optimal illumination
Easy storage and sharing of images/videos via mobile app
IP67-rated protection for use in challenging environments
Rechargeable lithium-ion battery with 4-hour minimum runtime
Product identification
- Brand: PCE INSTRUMENTS
- Model / MPN: PCE-VE 500N
