Inspection camera details

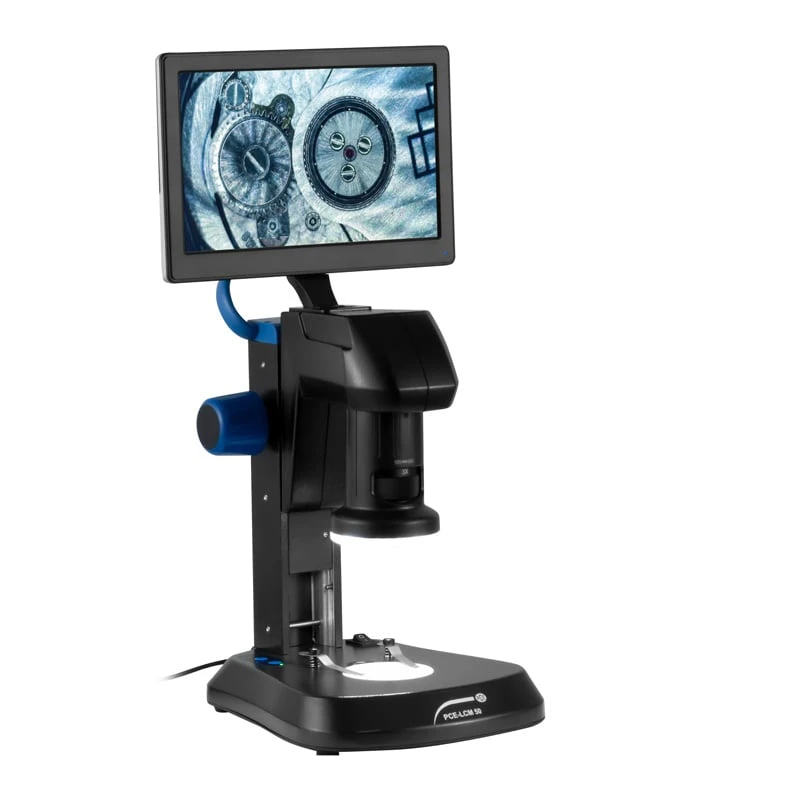

PCE Instruments Inspection Camera with Adjustable Zoom and LED Lighting (PCE-LCM 50)
PCE Instruments Inspection Camera (PCE-LCM 50) is designed for detailed analysis and imaging of small objects. Featuring adjustable zoom and LED lighting, this inspection camera enables precise visualization and documentation of samples. The user-friendly interface allows for easy image adjustments and direct saving to a micro SD card.
With a magnification factor between 8.1 and 32.4 times, the camera provides clear and sharp images. The integrated LED ring light ensures optimal illumination with adjustable brightness levels. The inspection camera is ideal for industrial, research, and laboratory applications.
Specifications and Dimensions
Optical Zoom: 8.1 … 32.4x
Optical Lens: 1 … 4x
Barlow Lens: 0.3x
Digital Zoom: 1 … 10x
Maximum Object Height: 4 cm
Fixed Working Distance: 90.5 mm
Image Sensor: 1/3", 3MP
White Balance: Automatic or manual
Display Resolution: 1024 x 600 pixels
Frame Rate: 30 fps
Pixel Size: 2.75 x 2.75 μm
Interface: USB 2.0
Power Supply: 100 … 240V (Primary), 12V, 1A (Secondary)
Reflected Light Illumination: Ring with 21 x 2-mA LEDs, 5 levels adjustable
Transmitted Light Illumination: 7 x 20-mA LEDs, 5 levels adjustable
Environmental Conditions: -5 … 40°C / 23 … 104°F, 45 … 85% RH
Dimensions: 300 x 225 x 270 mm / 11.8 x 8.9 x 10.6 in
Weight: 2.3 kg / 5.1 lbs
Key Features and Benefits
Adjustable optical magnification for detailed imaging
High-resolution 3MP image sensor for precise analysis
Integrated LED ring light with adjustable brightness
Supports photo and video recording for documentation
USB interface for easy data transfer
Digital zoom functionality up to 10x
Includes micro SD card for storing captured images
Automatic and manual white balance adjustments
Durable design with protective cover for long-term use
Product identification
- Brand: PCE INSTRUMENTS
- Model / MPN: PCE-LCM 50
