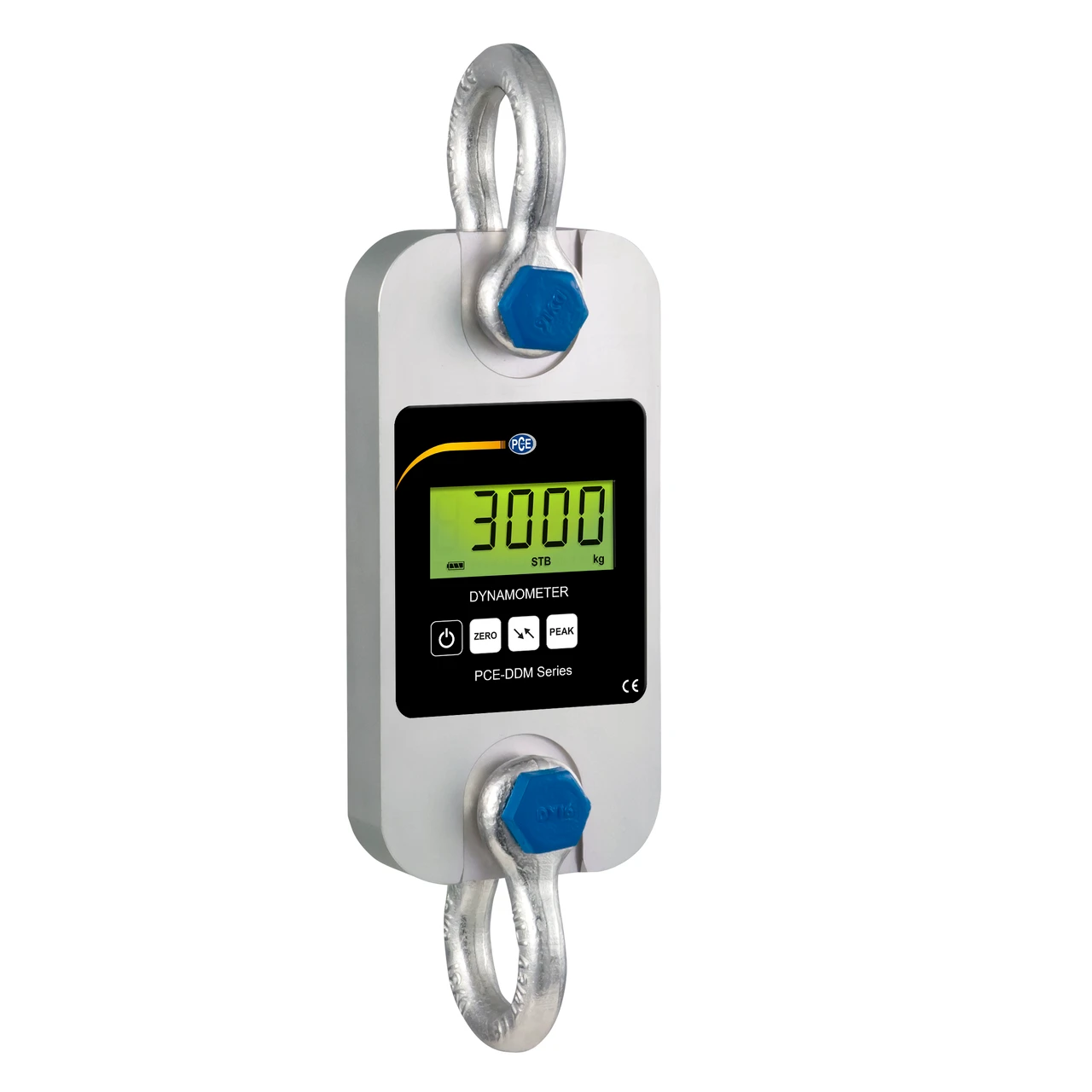

PCE Instruments Portable Crane Scale (PCE-DDM 3WI)
PCE Instruments Crane Scale (PCE-DDM 3WI) is designed for precise weighing of heavy loads up to 3,000 kg. This compact and portable device features a peak hold function, and summation function, and allows selection between multiple units of measurement such as kg, t, lbs, N, and kN.
With a durable aluminum build, this digital crane scale is ideal for industrial and commercial use. The package includes a protective carrying case and heavy-duty shackles for added security. Its long battery life and adjustable gravitation range ensure accurate results in various settings.
Specifications and Dimensions
Measuring range: 3,000 kg / 30 kN / 6,614 lbs
Resolution: 1 kg / 10 N / 2.2 lbs
Minimum range: 10 kg / 22 lbs
Weight (with shackle): 2 kg / 4.4 lbs (5 kg / 11 lbs)
Accuracy: ±0.1% of measurement range
Tare range: Max. 20% of measurement range
Display: LCD with 22 mm / 0.9 in digit height
Units of measurement: kg / t / lb / N / kN
Sampling rate: 2.5 Hz
Operating temperature: -10°C to +40°C / +14°F to +104°F
Power supply: 3 x 1.5 V AA batteries
Operating time: Approx. 50 hours
Key Features and Benefits
High capacity for weighing heavy loads
Compact and portable design for easy transport
Peak hold and summation functions for accurate readings
Selectable units of measurement for flexibility
Heavy-duty aluminum shackles and carrying case included
Long battery life ensures extended use
1 x PCE-DDM 3WI Crane Scale
1 x Carrying Case
3 x AA 1.5 V Batteries
Product identification
- Brand: PCE INSTRUMENTS
- Model / MPN: PCE-DDM 3WI
