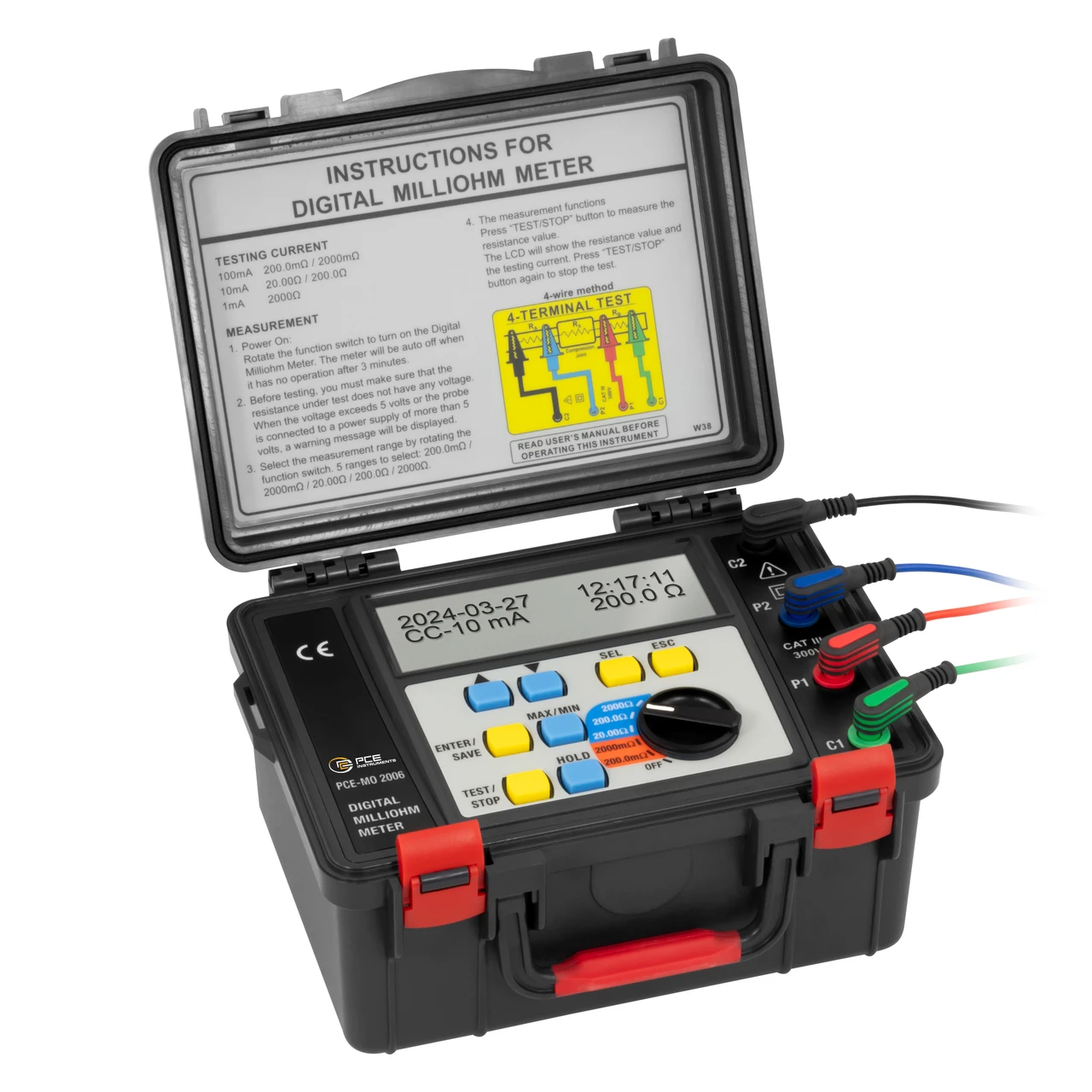

PCE Instruments Milliohmmeter (PCE-MO 2006)
PCE Instruments Milliohmmeter (PCE-MO 2006) is a high-precision measuring device designed for resistance testing in industrial applications. With a measurement range from 0 mΩ to 2000 Ω, it uses the 4-wire measurement method to ensure accurate readings by reducing errors caused by test lead resistance.
It includes an internal memory capable of storing up to 200 values, with additional functions like MAX/MIN/HOLD for monitoring critical resistance variations. Built with IP65 protection when the lid is closed, it is suitable for both laboratory and field environments.
Specifications and Dimensions
Measurement Ranges:
0 mΩ … 200 mΩ (Resolution: 0.1 mΩ, Accuracy: ±0.8% of reading)
0 mΩ … 2000 mΩ (Resolution: 1 mΩ, Accuracy: ±0.8% of reading)
0 Ω … 20 Ω (Resolution: 10 mΩ, Accuracy: ±0.8% of reading)
0 Ω … 200 Ω (Resolution: 0.1 Ω, Accuracy: ±0.8% of reading)
0 Ω … 2000 Ω (Resolution: 1 Ω, Accuracy: ±0.8% of reading)
Measurement Functions: MIN, MAX, HOLD
Display Type: LCD with backlight (5.1 inches)
Internal Memory: Stores up to 200 measurements
Measurement Method: 4-wire system
100 mA (200.0 mΩ / 2000 mΩ ranges)
10 mA (20.00 Ω / 200.0 Ω ranges)
1 mA (2000 Ω range)
Automatic Shutoff: After 3 minutes of inactivity
Safety Standard: CAT III 300V
Fuse Protection: 200 mA / 600 V
IP Rating: IP65 (with closed lid)
Power Supply: 8 x 1.5V LR14 batteries (Alkaline-manganese, 7000mAh)
Dimensions: 245 x 190 x 130 mm
Operating Conditions: 0 … 40°C, 0 … 80% RH
Key Features and Benefits
Highly accurate 4-wire measurement method minimizes errors
Five selectable resistance ranges for flexible testing
Large LCD with backlight for easy visibility in low-light conditions
Internal memory stores up to 200 readings for later analysis
MAX/MIN/HOLD functions for capturing critical resistance changes
Product identification
- Brand: PCE INSTRUMENTS
- Model / MPN: PCE-MO 2006
