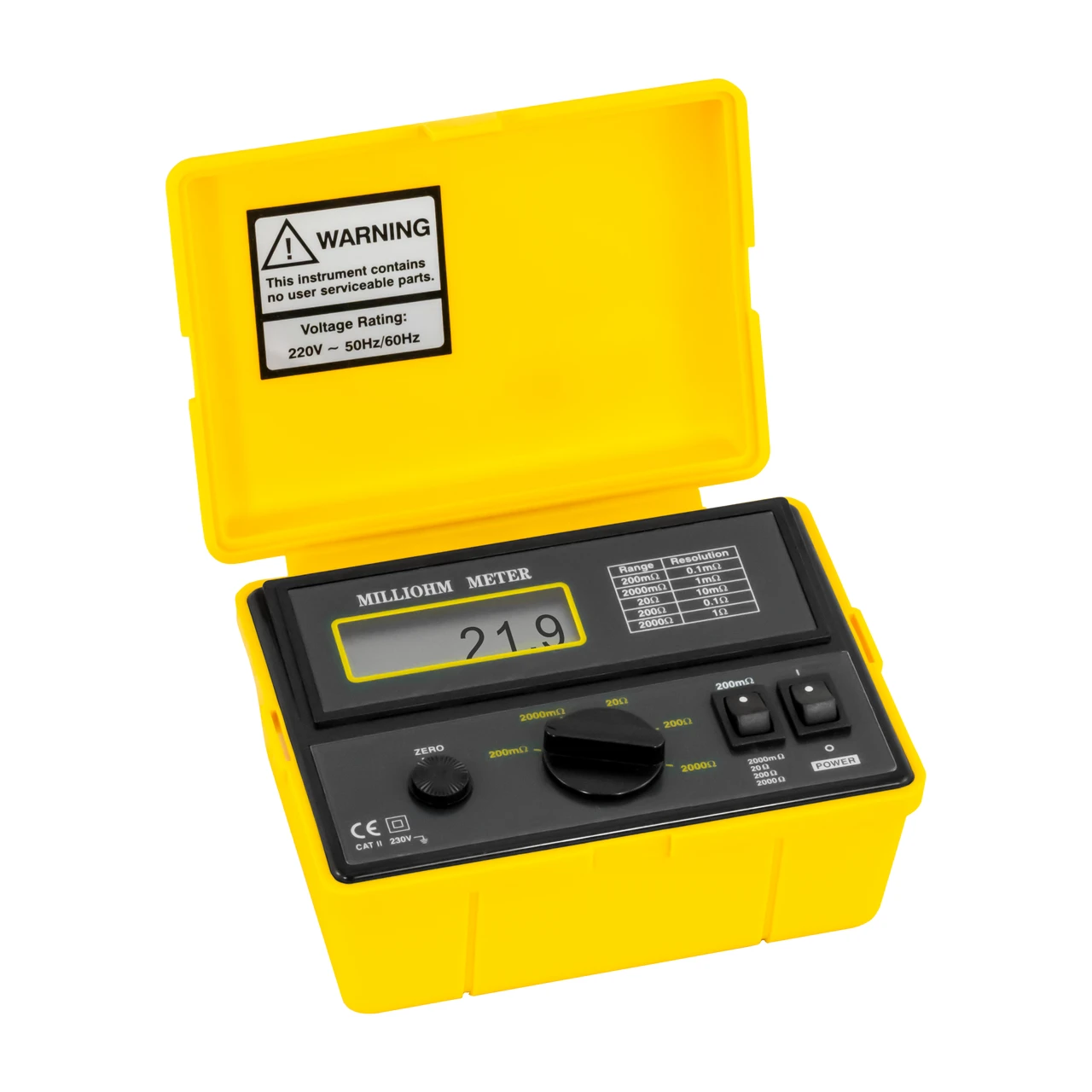

PCE Instruments Milliohmmeter (PCE-MO 2001)
PCE Instruments Milliohmmeter (PCE-MO 2001) is a precision device designed for measuring low electrical resistance with high accuracy. It features a large 3½-digit LCD that ensures clear and precise readings. With a wide measuring range from 100 μΩ to 2000 Ω, this milliohmmeter is ideal for applications such as testing engine coils, generators, transformers, and electrical connections in industrial and residential settings.
It operates with test currents up to 100 mA, ensuring accurate readings across different resistance ranges. This milliohm meter is perfect for troubleshooting and quality control in manufacturing, maintenance, and electrical testing environments.
Specifications and Dimensions
Measurement Ranges:
0 … 200 mΩ (Resolution: 100 μΩ)
0 … 2000 mΩ (Resolution: 1 mΩ)
0 … 20 Ω (Resolution: 10 mΩ)
0 … 200 Ω (Resolution: 100 mΩ)
0 … 2000 Ω (Resolution: 1 Ω)
Accuracy: ±0.75 % of reading + 4 digits (up to 20 Ω), ±0.75 % of reading + 2 digits (above 20 Ω)
1 mA for 2000 Ω / 200 Ω range
10 mA for 20 Ω / 2 Ω range
100 mA for 200 mΩ range
Measurement Speed: ~0.4 s per reading
Overload Indicator: Displays "1" in case of overload
Zero Reset: Manual adjustment via rotary wheel (±50)
Power Supply: 230/110 VAC, 50/60 Hz
Safety Standard: IEC-1010-1; CAT II 20V
Dimensions: 250 x 180 x 200 mm
Test Cable Length: 50 cm (between plug and gripper)
Key Features and Benefits
Measures low electrical resistance with high precision
Large LCD for easy reading of measurements
Test currents up to 100 mA ensure accurate readings
Water-resistant housing for durability in industrial environments
1 x PCE-MO 2001 Milliohmmeter
1 x Set of Testing Cables
1 x AC Power Cable
Product identification
- Brand: PCE INSTRUMENTS
- Model / MPN: PCE-MO 2001
