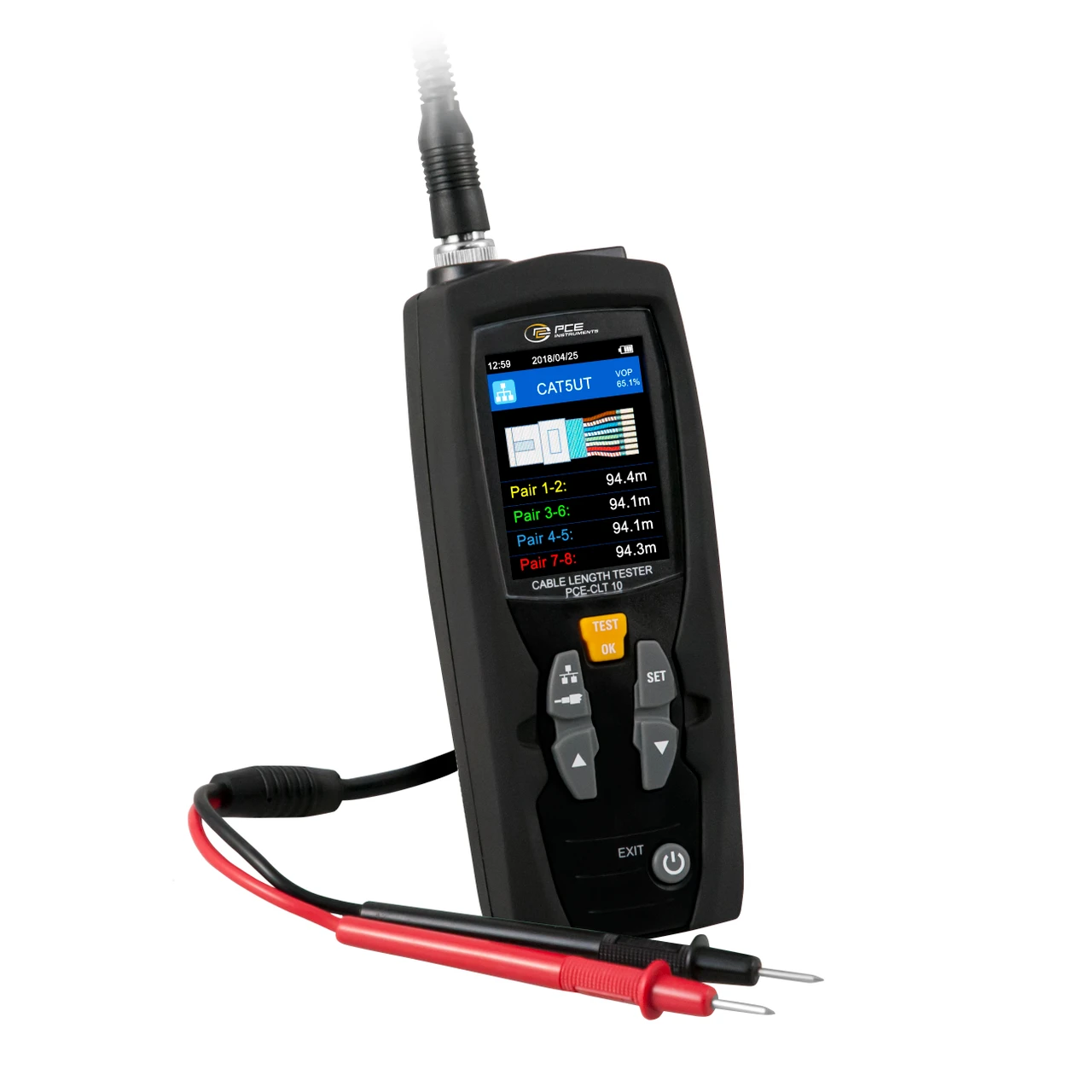

PCE Instruments Digital Electrical Tester (PCE-CLT 10)
PCE Instruments Digital Electrical Tester (PCE-CLT 10) is designed for fast and accurate cable length measurements using time domain reflectometry. With a range of up to 3000 meters (9842.5 ft), this tester provides precise readings for various cable types. The integrated 2.4" TFT display ensures clear visibility, while the adjustable automatic shutdown function enhances battery life.
Ideal for professionals, the digital cable length tester features 20 pre-set cable types and the ability to store up to 99 additional custom cable profiles.
Specifications and Dimensions
Measuring Range: 5 – 3000 m (16.4 – 9842.5 ft)
Resolution: 0.1 m
Measurement Principle: Time domain reflectometer
Impedance Selector: Automatic output of impedance control
Shortening Factor / Propagation Speed: Adjustable 1.0 – 99.9%
Memory Capacity: 99 slots for individual cables
Pre-Set Cable Types: 20 standard cables
Connector Type: BNC, RJ45, and alligator clips
Power Supply: 2 x 1.5V AA battery
Battery Status Indicator: Yes
Automatic Shutdown: Adjustable between 10 and 60 minutes
Menu Languages: German, English
Operating Temperature: 0 – 40°C (32 – 104°F)
Storage Temperature: -10 – 50°C (14 – 122°F)
Relative Humidity: 0 – 80% RH
Display: 2.4" TFT color screen
Key Features and Benefits
Measures cable lengths up to 3000 m (9842.5 ft) with high accuracy
Supports 20 pre-set cable types with storage for 99 user-defined profiles
2.4" TFT display with backlighting for clear readings
Automatic shutdown feature to extend battery life
Compact and lightweight design for easy handling
Compliant with industry-standard testing procedures
1 x Electrical Tester PCE-CLT 10
2 x Alligator Clips
2 x AA Batteries (1.5V)
1 x Transport Bag
Product identification
- Brand: PCE INSTRUMENTS
- Model / MPN: PCE-CLT 10
