Lisle Master Relay & Fused Circuit Test Kit (69300)
Lisle Master Relay & Fused Circuit Test Kit (69300) is a comprehensive toolkit designed to simplify the testing of relays and live circuits in vehicles. It includes a variety of tools and components to make the diagnostic process efficient and accurate.

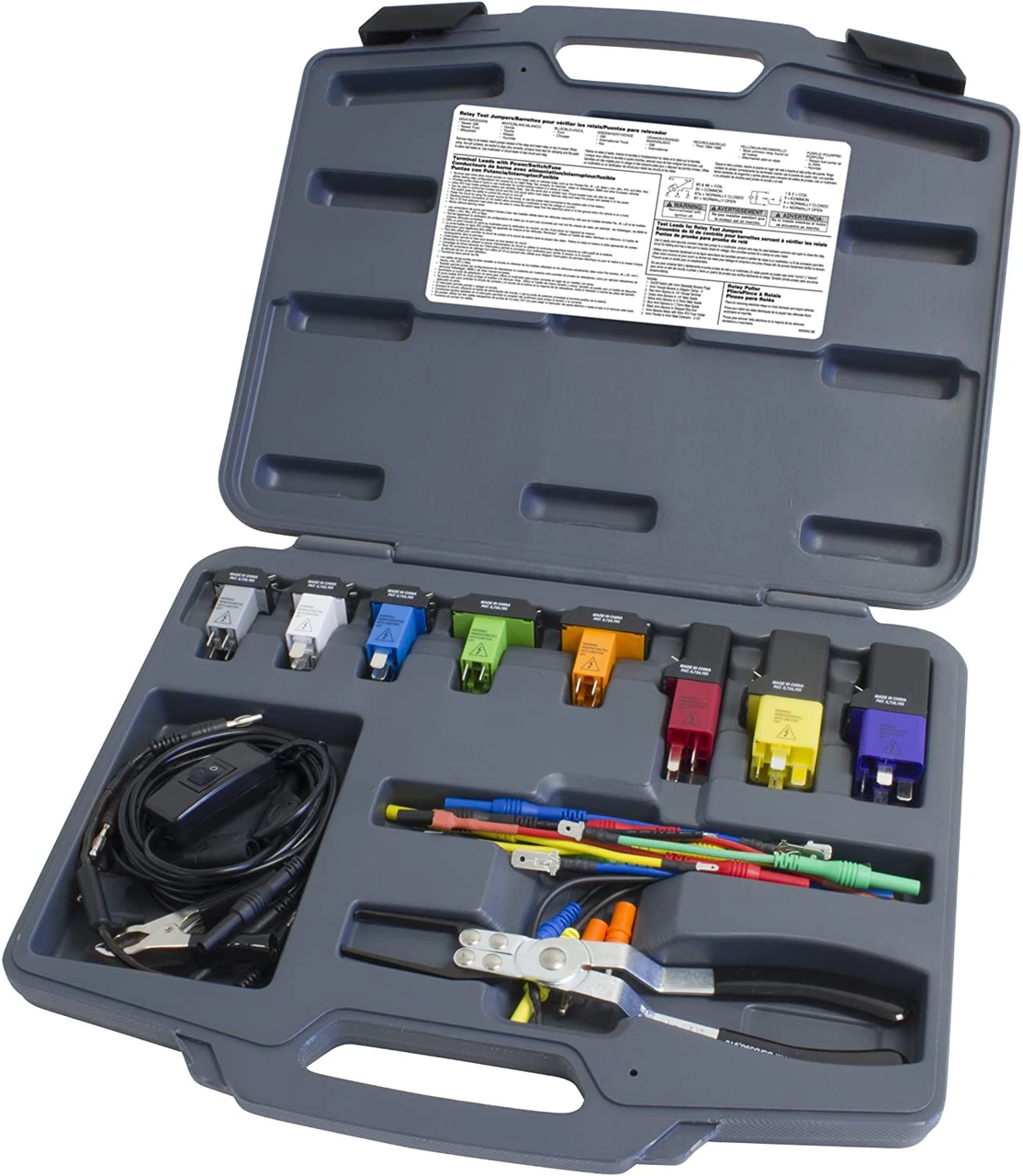

KEY FEATURES AND BENEFITS:
Relay Test Jumpers: Easily connect to a multimeter for testing.
Test Lead Kit: Securely connects relay jumpers to a multimeter.
Terminal Leads: Check current or voltage on fuses and relays.
Relay Puller Pliers: Easily remove electrical relays.
Non-invasive Testing: Avoids wire piercing for safe operation.
Includes: 8 relay jumpers.
Compatibility: Compatible with most popular relay types.
Vehicle Range: Works with a wide range of vehicles.
Durability: Durable construction for long-lasting use.

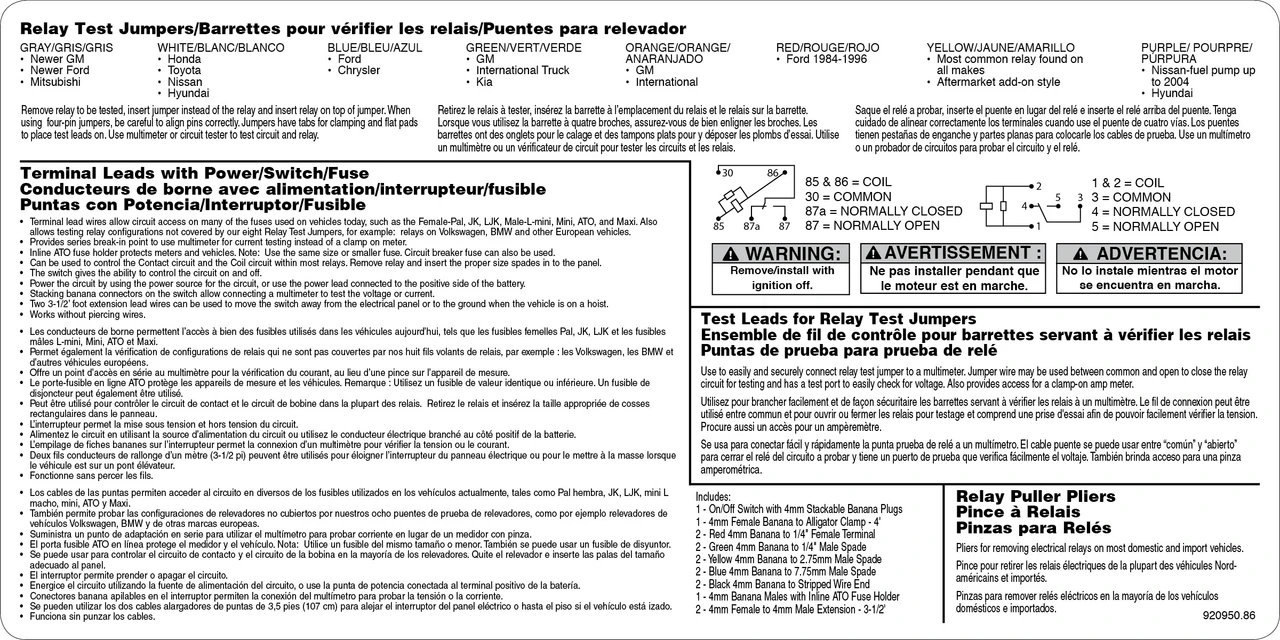

Identify the Relay: Locate the relay you want to test.

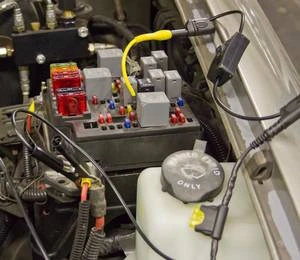

Connect the Jumper: Use the appropriate relay jumper to connect to the relay terminals.
Attach Test Leads: Connect the test leads from the multimeter to the relay jumper.
Power On: Turn on the vehicle or power source.
Check Readings: Use the multimeter to measure voltage or current as needed.
Remove Jumper: Disconnect the relay jumper and test leads.
BENEFITS OF USING LISLE MASTER RELAY & FUSED CIRCUIT TEST KIT (69300):
Efficient Testing: Quickly diagnose electrical issues.
Versatile Tool Kit: Suitable for various vehicle models.
Safe Operation: Non-invasive testing method.
Easy to Use: Straightforward design and instructions.
Durable Construction: Built to last.
Comprehensive Tool Kit: Includes all necessary components.
Easy-to-Read Instructions: Clear guidance for testing procedures.
High-Quality Construction: Ensures reliability and durability.
Time-Saving Design: Streamlines the diagnostic process.
Safe and Efficient Testing: Minimizes risk of damage to vehicle components.
Product identification
- Brand: Lisle
- Model / MPN: 69300
