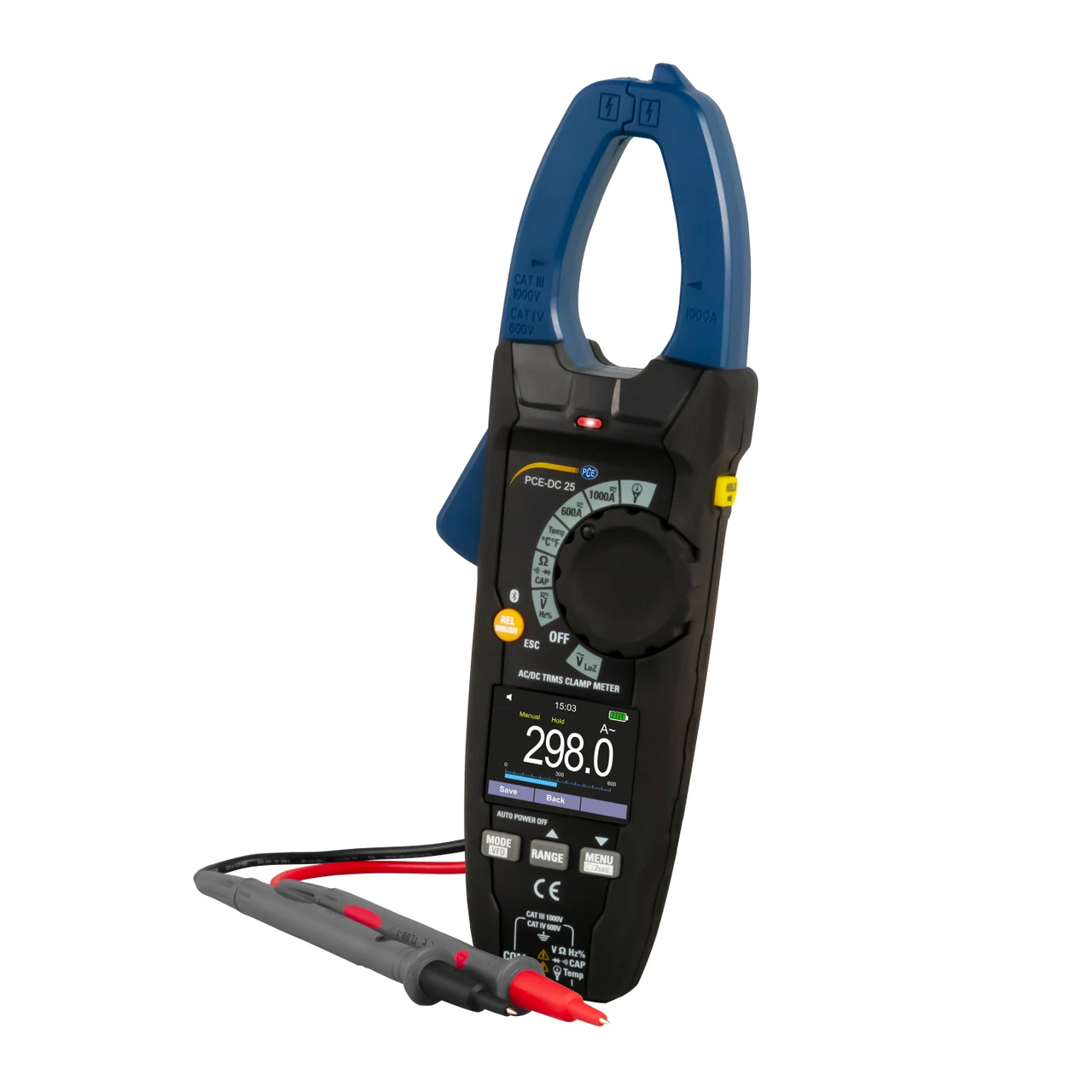

PCE Instruments Digital Clamp Meter (PCE-DC 25)
PCE Instruments Digital Clamp Meter (PCE-DC 25) is a versatile measuring tool for electrical testing. With a measuring range of 0…1000 A AC/DC, it allows non-contact current measurement using an inductive clamp. The device also supports voltage, resistance, and temperature measurements.
Equipped with a Bluetooth interface, the clamp meter connects to Android and iOS devices for real-time data monitoring. Additional features include inrush current measurement, a non-contact voltage (NCV) function for quick electrical checks, and a color LCD for easy reading of measurement values.
Specifications and Dimensions
Current Measurement: 0…1000 A AC/DC
Voltage Measurement: 0…1000 V AC/DC
Clamp Opening: 34 mm (1.3 in)
Resistance: 0…60 MΩ
Frequency Measurement: 9.999 Hz…99.99 kHz
Capacitance: 60.00 nF…100.0 mF
Temperature Measurement: -40°C…1000°C (-40°F…1800°F) (Type K Thermocouple)
NCV Function: Detects voltage >150 V AC
Display: LC color screen
Bluetooth Interface: Yes, for Android & iOS
Overvoltage Protection: 1000 V AC/DC
Power Supply: 3 x 1.5V AAA batteries
Auto Power Off: Adjustable (15, 30, 45, 60 min)
Dimensions: 250 x 80 x 40 mm (9.8 x 3.1 x 1.5 in)
Weight: 365 g (12.8 oz)
Key Features and Benefits
Measures AC/DC current, voltage, resistance, frequency, and capacitance
Bluetooth connectivity for real-time monitoring via Android and iOS devices
Non-contact voltage (NCV) function for quick electrical safety checks
Inrush current measurement for detecting startup surges in motors
Optional Rogowski coil available to extend current measurement up to 3000 A AC
1 x Clamp Meter PCE-DC 25
1 x Pair of test leads
1 x Type K thermocouple
1 x Thermocouple adapter
3 x 1.5V AAA batteries
1 x Transport bag
1 x Instruction manual
Product identification
- Brand: PCE INSTRUMENTS
- Model / MPN: PCE-DC 25
Digital clamp meter: see the listed specifications for this model.
