Ac/dc clamp meter details

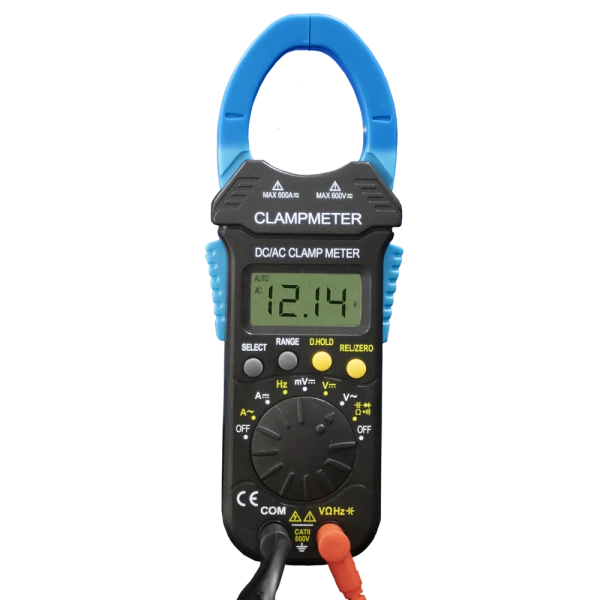

Aims Power Digital Clamp Meter Auto Range Dc/Ac 600V True Rms (CLAMPMETER)

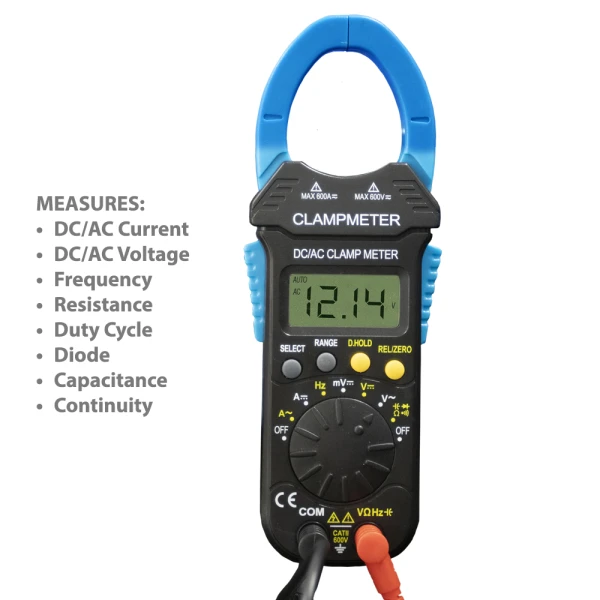

The AIMS Power clamp meter precisely and safely measures your wires, cables or any conductor within an electrical application. It is easily used and operated to measure live conductors without causing damage or loss of power. The digital clamp meter measures DC/AC Current, DC/AC Voltage, Frequency, Resistance, Duty Cycle, Diode, Capacitance and Continuity.
Easy to read display, audible warnings and the LCD is backlit with built-in auto power off to save battery life.
Spacious jaw opening, allowing touchless measuring of current without interrupting power.
Over-range indication
Celsius/Fahrenheit
Data hold for convenience
CAT II 600V and Pollution Degree 2
Auto range: 0-600A & 600V
Resistance open voltage @0.55V
Overload protection: 250V DC/AC RMS
Uses Qty 2 AAA batteries (included)

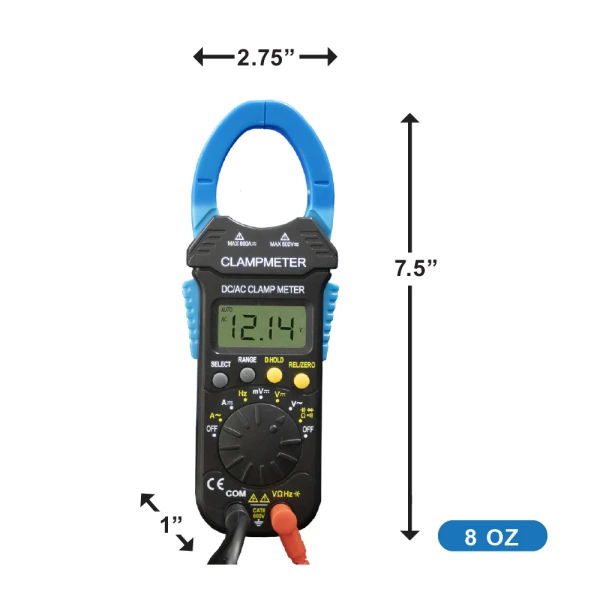

Clamp open jaw dimension: 1.58″ max
Case, leads and batteries included
Product identification
- Brand: Aims Power
- Model / MPN: CLAMPMETER
Digital clamp meter: see the listed specifications for this model.
