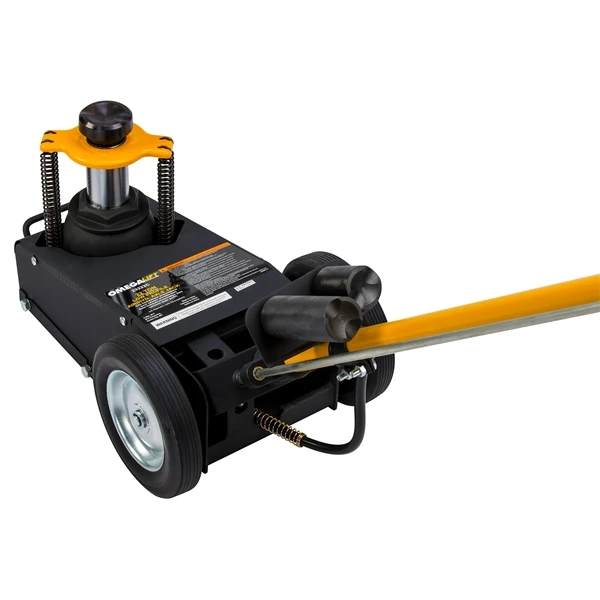

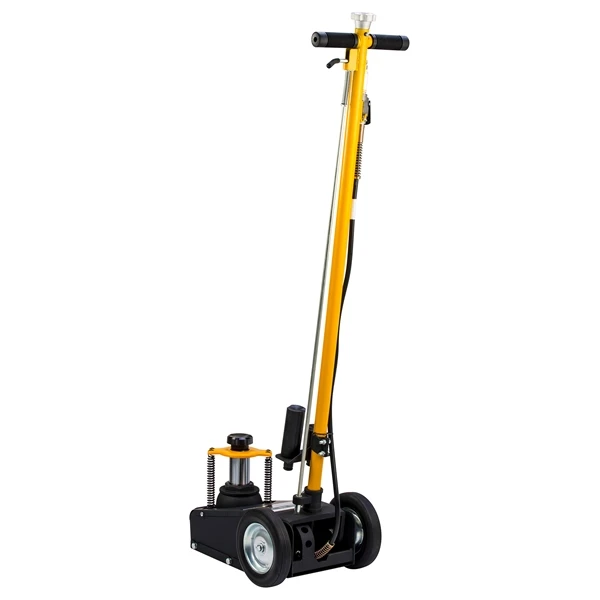

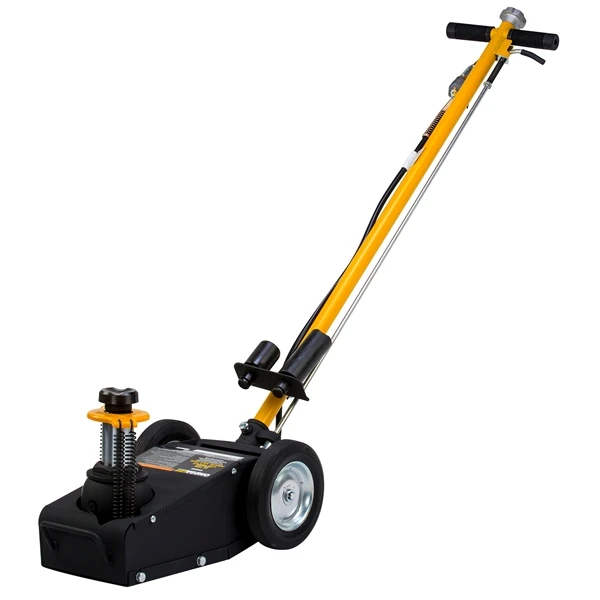

Omega Air Axle Jack – Black, 22 Ton Capacity (23222C)
Lifting Trucks and Trailers with Ease
Omega 23222C Axle Jack is a 22 Ton air actuated hydraulic truck jack that is equipped with the high speed air turbo motor to raise the load to the desired height efficiently, effortless safely. With in-line air filter, it traps contaminates and protects air motor for longer life.
Omega 23222C Truck Jack features sturdy one piece handle assembly with the fingertip remote control. It also gives you a choice of three handle angles – 90-degrees, 45-degrees or 0-degree for easy access.
You also find the large steel and rubber wheels to give you the easy positioning and smooth motion. Its self – returning spring minimizes operators effort, and greatly reducing fatigue.
As always, Omega 23222C Truck Jack features the built-in bypass device to protect hydraulic system from over pumping damage.
In addition, there is the heat treated extension screw that allows you to pick up height adjustment and maximum lift height.
– Equipped High Speed Air Turbo Motor
– Built-In Bypass Device & One Piece Handle Assembly
– Large Steel and Rubber Wheels & Self-Returning Spring
– High Speed Air Turbo Motor
– Heat Treated Extension Screw
– In Line Air Filter
– Capacity: 22 Ton
– Min. Height: 8-1/2"
– Max. Height: 22"
– Handle Length: 47-3/8"
– Jack Size: 21-1/2" x 12-1/2"
Product identification
- Brand: Omega
- Model / MPN: 23222C
