Launch scan tool x431 details

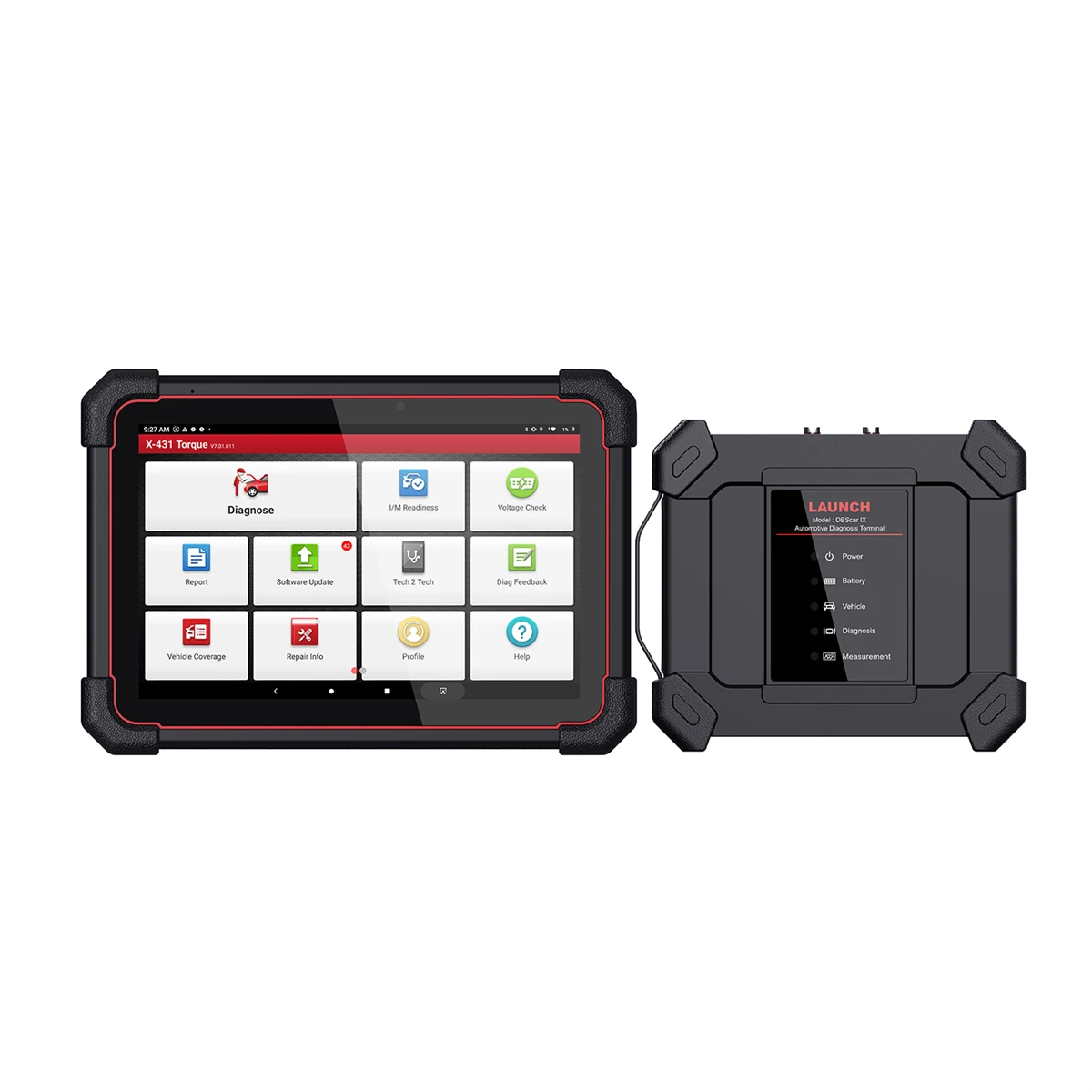

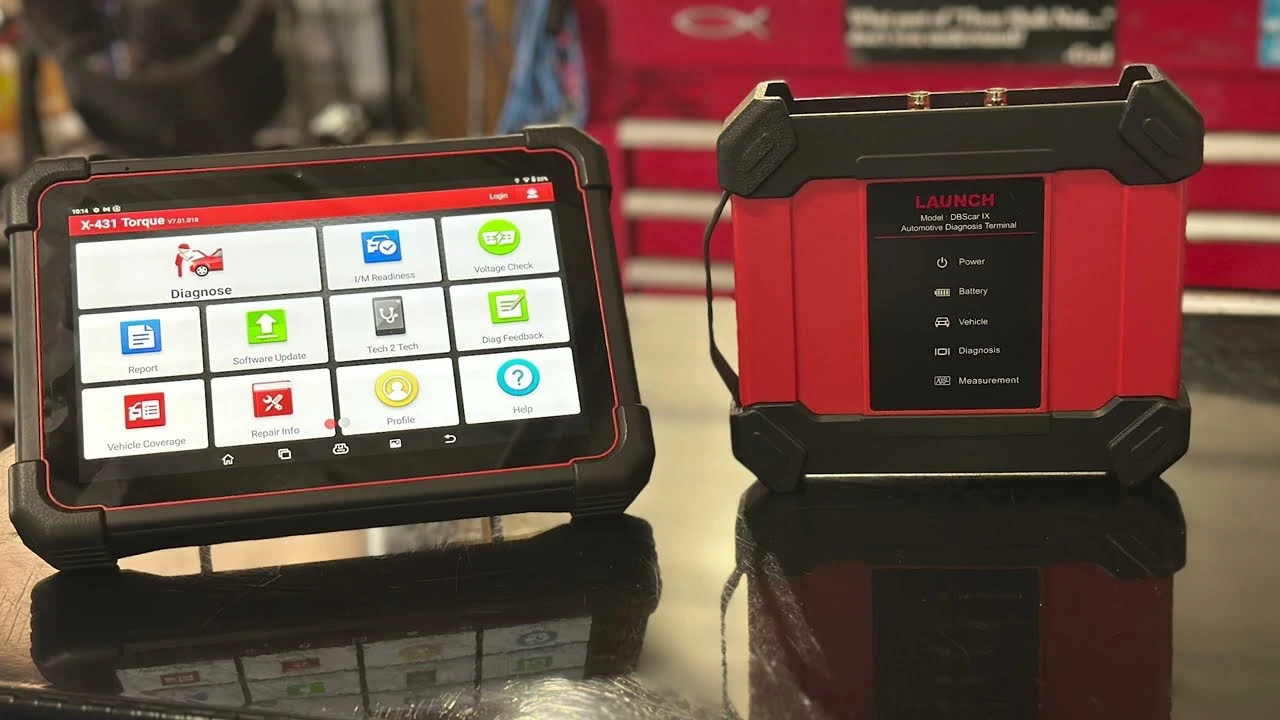

Launch USA X-431 Torque 5 Advanced Diagnostic Scan Tool (301190794)
The Torque 5 is equipped with advanced capabilities such as bi-directional control, remote diagnostics, and supports the latest vehicle protocols like CAN FD and DoIP, making it a powerhouse for modern automotive diagnostics.
Specifications and Dimensions:
Operating System: Android 10.0
CPU: 2.0 GHz Quad-core processor
Display: 10.1-inch touch screen, 1280*800 resolution
Storage: 128GB ROM
Camera: Front 5 MP, Rear 8 MP
Operating Temperature: 0��C~50��C
Storage Temperature: -20��C~70��C
Dimensions: 274 x 190 x 40.5 mm / 10.79 x 7.48 x 1.59 inches
Full system diagnostics with support for all major vehicle systems
Wireless connectivity via dual-band 5G & 2.4G, USB Type C and A interfaces
Advanced vehicle protocol support including Doip and CAN FD
Integration with X431 Fix repair information and Code Assist Database by Identifix
Equipped with a 2-channel oscilloscope and multimeter functions
Enhances diagnostic accuracy and speed with powerful processing and a high-resolution display
Facilitates a wide range of diagnostic tasks with extensive vehicle coverage from 1996 onwards
X-431 Torque 5 tablet
HD15F to OBDII 16 male integrated test connector
HDB15F to HDB15F test main line (with DC)
X431 DBSCAR IX diagnostic connector
Needle Set (Colored 4mm Female+20 needle+2 screw head)
Crocodile clips (black and red)
Multimeter probes (black and red)
Universal PIN envelope
Product identification
- Brand: Launch
- Model / MPN: 301190794
Launch scan tool usa: see the listed specifications for this model.
