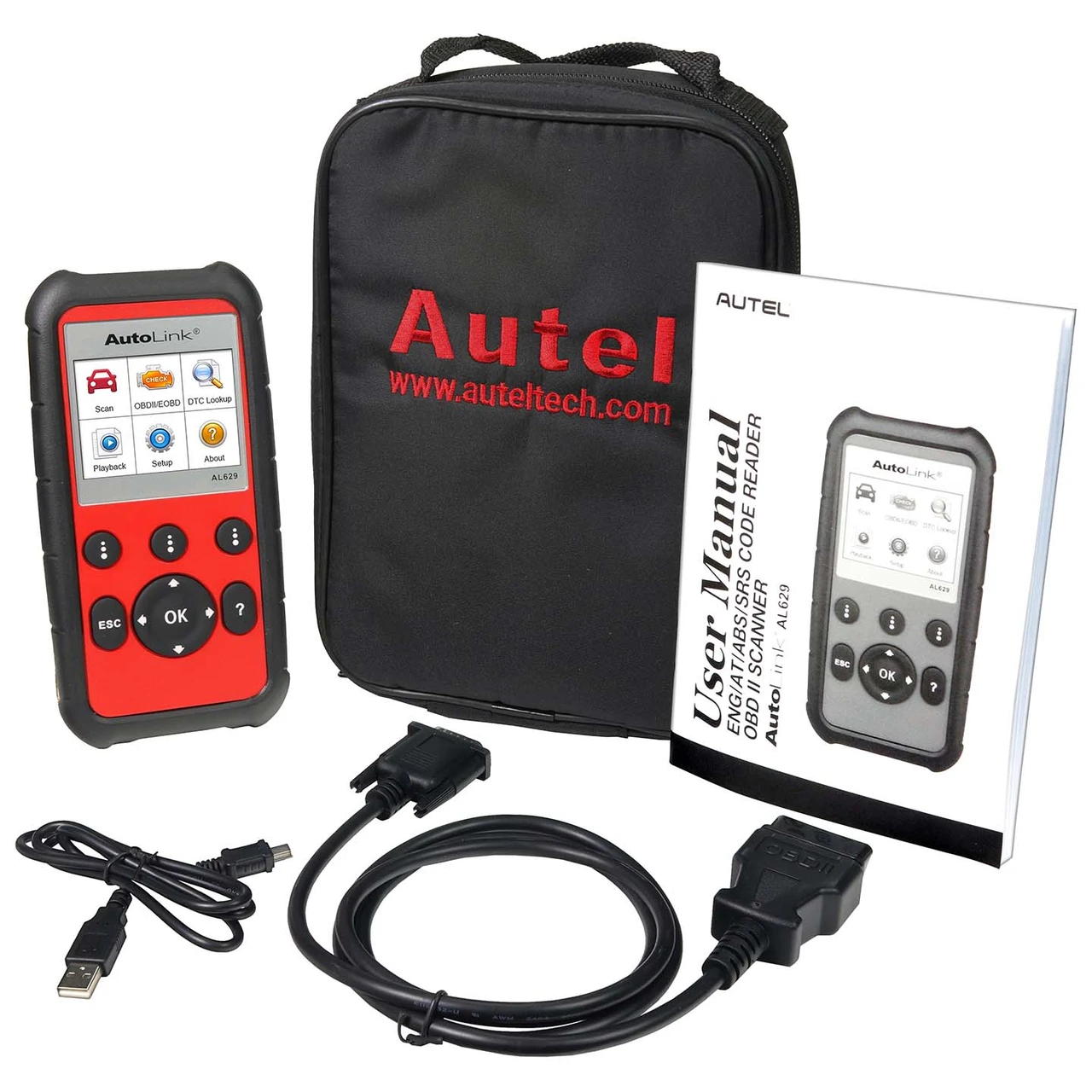

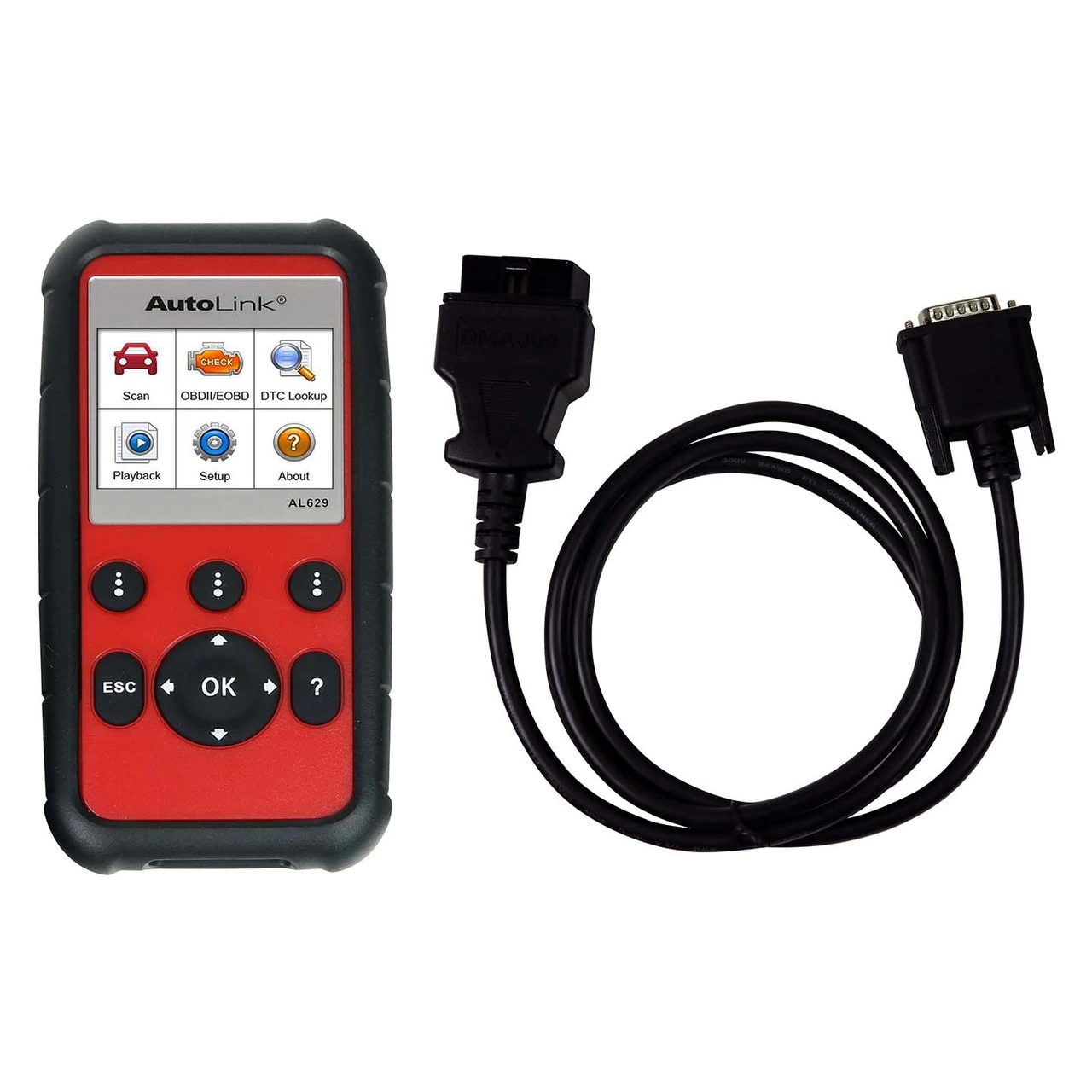

Autel AL629 AutoLink ABS/SRS/Engine/Transmission + CAN OBDII Pro Service Tool
Reads and erases DTCs for ABS, SRS, Engine and Transmission on most 1996 and newer major vehicle models
Works on most 1996 and newer vehicles (OBDII & CAN) – domestic and import
Retrieves generic (P0, P2, P3, and U0), manufacturer specific (P1, P3, and U1) codes and pending codes
Turns off Check Engine Light (MIL), clears codes and resets monitors
Reads, stores and plays back live PCM data stream and live sensor data
Retrieves vehicle information (VIN, CALID and CVN)
Views freeze frame data
TF memory card for data backup and software update
Multilingual support – English, Spanish, French, etc.
8’’ LCD with 320X240 resolution
Internet updatable via USB
Prints data via PC
Display: 2.8-inch LCD (320 x 240 dpi)
Connectivity: USB mini 2.0 OBD II DB15
Operating Temp.: -10°C to 60°C (14°F to 140°F)
Storage Temp.: -20°C to 70°C (-4°F to 158°F)
External Power: 8.0 to 18.0 V power provided via vehicle battery
Dimensions (LxWxH): 182.8 mm (7.2”) x 90.9 mm (3.6”) x 33.2 mm (1.3”)
Net Weight: 247 g (0.544 lb.)
Quick Reference Guide
Product Information
Autel AL629 Manual
Product identification
- Brand: Autel
- Model / MPN: AL629
