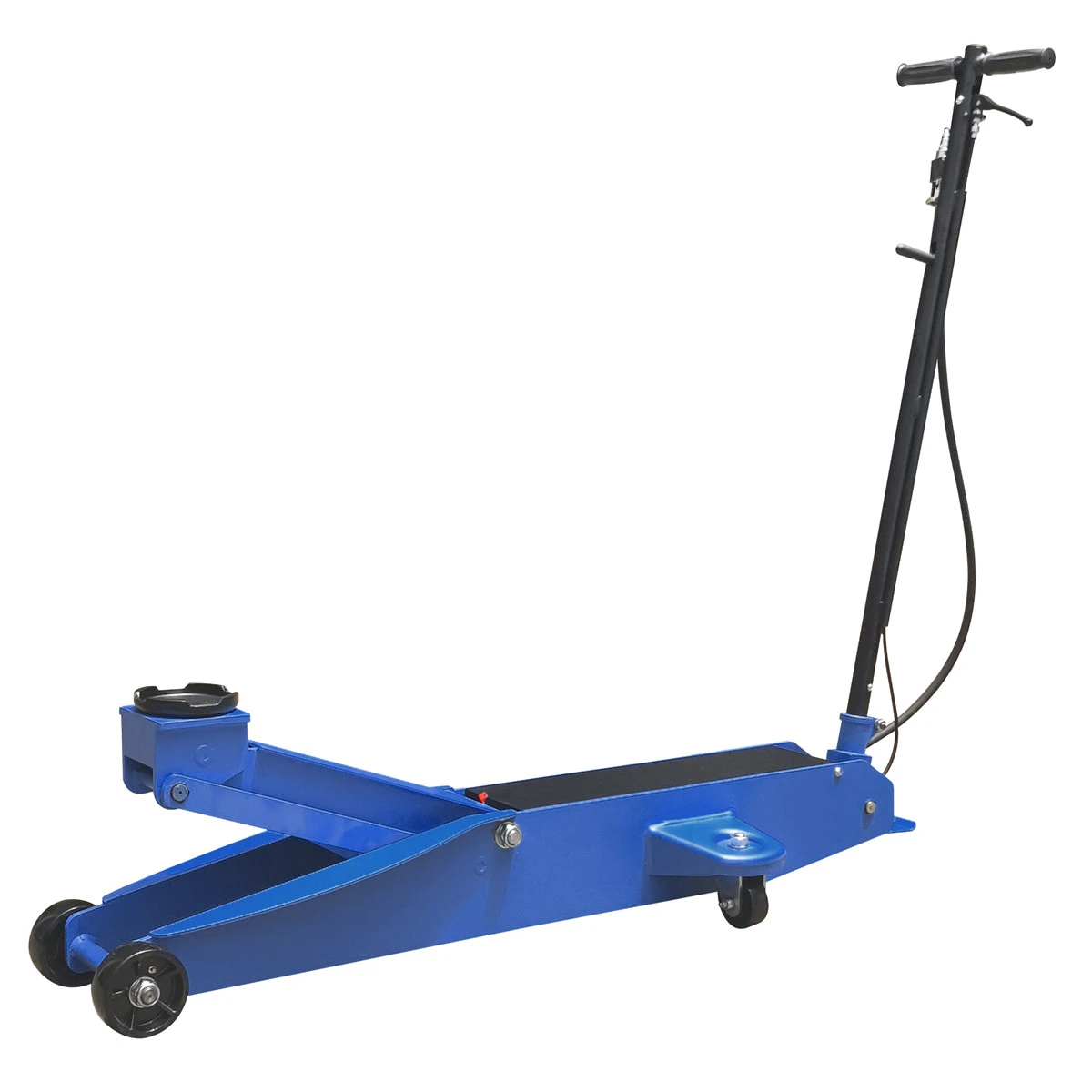

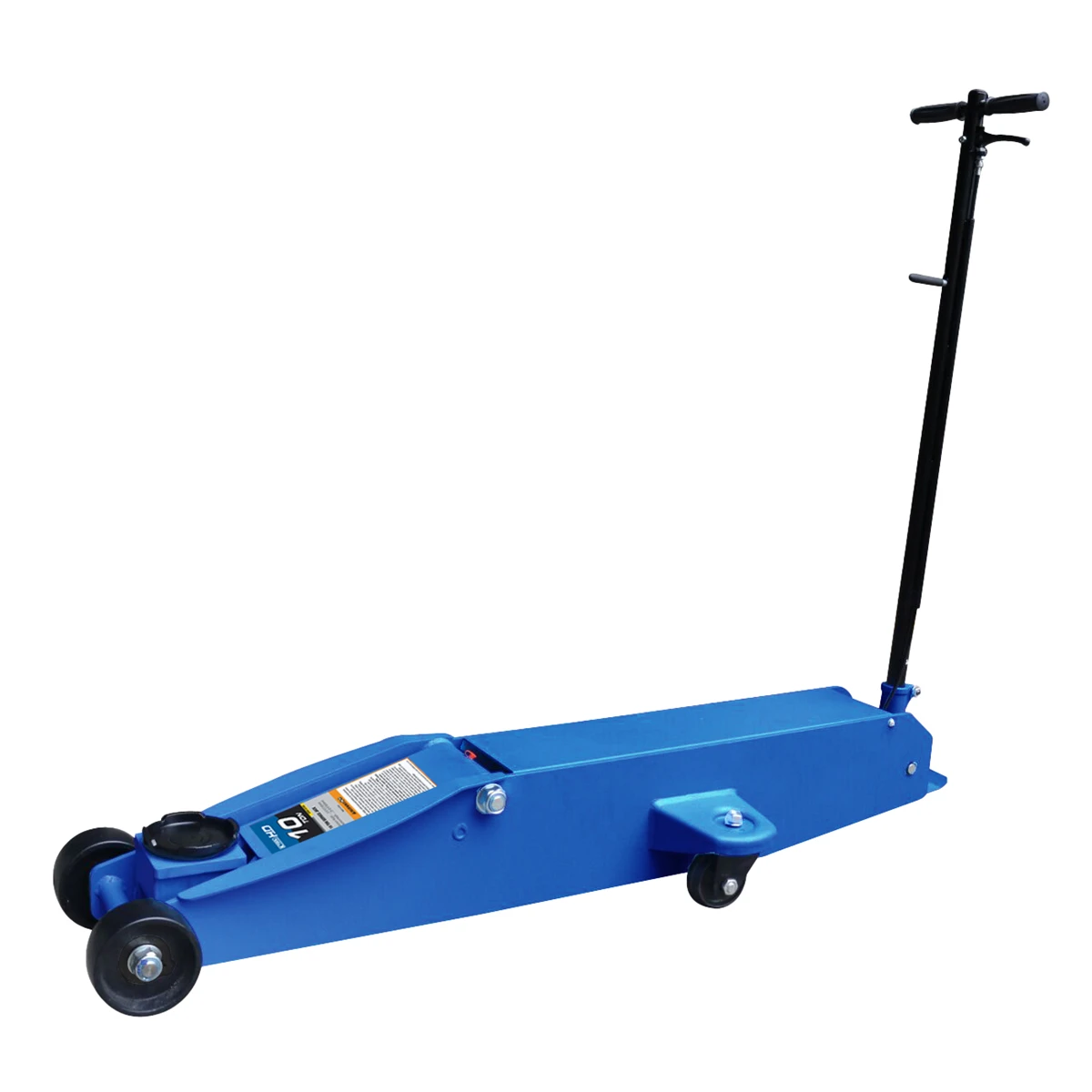

K Tool International 10 Ton Service Jack HD with Foot Pedal (HJ5525)
The K Tool International Service Jack 10 Ton Long Chassis HD (KTIHD63186A) is engineered for heavy-duty hydraulic performance in commercial garages and fleet maintenance. Its wide stance and low center of gravity provide exceptional stability under load. With a 10-ton lifting capacity, this long chassis jack features a low profile of 6-5/16" and a maximum height of 25-9/16", making it ideal for high-clearance vehicles. Built from heavy-gauge steel for long-term durability, it includes a fast-lift system that reaches full height in just five pumps under load.
Low profile: 6-5/16" (160mm) minimum height
Max lifting height: 25-9/16" (650mm)
Fast-lift system: reaches full height in 5 pumps
Heavy-duty steel frame for strength and stability

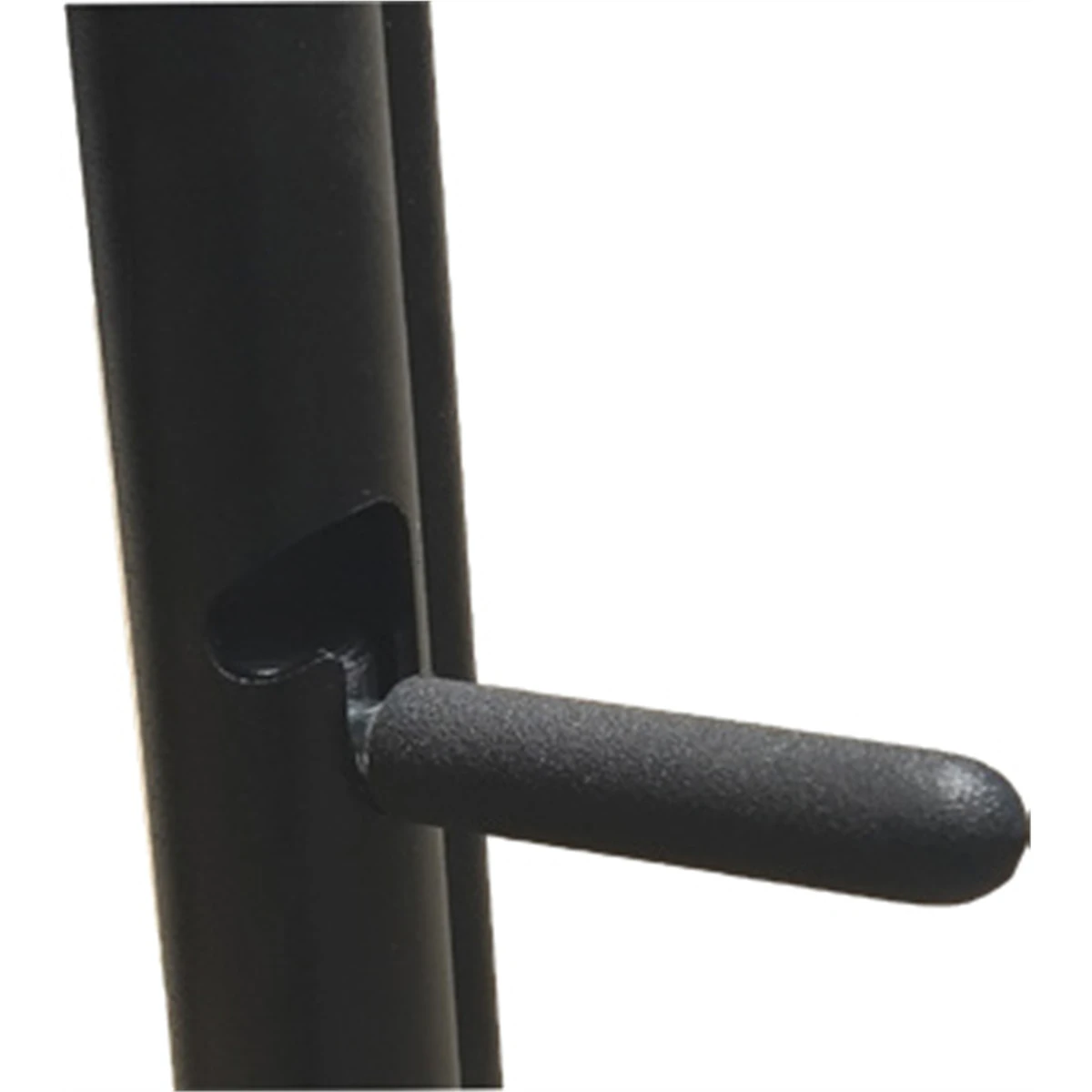

Three-position locking handle for better control
Built-in bypass valve prevents ram over-extension

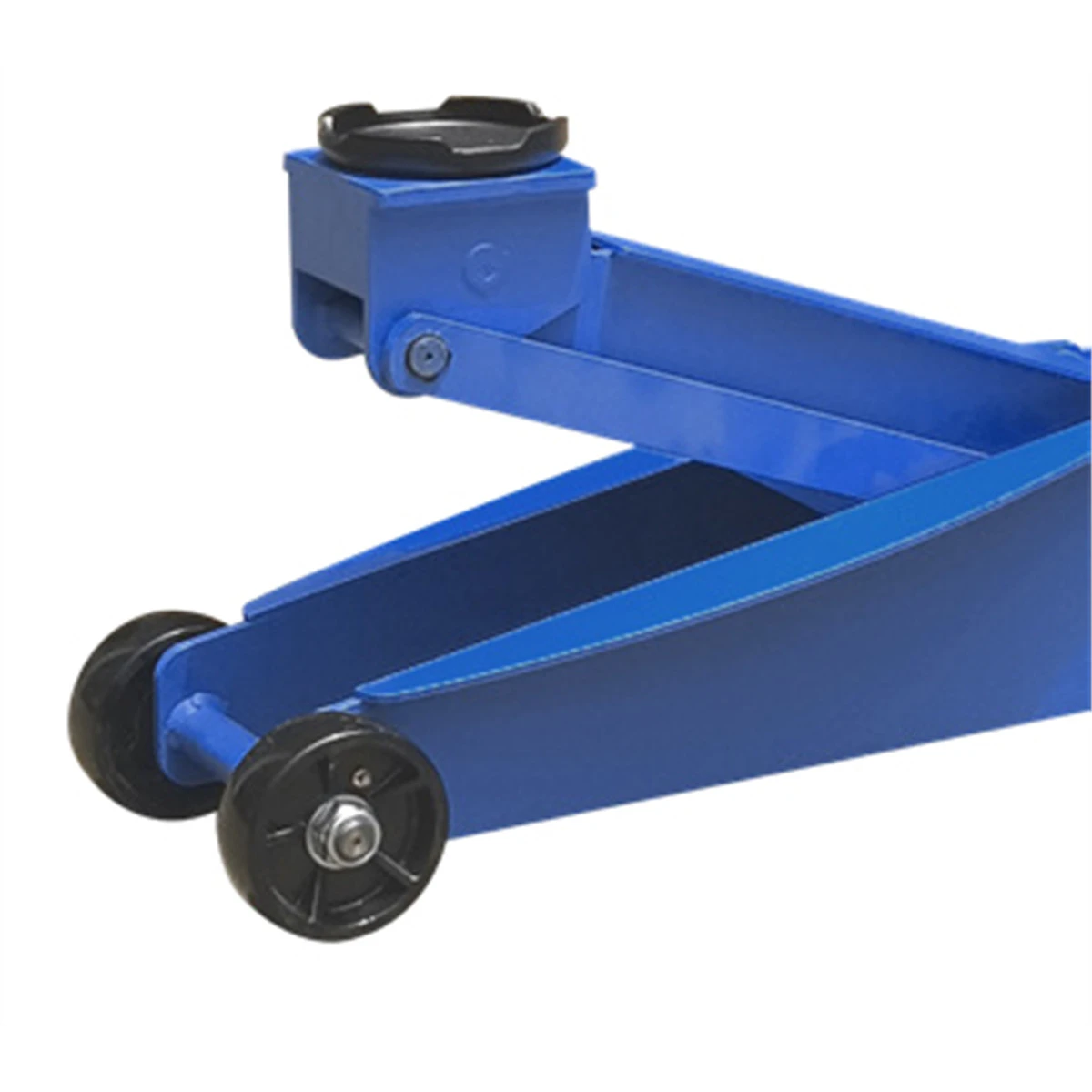

Swivel rear casters for easy positioning
Meets or exceeds ASME PASE 2019 safety standards
Ideal for fleet garages and heavy-duty vehicle servicing
Stable operation under load thanks to wide, low-profile design
Fast lifting reduces setup time and increases efficiency
Durable construction withstands high-demand use
Enhanced operator safety with bypass valve and lockable handle
Technical Specifications:
Brand: K Tool International
Product Code: KTIHD63186A
Capacity: 10 Ton
Minimum Height: 6-5/16" (160mm)
Maximum Height: 25-9/16" (650mm)
Ram Stroke: 16-5/16" (490mm)
Construction: Heavy-gauge steel
Weight: 307.1 lbs (139.6 kg)
Compliance: ASME PASE 2019
Product identification
- Brand: K Tool
- Model / MPN: HJ5525
