Air jack details

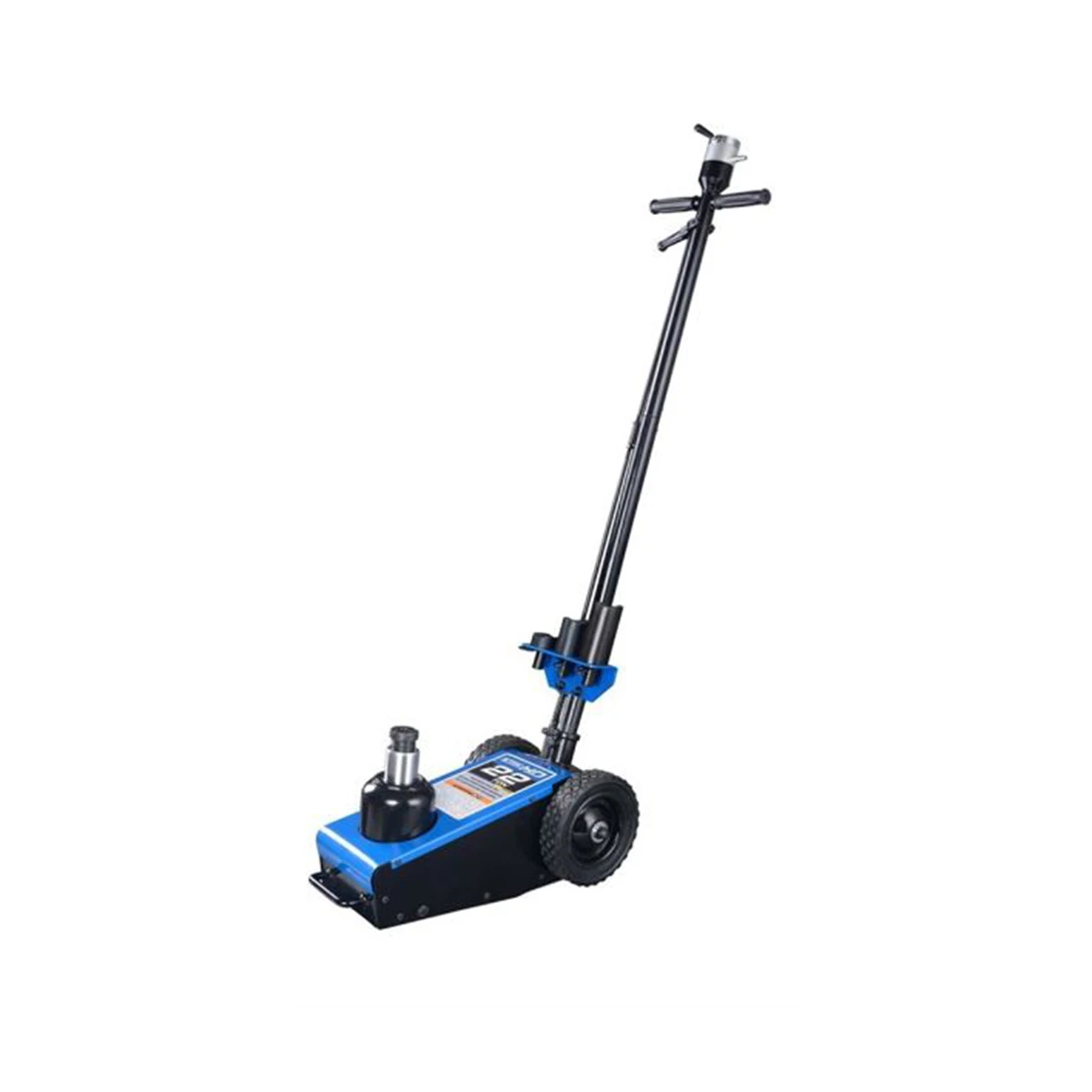

K Tool 22-Ton Air Hydraulic Truck Jack with Bypass Valves (63194)
The K Tool International 22 Ton Automotive Air Truck Jack (63197) is designed for garages, repair shops, and DIY use. With a 44,000 lbs. capacity and a hydraulic lift range of 8.67" to 13.5", this heavy-duty jack is ideal for lifting large vehicles like trucks and buses. It features a RAM wiper seal for system protection and a welded pump for leak prevention. Powered by 100–120 PSI pneumatic pressure, this durable jack ensures reliable performance in demanding conditions.
22-ton capacity lifts vehicles up to 44,000 lbs.
Hydraulic lift range of 8.67" to 13.5" with 4.7" ram travel

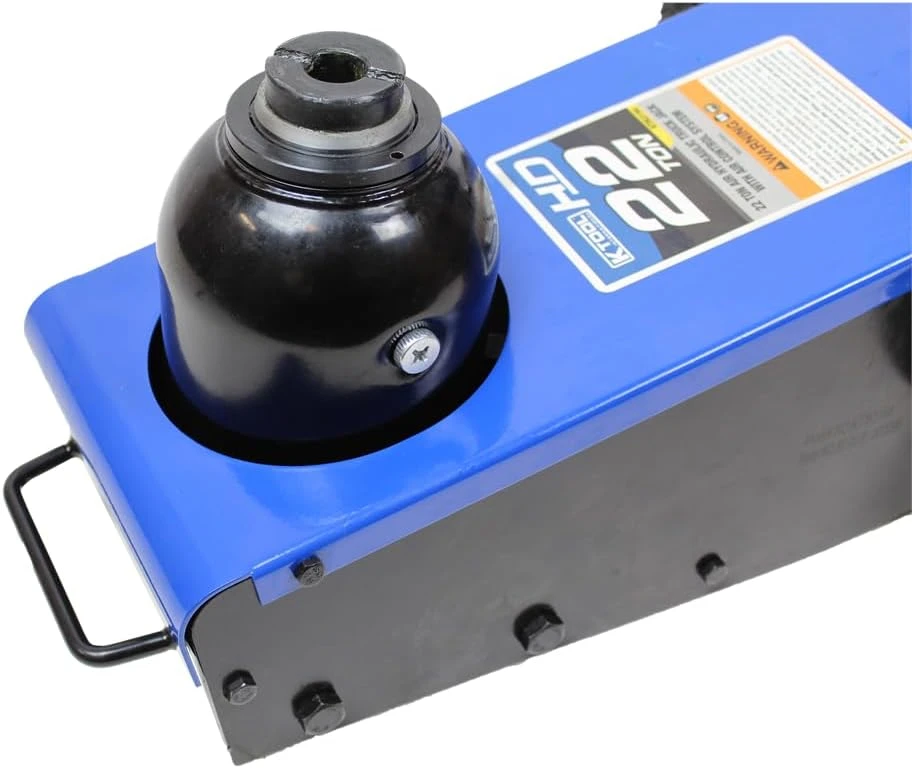

Durable RAM wiper seal protects against contaminants
Welded pump construction minimizes leaks and enhances longevity
Pneumatic air operation with 100–120 PSI for effortless lifting
Ideal for garages, commercial shops, and heavy-duty vehicle maintenance
Narrow width fits easily between tandem wheels
Bypass valves prevent overload and ram overextension

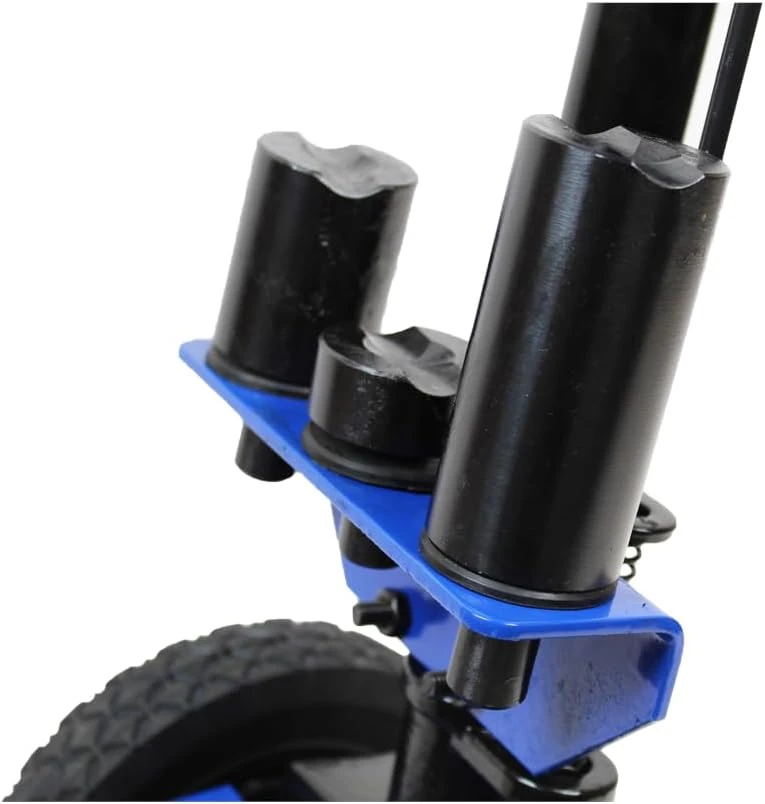

Includes 3-piece extension set and storage rack
Technical Specifications:
Load Capacity: 22 tons
Lift Range: 8.67"–13.5"
Ram Travel: 4.7"; Extension Screw Travel: 4"
Operating Pressure: 100–120 PSI
Dimensions: 27 x 15 x 11 inches
Model Number: 63197
UPC: 769622631978
Manufacturer: K Tool International
Country of Origin: China
Product identification
- Brand: K Tool
- Model / MPN: 63194
