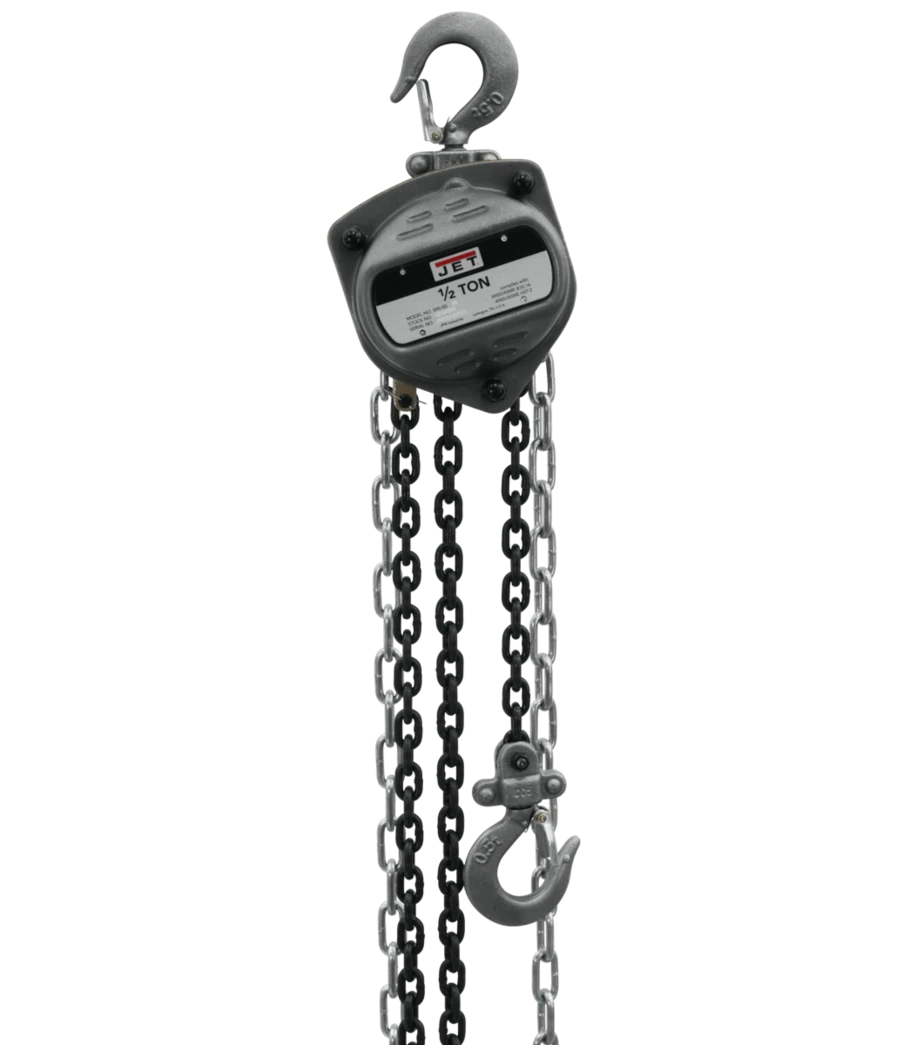

Jet S90-050-30 1/2-Ton Chain Hoist With 30 Foot Lift (101903)
The Jet S90-050-30 1/2-Ton Chain Hoist With 30 Foot Lift (101903) is a 1/2-ton hand chain hoist designed for efficient and safe lifting in light-duty industrial settings. Built with durability and reliability in mind, this hoist is perfect for contractors and various applications requiring a dependable lifting solution.
KEY FEATURES AND BENEFITS:
Safety: Equipped with a Weston-style dual pawl brake system for secure load holding and alloy steel hooks for added safety.
Durability: Features needle bearing design for smooth operation and extended lifespan, along with heat-treated load plates for resistance to harsh environments.
Efficiency: Compact design ideal for low headroom areas and confined spaces. Grade 80 load chain ensures strength and reliability.
Ease of Use: Simple operation with a geared hand chain for smooth lifting.
Capacity: 1/2 ton (1102 lbs)
Lift Height: 30 feet
Load Chain Diameter: 5 mm
Required hand chain to lift load 1': 32 feet
Required pull to lift capacity: 49 lbs
Dimensions: 6.7" H x 7.3" W x 10.9" L
Inspect the hoist: Before each use, check for any signs of damage or wear.
Attach the load: Securely hook the load chain to the load and the hoist hook to a secure overhead point.
Operate the hand chain: Pull the hand chain to lift the load and lower it by releasing the chain.
Secure the load: Once the load is in position, ensure it is securely supported before releasing the hand chain.
Lower the load: Carefully lower the load by releasing the hand chain.
BENEFITS OF USING JET S90-050-30 1/2-TON CHAIN HOIST WITH 30 FOOT LIFT (101903):
Increased productivity: Efficient lifting saves time and effort.
Improved safety: Safety features protect both operators and loads.
Cost-effective: Durable construction and easy maintenance reduce long-term costs.
Versatility: Suitable for various light-duty industrial applications.
Weston-style dual pawl brake system
Alloy steel hooks
Needle bearing design
Heat-treated load plates
Grade 80 load chain
All-steel construction
Product identification
- Brand: Jet
- Model / MPN: 101903
