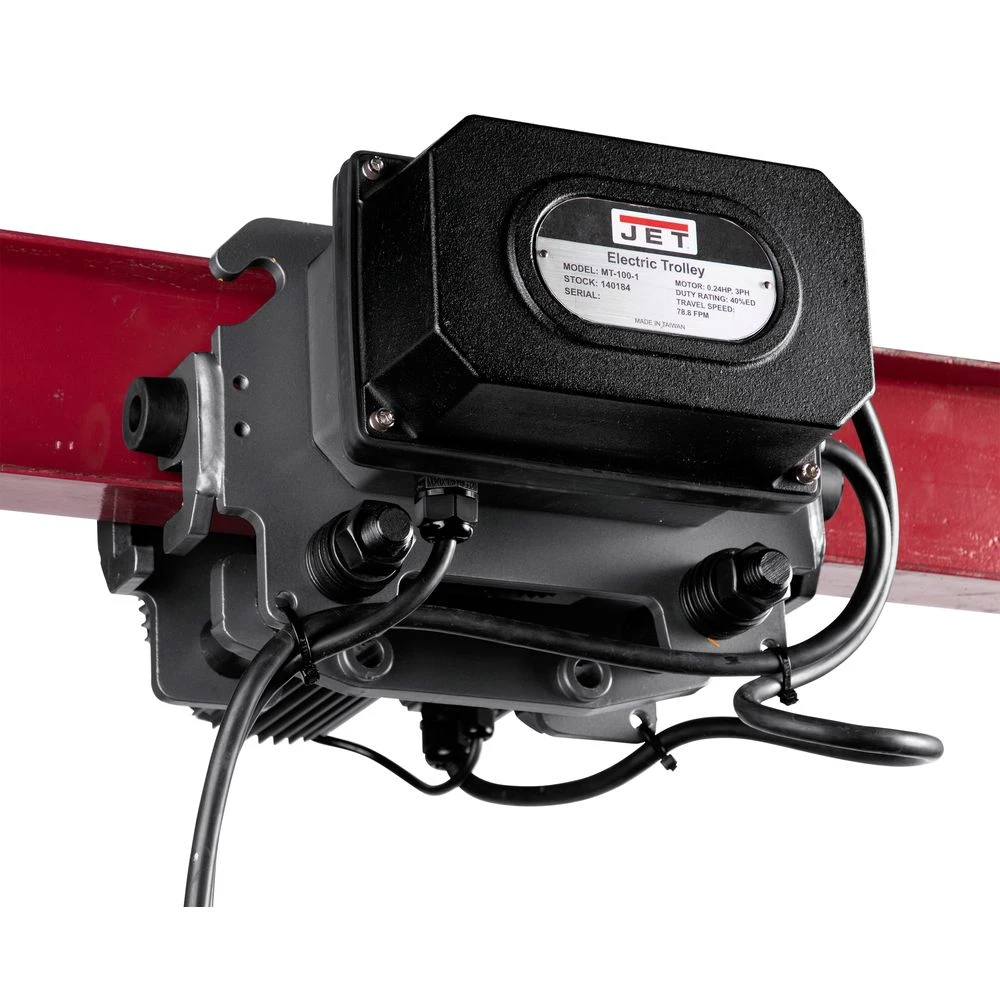

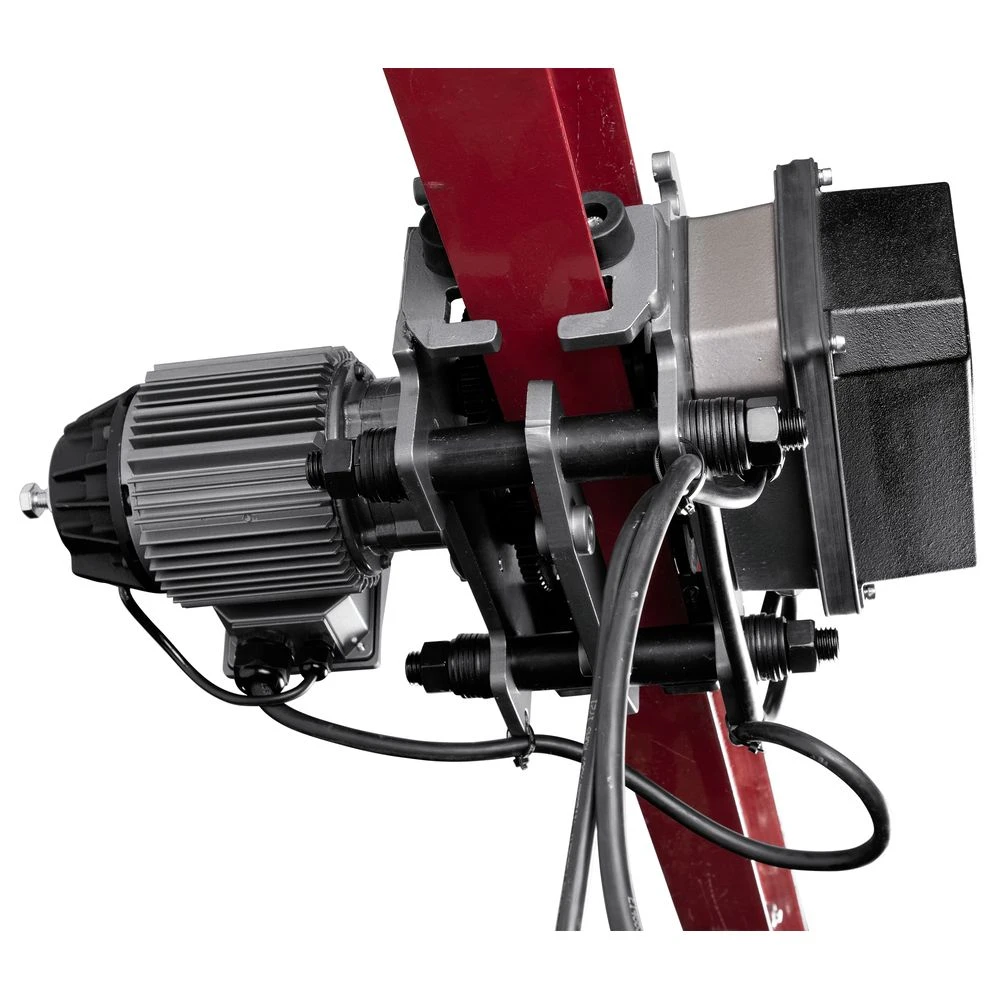

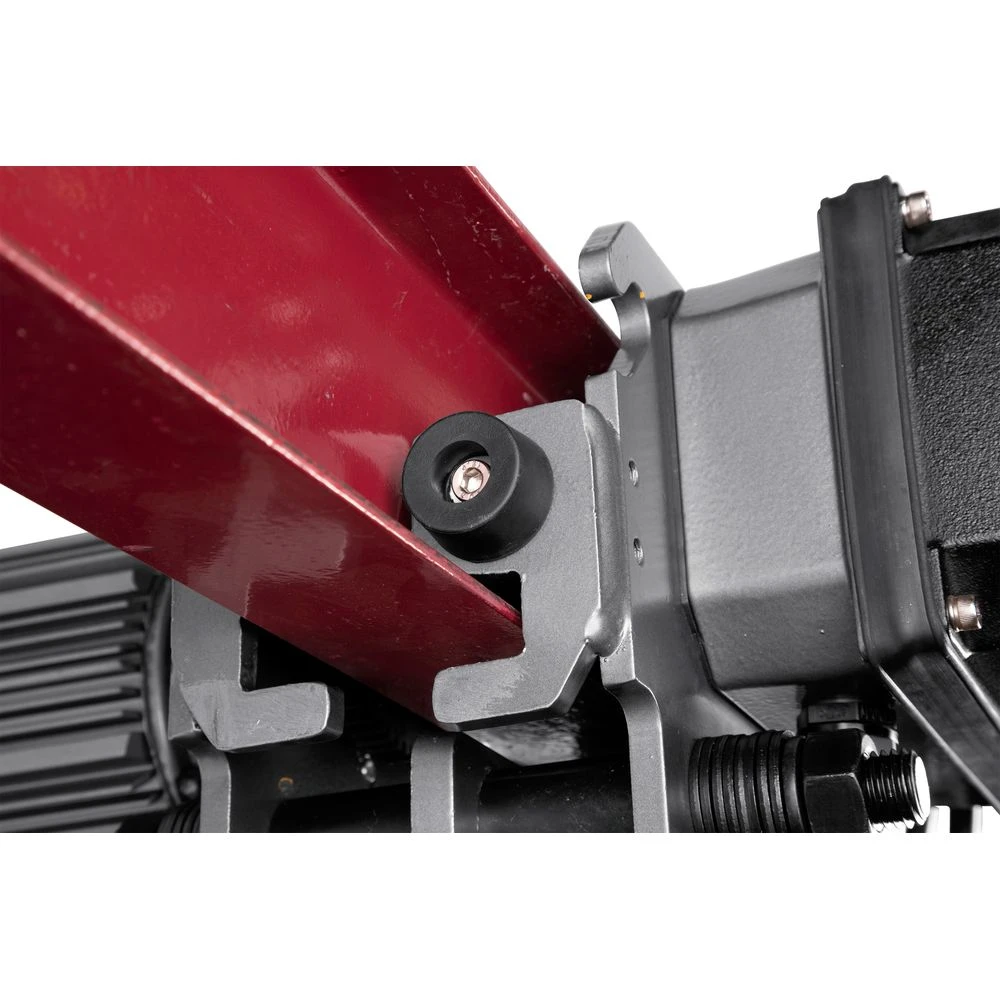

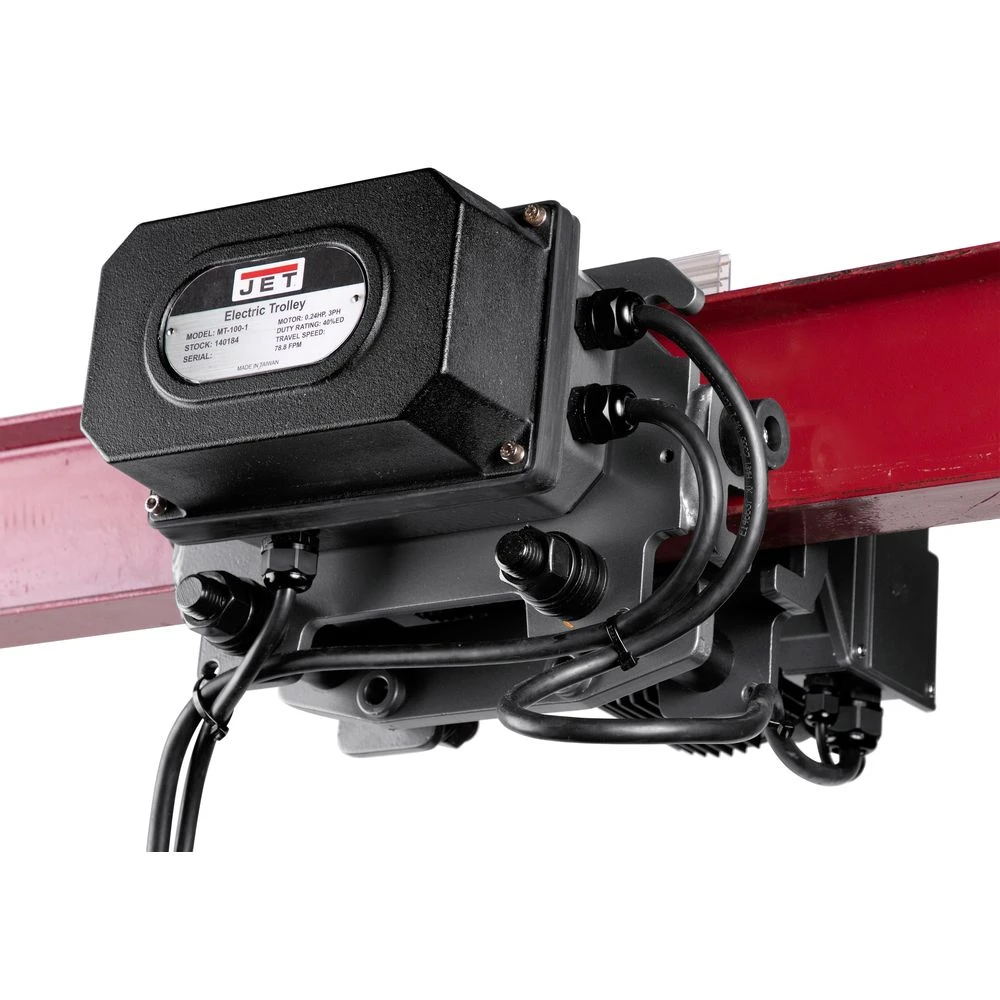

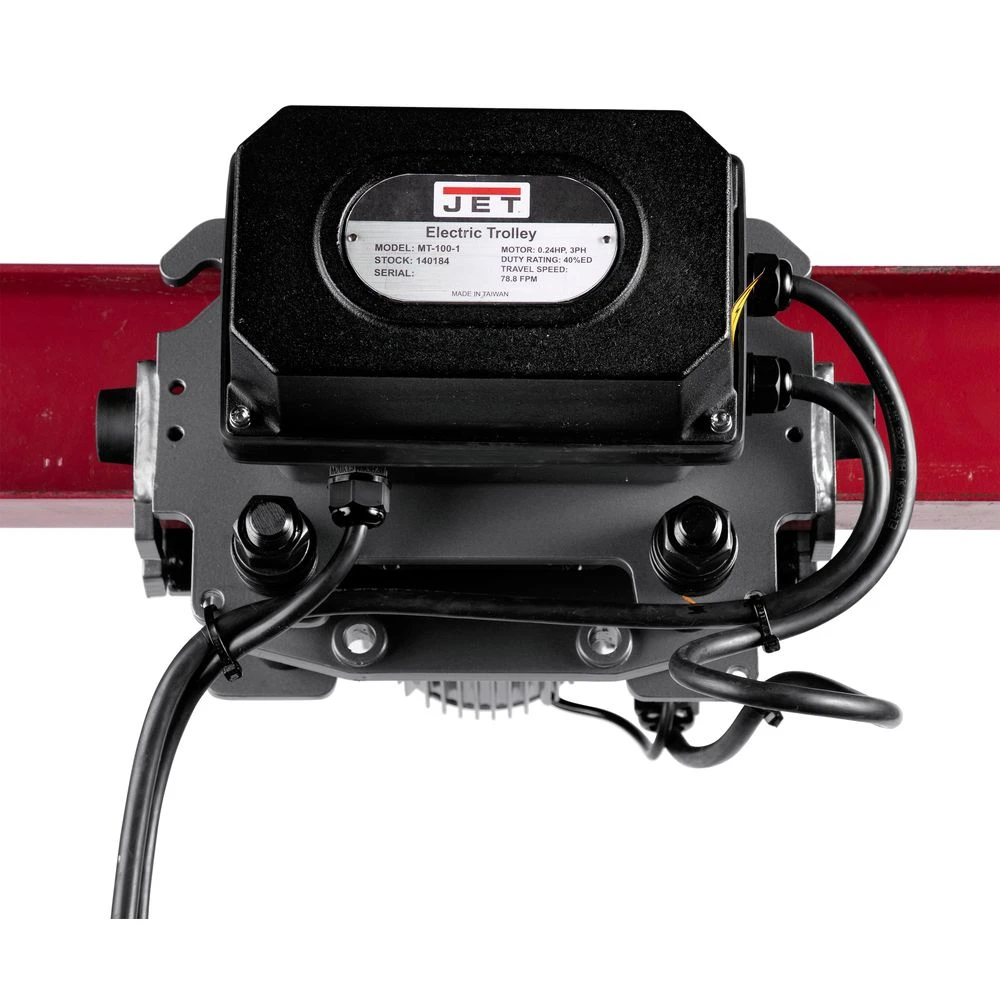

JET MT050 4 1/2 Ton Electric Trolley 460V (144183)
JET MT050 4 1/2 Ton Electric Trolley 460V (144183) is designed for safety, durability, and efficient operation in the toughest industrial applications. With two speeds, you can move materials quickly and safely, allowing precise placement without excessive bump firing. The JET Electric Trolley offers safe travel speeds up to 79 feet per minute and as low as 20 feet per minute.
This 144183 electric trolley features a heavy-duty motor putting out up to 0.8HP, making it the strongest in its class. Ideal for both indoor and outdoor use, it has an IP-55 rating for the trolley and an IP-65 rating for the pendant.
Specifications and Dimensions
Stock Number: 144183
Capacity (Lbs.): 1100
Load Capacity (Tons): 1/2
Maximum Beam Flange Width (In.): 5
Minimum Beam Curve Radius (In.): 51.2
Minimum Beam Flange Width (In.): 3
Motor (HP): 0.04 / 0.16
Motor Voltage (V.): 460
Prop 65: Cancer and Reproductive Harm
Weight (Lbs.): 99
Wheel Diameter (In.): 7/8
Travel Speed – Low (FPM): 20.0000
Travel Speed – High (FPM): 79.0000
Wheel to Hook Mount (in.): 3.7000
Key Features and Benefits
Heavy-duty motor for strong performance
Two speeds to reduce bump firing and allow high-speed movement
Suitable for indoor and outdoor use
Safe travel speeds from 20 to 79 feet per minute
IP-55 rating for trolley and IP-65 rating for pendant
Expanded flange capacity kits available
Product identification
- Brand: Jet
- Model / MPN: 144183
