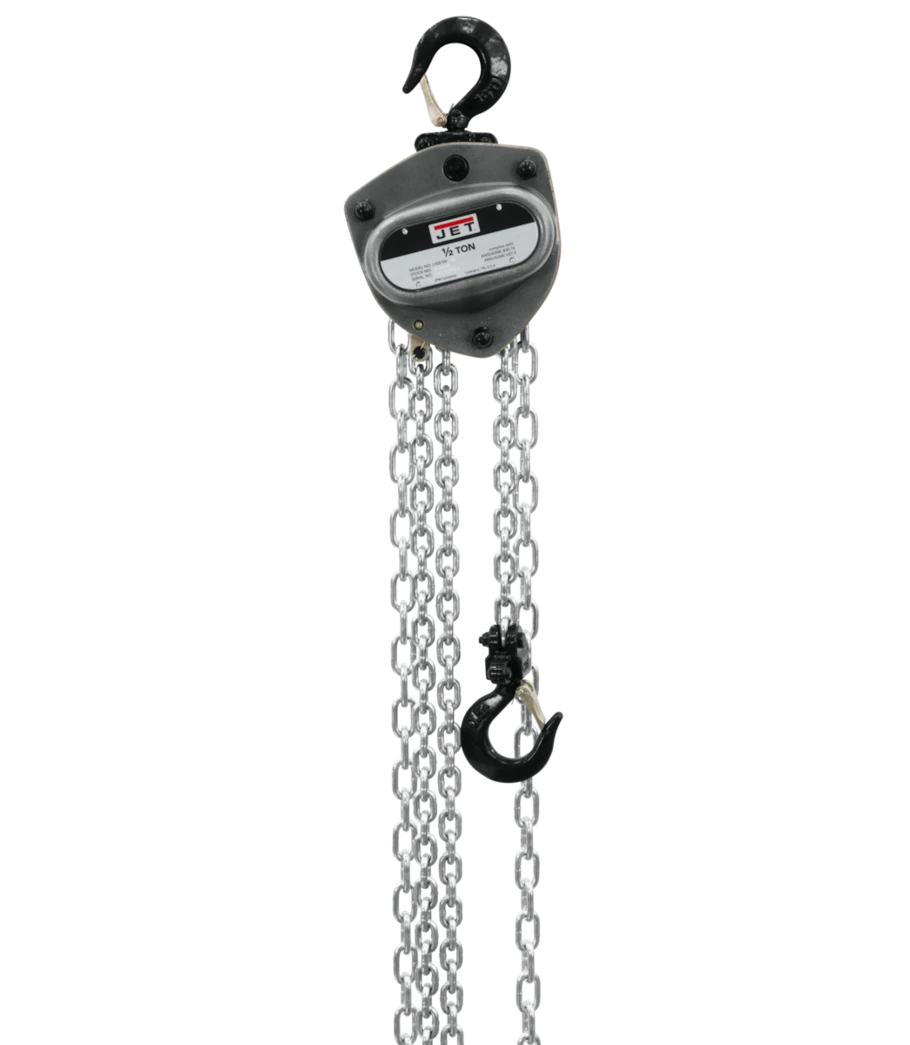

Jet L-100-50WO-15 1/2T Hoist w/15' Lift & Overload Protection (205115)
The Jet L-100-50WO-15 1/2T Hoist w/15' Lift & Overload Protection (205115) is a durable and reliable lifting tool designed for demanding industrial environments. This 1/2-ton capacity hoist features a 15-foot lift height and incorporates safety features to protect both the operator and the load.
KEY FEATURES AND BENEFITS
Patented Fused Brake System: Offers enhanced safety and reduces maintenance costs.
Overload Protection: Prevents damage to the hoist and load by automatically disengaging when overloaded.
Weston Style Dual Pawl Brake System: Provides additional safety and stability.
Alloy Steel Hooks: Rotate 360 degrees for easy rigging and feature overload indication.
Sealed Ball Bearing Design: Ensures smooth operation and long-lasting performance.
Cast Steel Safety Latches: Durable and secure for added safety.
Heat Treated Load Plates: Increase hoist lifespan and resistance to wear.
Grade 100 Load Chain: Stronger and more durable than grade 80 chain.
All Steel Construction: Provides robust and reliable performance.
Compact Design: Ideal for use in confined spaces.
Load Capacity: 1/2 ton (1,000 lbs)
Lift Height: 15 feet
Headroom: 11-1/4 inches
Hand Chain Overhaul: 25 feet to lift load 1 foot
Hand Chain Pull Force: 53 lbs
Load Chain Dimensions: 5/16" diameter
Model Number: L-100-50WO-15
Gross Weight: 30 lbs
Inspect the Hoist: Check for any damage or wear before use.
Attach the Load Hook: Securely hook the load to the hoist's load hook.
Operate the Hand Chain: Pull the hand chain to lift the load.
Lower the Load: Release the hand chain to lower the load.
Lock the Brake: Engage the brake to secure the load in position.
BENEFITS OF USING JET L-100-50WO-15 1/2T HOIST W/15' LIFT & OVERLOAD PROTECTION (205115)
Enhanced Safety: With multiple safety features.
Increased Productivity: Due to smooth operation.
Reduced Maintenance Costs: With durable construction.
Versatility: For various lifting applications.
Long Lifespan: Due to high-quality materials.
Patented fused brake system
Overload protection
Weston style dual pawl brake system
Alloy steel hooks
Sealed ball bearing design
Cast steel safety latches
Heat treated load plates
Grade 100 load chain
All steel construction
Product identification
- Brand: Jet
- Model / MPN: 205115
