1.5 ton chain hoist details

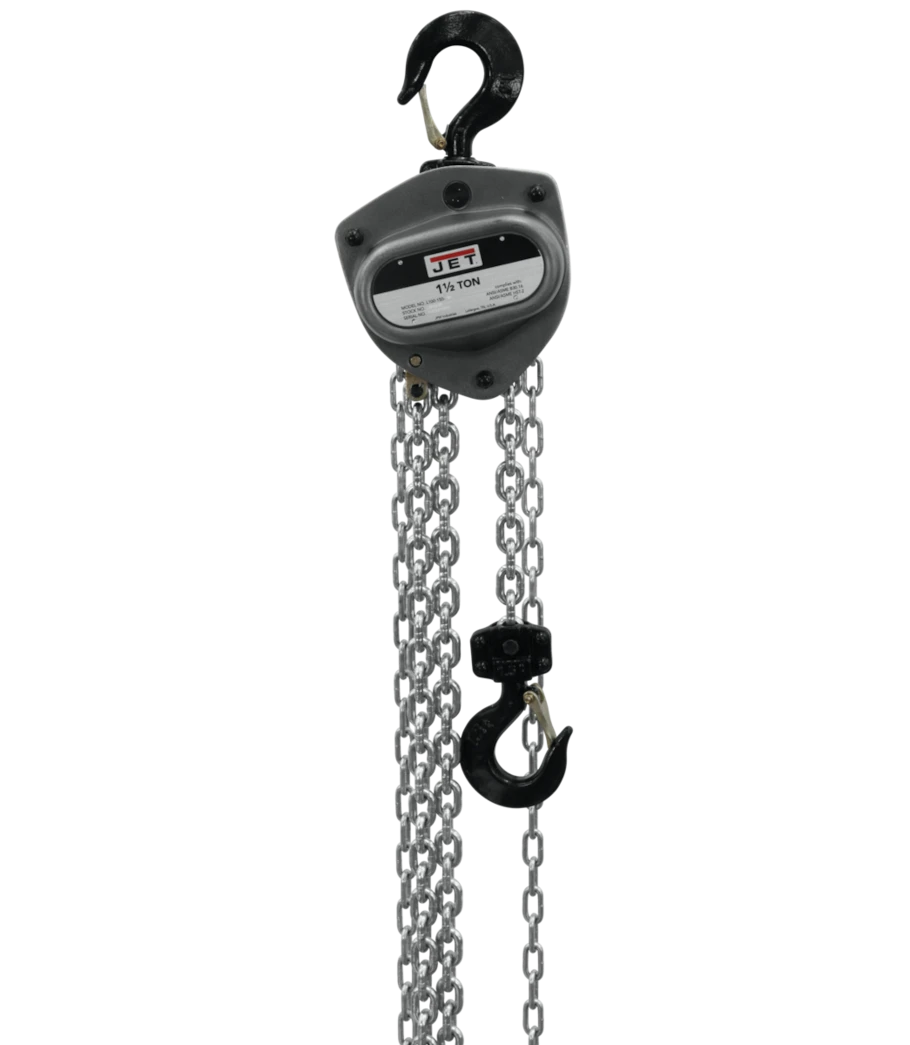

Jet 1.5 Ton Chain Hoist with 10' Lift & Overload Protection (101100)
The Jet 1.5 Ton Chain Hoist with 10' Lift & Overload Protection (101100) is a robust and reliable lifting solution designed for demanding industrial and construction environments. Built with a focus on safety, durability, and efficiency, this hoist is engineered to deliver exceptional performance.
KEY FEATURES AND BENEFITS
Safety: Overload protection, Weston style dual pawl brake system, alloy steel hooks with overload indication, and patented fused brake design for maximum user protection.
Durability: All-steel construction, sealed ball bearings, cast steel safety latches, heat-treated load plates, and grade 100 load chain for extended lifespan.
Efficiency: Triple spur gears for smooth and effortless lifting, even under heavy loads.
Capacity: 1-1/2 ton (3307 lbs)
Headroom: 13-3/4 inches
Load Chain: Grade 100, 7.1mm diameter
Hand Chain Pull Force: 77 lbs
Compliance: OSHA, ANSI/ASME B30.16, and HST-2 standards
Inspect the Hoist: Check for any damage or wear before use.
Attach the Load Chain: Securely hook the load chain to the load to be lifted.
Position the Hoist: Ensure the hoist is securely mounted and positioned correctly for the lift.
Operate the Hand Chain: Pull the hand chain to lift the load. Gradually apply force to avoid sudden movements.
Lower the Load: Release the hand chain to lower the load.
Inspect the Hoist: After use, inspect the hoist for any signs of damage or wear.
BENEFITS OF USING JET 1.5 TON CHAIN HOIST WITH 10' LIFT & OVERLOAD PROTECTION (101100)
Enhanced Safety: Through multiple safety features.
Increased Productivity: Due to efficient operation.
Reduced Downtime: With durable construction and minimal maintenance.
Cost-Effective Solution: With long-term performance.
All-steel construction
Overload protection
Weston style dual pawl brake system
Alloy steel hooks
Patented fused brake design
Sealed ball bearings
Cast steel safety latches
Heat-treated load plates
Grade 100 load chain
Triple spur gears
Product identification
- Brand: Jet
- Model / MPN: 101100
Jet chain hoist: see the listed specifications for this model.
