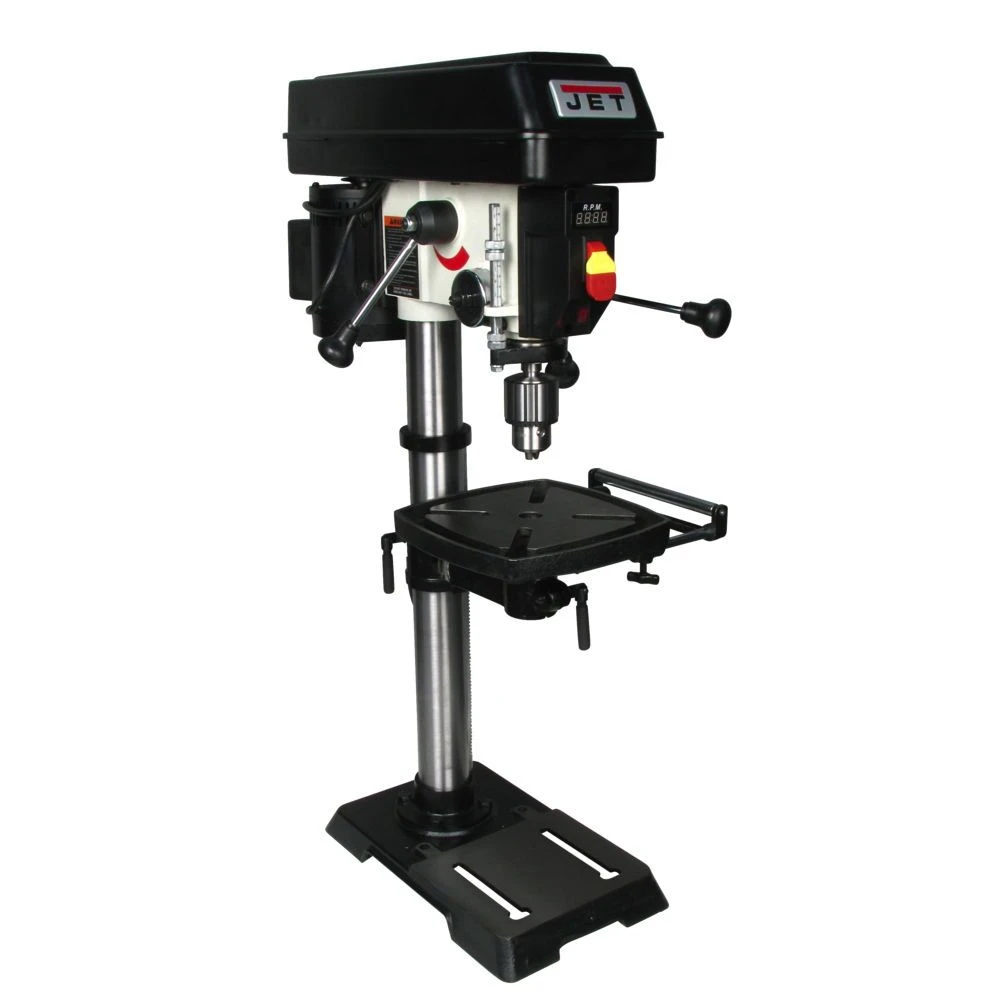

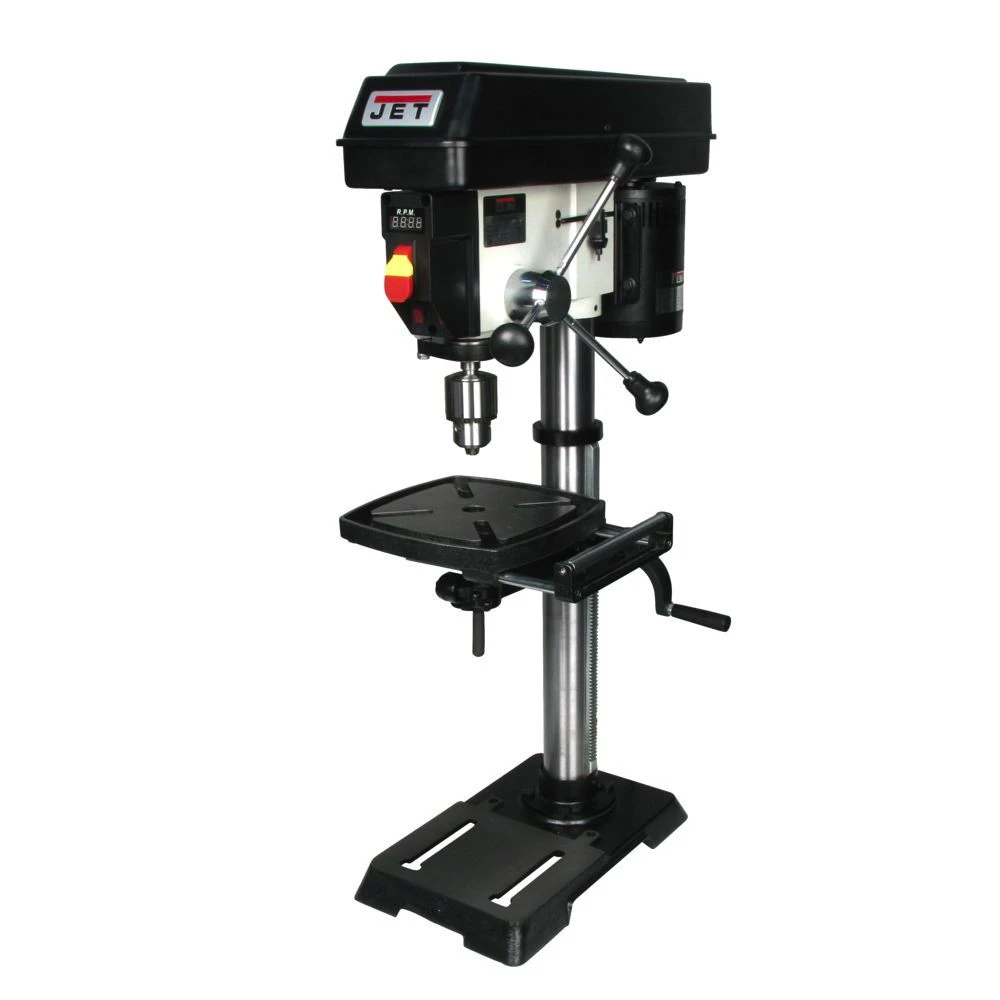

Jet JWDP-12 12 Inch Drill Press (Replacement of 707300) (716000)
Jet JWDP-12 12 Inch Drill Press (Replacement of 707300) (716000) is a versatile and powerful drill press designed to meet the needs of both professional woodworkers and DIY enthusiasts. This compact benchtop model offers a perfect balance of power, precision, and portability, making it an essential tool for any workshop.
KEY FEATURES AND BENEFITS:
Powerful Performance: The 1/2 HP induction motor easily handles various drilling applications in wood, metal, and other materials.
Precise Control: The mechanical variable speed drive system and digital readout allow for accurate adjustments within the 530-3100 RPM range.
Accurate Drilling: The XACTA Laser™ guides your drilling path, ensuring precise hole placement every time.
Improved Visibility: The built-in LED work light illuminates the work area, enhancing visibility and accuracy, especially for intricate tasks.
User-Friendly Design: Oversized knobs, a large paddle switch, and a clear linear scale with a depth stop make operation simple and efficient.
Portable and Compact: The benchtop design and 10" x 16-1/8" base make this drill press easy to transport and store.
Swing: 12 inches
Spindle Travel: 3-1/8 inches
Spindle Speed Range: 530-3100 RPM
Chuck Size: 5/8 inch
Table Size: 9-1/2 x 9-1/2 inches (extendable to 16-1/2 inches)
Table Tilt: -45 to 45 degrees
Motor Power: 1/2 HP
Motor Voltage: 115V
Securely Mount the Drill Press: Ensure the drill press is firmly mounted to a stable workbench or stand.
Install the Drill Bit: Insert the desired drill bit into the chuck and tighten securely.
Adjust the Speed: Use the variable speed control knob to select the appropriate speed for your material and drill bit size.
Position the Workpiece: Place the workpiece on the table and adjust as needed for proper alignment with the drill bit.
Lower the Drill Bit: Slowly lower the drill bit using the feed lever until it makes contact with the workpiece.
Start Drilling: Turn on the drill press and apply steady pressure to the feed lever to drill through the workpiece.
Complete the Hole: Continue drilling until the hole is complete, then slowly raise the drill bit.
BENEFITS OF USING THE Jet JWDP-12 12 Inch Drill Press (Replacement of 707300) (716000):
Versatility: Drill precise holes in a wide variety of materials.
Accuracy: Achieve consistently accurate results with the XACTA Laser™ and digital readout.
Efficiency: Save time and effort with the powerful motor and variable speed control.
Portability: Easily transport the drill press to different locations.
Compact benchtop design
Heavy-duty 1/2 HP induction motor
Mechanical variable speed drive system
Industrial 5/8" drill chuck
Oversized ergonomic knobs
XACTA Laser™ for accurate drilling
Digital readout for precise speed control
LED work light for enhanced visibility
Retractable roller extension for workpiece support
Large paddle switch with lockout protection
Product identification
- Brand: Jet
- Model / MPN: 716000
