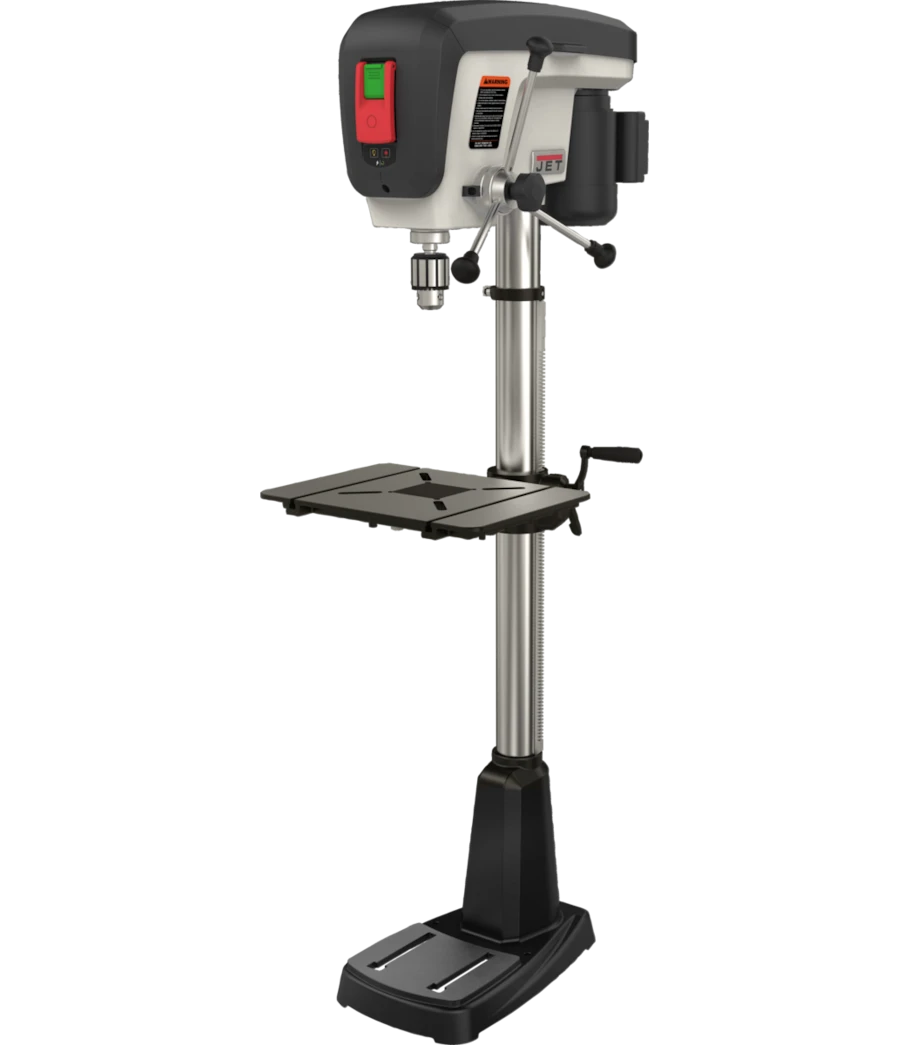

JET JDP-15F Fifteen-Inch Floor Drill Press
JET JDP-15F 716250 is a floorstanding drill press with a 3/4HP 115V single-phase motor. Its 16 speeds and one-handed belt tensioning address speed changes for different bits and materials. The 15-inch swing size is distinct from the 3-1/8-inch spindle travel and half-inch-plus chuck capacity.
Specifications and included details
- Floorstanding drill press, 3/4HP, 115V, single phase.
- 16 spindle speeds with listed range 210–3,500 RPM.
- Spindle travel 3-1/8 inches; chuck size 5/8 inch.
- 12-1/2 × 17-inch table; tilt from -45 to +45 degrees.
- One-handed belt tensioning, depth stop, LED work light and Xacta-X laser described.
Before ordering
Confirm floor support, mounting clearance and bit/arbor requirements. MT2/JT3 references concern the spindle/arbor/chuck interfaces rather than universal bit acceptance. Laser guidance supports alignment but does not replace secured workholding or setup verification.
Product questions and answers
Is this the bench-model J-2530?
No. JDP-15F is identified as a floorstanding press.
Does fifteen inches describe the quill travel?
No. Spindle travel is listed separately as 3-1/8 inches.
How is speed selection described?
Sixteen spindle speeds and a belt-tensioning system are described; it is not presented as continuously variable electronic speed control.
