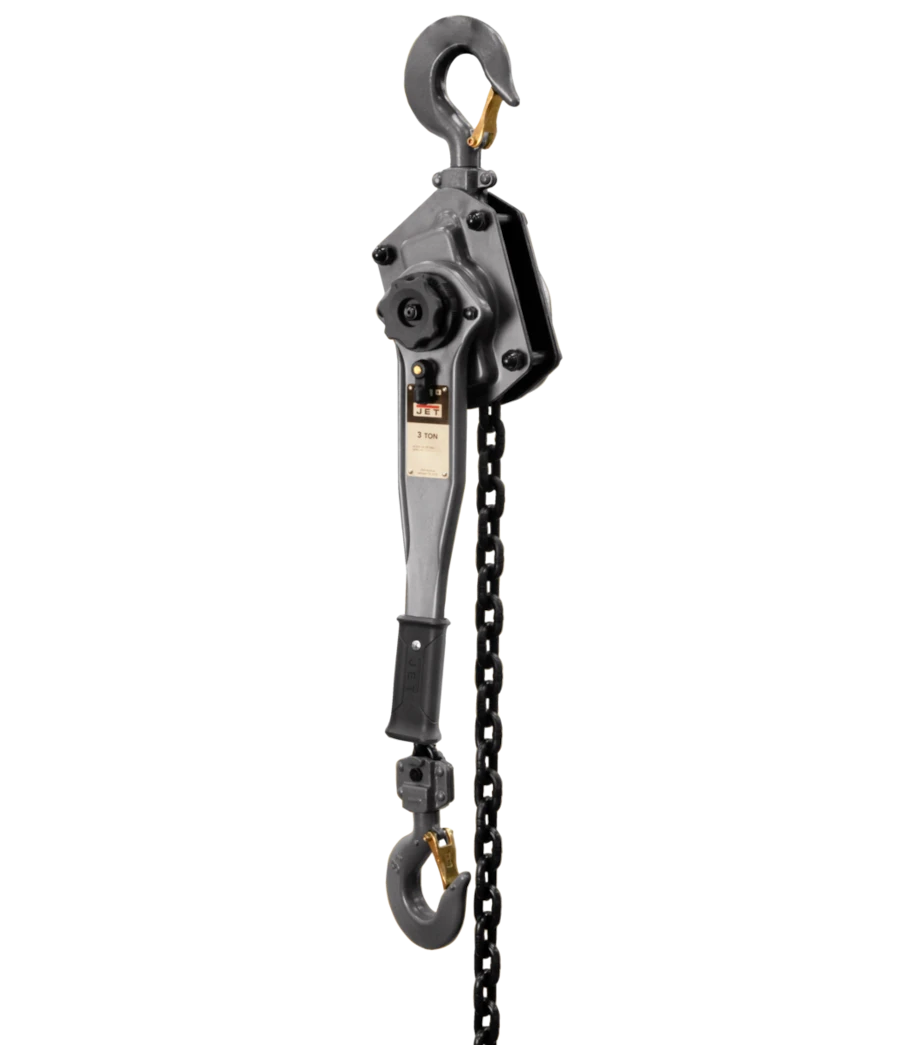

JET JLP-300A-20 287503 3 Ton Lever Hoist, 20 ft
The JET JLP-300A-20 287503 is the 20 ft lift configuration of this 3 ton lever hoist. A brake wear indicator and a Weston-style double-ratchet-pawl brake are listed, while the steel lever and chain mechanism provide manual operation.
Specifications and included details
- JLP-300A-20, part 287503: 3 ton capacity and 20 ft lift.
- Listed headroom is 18-8/9 inches and lever length is 16-1/7 inches.
- Grade 80 black-oxide-coated load chain; listed dimensions are 10 x 30 mm.
- Brake wear indicator, cast steel hook latches and free-chain positioning feature are listed.
Before ordering
Confirm the nameplate load rating and units, operating orientation and clearance for the lever stroke. Verify the support and rigging independently. Follow the manufacturer's operating and inspection instructions; no lowering sequence or additional overload-clutch configuration is established here.
Product questions and answers
How is the 20 ft JLP-300A-20 different from a shorter lift version?
This listing identifies a 20 ft lift configuration. The named capacity remains 3 ton; a longer lift does not increase the load rating.
Does the brake wear indicator replace regular inspection?
No. It is a listed inspection aid, not proof that the complete hoist and chain are fit for service. Follow the manufacturer's inspection requirements.
Is the listed headroom another name for lifting distance?
No. Headroom describes space occupied by the hoist assembly in its specified position. The lift configuration is 20 ft; account for both dimensions in your rigging layout.
