Jet lever hoist details

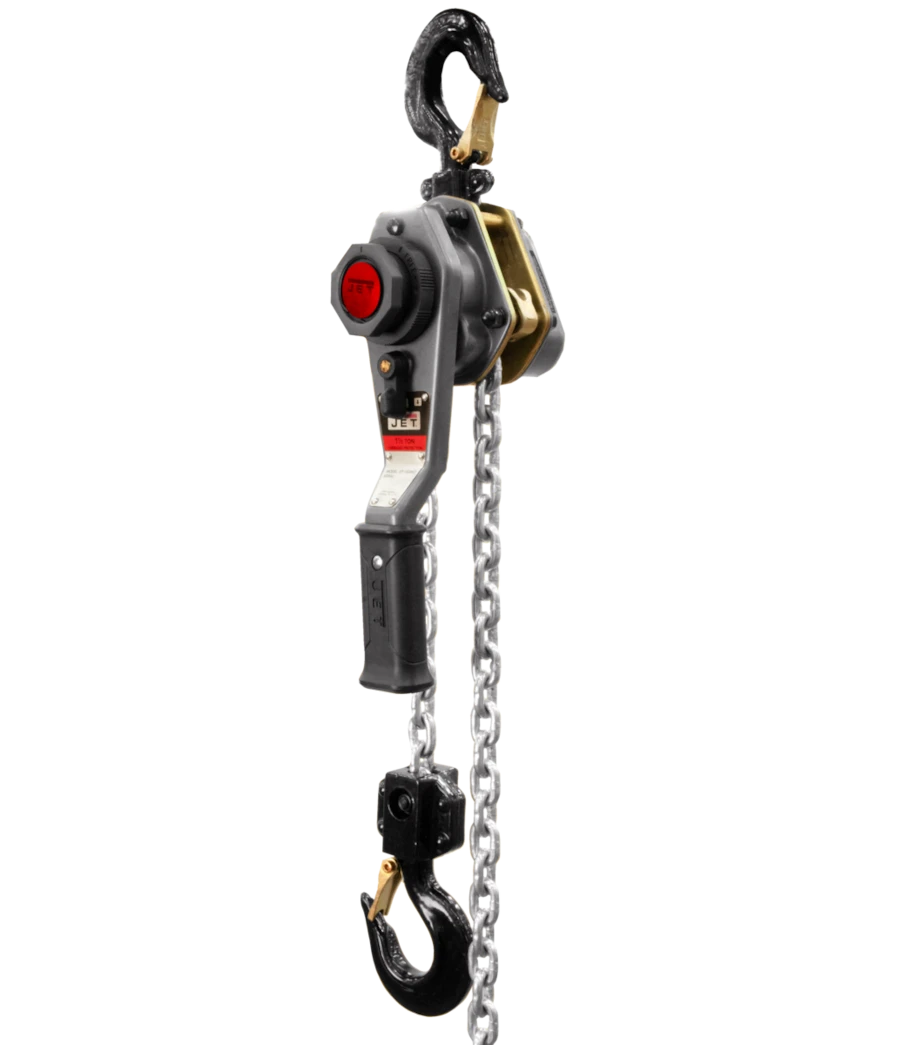

Jet JLH Series 1.5T Lever Hoist w/ 5' Lift & Overload Protect (376300)
Jet JLH Series 1.5T Lever Hoist w/ 5' Lift & Overload Protect (376300) is a reliable and durable tool designed for heavy-duty lifting and pulling applications in industrial settings. Engineered with safety in mind, this hoist incorporates features like overload protection to prevent accidents and damage.
KEY FEATURES AND BENEFITS:
Safety: Slip clutch overload protection, Weston-style double ratchet pawl brake, patented handle design, ergonomic grip, industrial-rated alloy steel hooks, and load testing to 125% of capacity ensure user safety and prevent equipment damage.
Durability: Constructed with grade 100 load chain, cast steel safety latches, heat-treated and case-hardened internal parts, caged needle bearings, and impact-resistant all-steel construction for long-lasting performance in harsh environments.
Efficiency: Lightweight design, shorter handle, and smaller body allow for easy maneuverability in confined spaces and low headroom applications.
Load Capacity: 1-1/2 tons (3000 lbs)
Overload Protection: Yes
Shipyard Hooks: No
Headroom: 13-1/5 inches
Handle Length: 10-3/8 inches
Lever Pull Force: 75 lbs
Lift per Turn: 9/10 inches
Number of Falls: 1
Load Chain Dimensions: 7.1 x 19.9 mm
Load Capacity (Metric Tons): 1.6
Hook Throat Opening: 1-1/4 inches
Overall Width: 6-1/4 inches
Weight: 17-1/2 lbs
Inspect the hoist: Before each use, check for any damage to the load chain, hooks, and other components.
Attach the load: Securely hook the load chain to the load and the hoist hook to a secure anchor point.
Operate the lever: Pull the lever down to lift the load and release it to lower the load.
Monitor the load: Continuously monitor the load and the hoist's operation for any signs of overload or malfunction.
Lower the load: Carefully lower the load by releasing the lever and allowing the load chain to unwind.
BENEFITS OF USING JET JLH SERIES LEVER HOIST:
Enhanced safety through built-in overload protection and durable construction.
Increased efficiency with lightweight design and easy operation.
Improved productivity with reliable and long-lasting performance.
Cost-effective solution for heavy-duty lifting and pulling tasks.
Slip clutch overload protection
Weston-style double ratchet pawl brake
Patented handle design
Industrial-rated alloy steel hooks
Grade 100 load chain
Cast steel safety latches
Heat-treated and case-hardened internal parts
Caged needle bearings
Impact-resistant all-steel construction
Lightweight design
Product identification
- Brand: Jet
- Model / MPN: 376300
