Jet lever hoist details

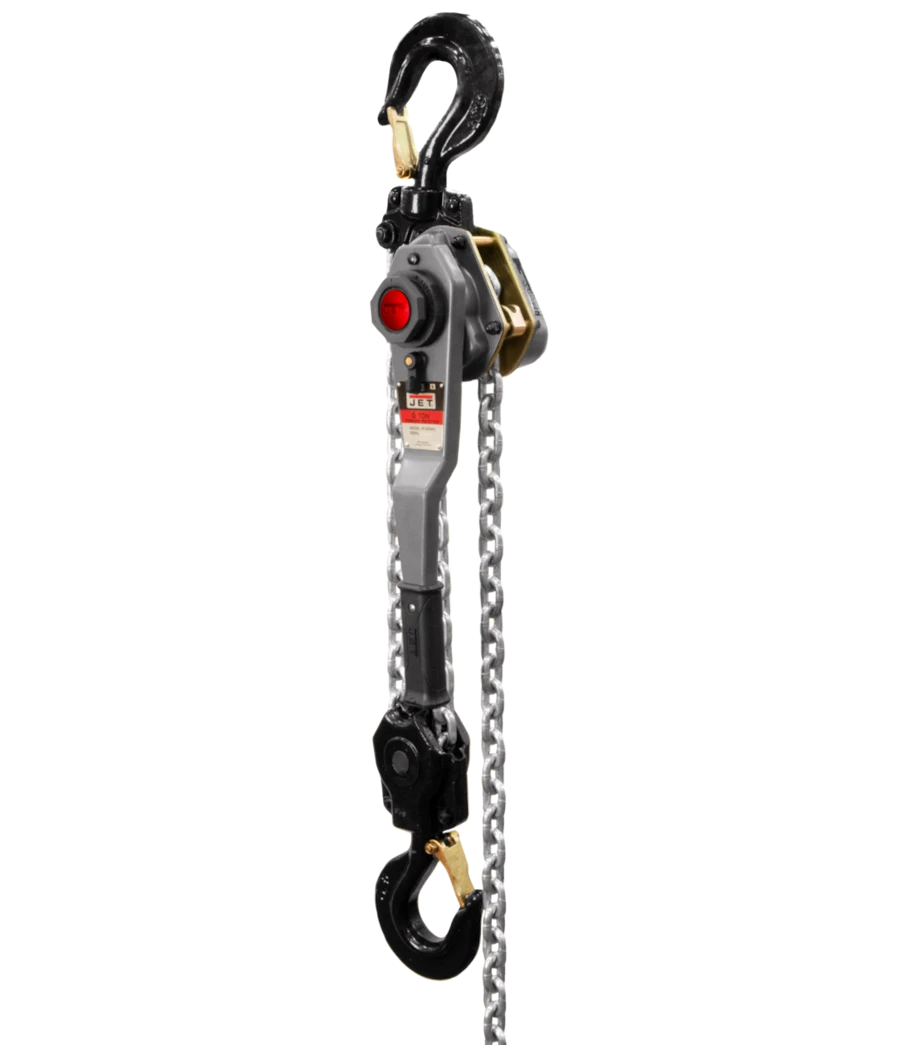

Jet JLH-600WO-10 6T Lever Hoist w/10' Lift & Overload Protect (376601)
The Jet JLH-600WO-10 6T Lever Hoist w/10' Lift & Overload Protect (376601) is a heavy-duty lifting tool designed for industrial applications. Built with safety, durability, and performance in mind, this hoist is suitable for demanding work environments.
KEY FEATURES AND BENEFITS:
Safety: Overload protection, patented fused brake system, double pawl brake design, improved free chaining, ergonomic handle, and overload indicating hooks.
Durability: Heat-treated and case-hardened components, corrosive resistant load chain, cast steel safety latches, and impact resistant all steel construction.
Performance: Caged needle bearings for smooth operation, compact design for confined spaces, and 360-degree rotating hooks for easy rigging.
Load Capacity: 6 tons
Lift Height: 10 feet
Overload Protection: Yes
Headroom: 21-1/4 inches
Handle Length: 16-5/16 inches
Lever Pull Force: 84 lbs
Lift per Turn: 3/8 inches
Number of Falls: 2
Load Chain Dimensions: 10 x 28 mm
Load Capacity (Metric Tons): 6.3
Hook Throat Opening: 2 inches
Overall Width: 7-1/2 inches
Inspect the hoist: Check for any damage or wear before use.
Attach the load: Securely hook the load chain to the load and the hoist hook to a secure anchor point.
Operate the lever: Pull the lever to lift the load and release it to lower the load.
Control the load: Use the lever to control the lifting and lowering speed.
Lower the load: Carefully lower the load to the desired position.
Release the load: Remove the load chain from the load and hoist hook.
BENEFITS OF USING Jet JLH-600WO-10 6T Lever Hoist w/10' Lift & Overload Protect (376601):
Improved efficiency: The compact design and smooth operation allow for quick and easy lifting tasks.
Enhanced safety: The overload protection and safety features minimize the risk of accidents.
Increased durability: The robust construction ensures long-lasting performance in demanding environments.
Versatile applications: Suitable for a wide range of industrial lifting needs.
Overload protection
Patented fused brake system
Weston style double pawl brake design
Improved free chaining
Patented handle design
Industrial rated alloy steel hooks
Heat treated, case hardened, and corrosive resistant internal parts
Corrosive resistant grade 100 load chain
Cast steel safety latches
Impact resistant all steel construction
Caged needle bearings
Ergonomic handle
Product identification
- Brand: Jet
- Model / MPN: 376601
