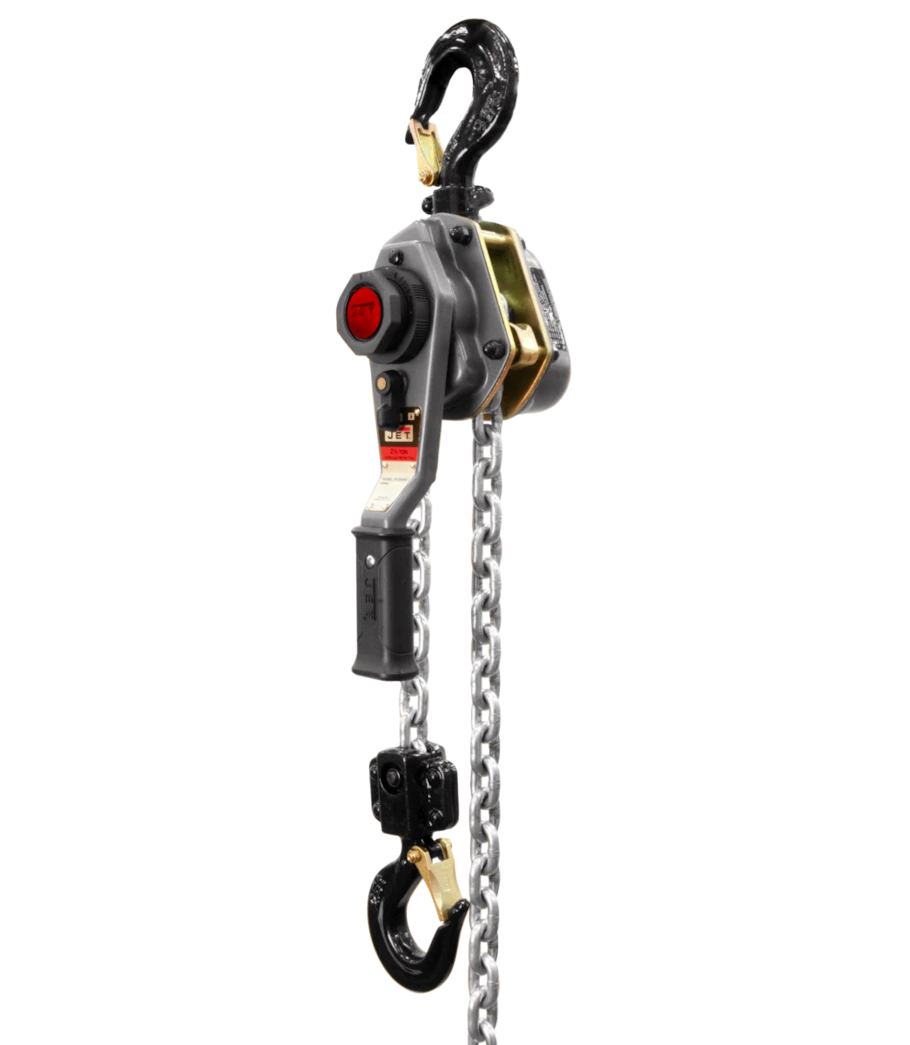

JET JLH-250WO-10 376401 2.5 Ton Lever Hoist, 10 ft
The JET JLH-250WO-10 376401 is listed as a 2.5 metric ton lever hoist with a 10 ft lift configuration. A single load-chain fall and a 10-3/8 inch handle distinguish its layout from larger multi-fall hoists; check the complete installed space before choosing it.
Specifications and included details
- JLH-250WO-10, part 376401: listed 2.5 metric ton capacity and 10 ft lift.
- Listed headroom is 14-3/4 inches; handle length is 10-3/8 inches.
- One load-chain fall with listed chain dimensions of 8.8 x 24.6 mm.
- Overload protection, fused brake design and double-pawl brake system are listed.
- Caged needle bearings and alloy steel swivel hooks are listed.
Before ordering
Use the manufacturer's load marking and units, and verify the support, hook seating and permitted orientation. Leave room for the lever stroke as well as the body. Follow the model manual for inspection and operation; releasing the handle is not a complete lowering procedure.
Product questions and answers
Does 2.5 ton here mean 2.5 US short tons?
The product description specifically identifies 2.5 metric tons. Confirm the manufacturer's marking and units when matching a load; do not treat all ton labels as interchangeable.
Does the 10 ft lift include the 14-3/4 inch headroom?
They describe different measurements. Lift identifies the load-hook travel configuration, while headroom describes assembly clearance in the specified position. Check both for the installation.
Does overload protection authorize a heavier lift?
No. The listed rating still applies. The overload feature does not increase the capacity or replace inspection of the hoist, support and rigging.
