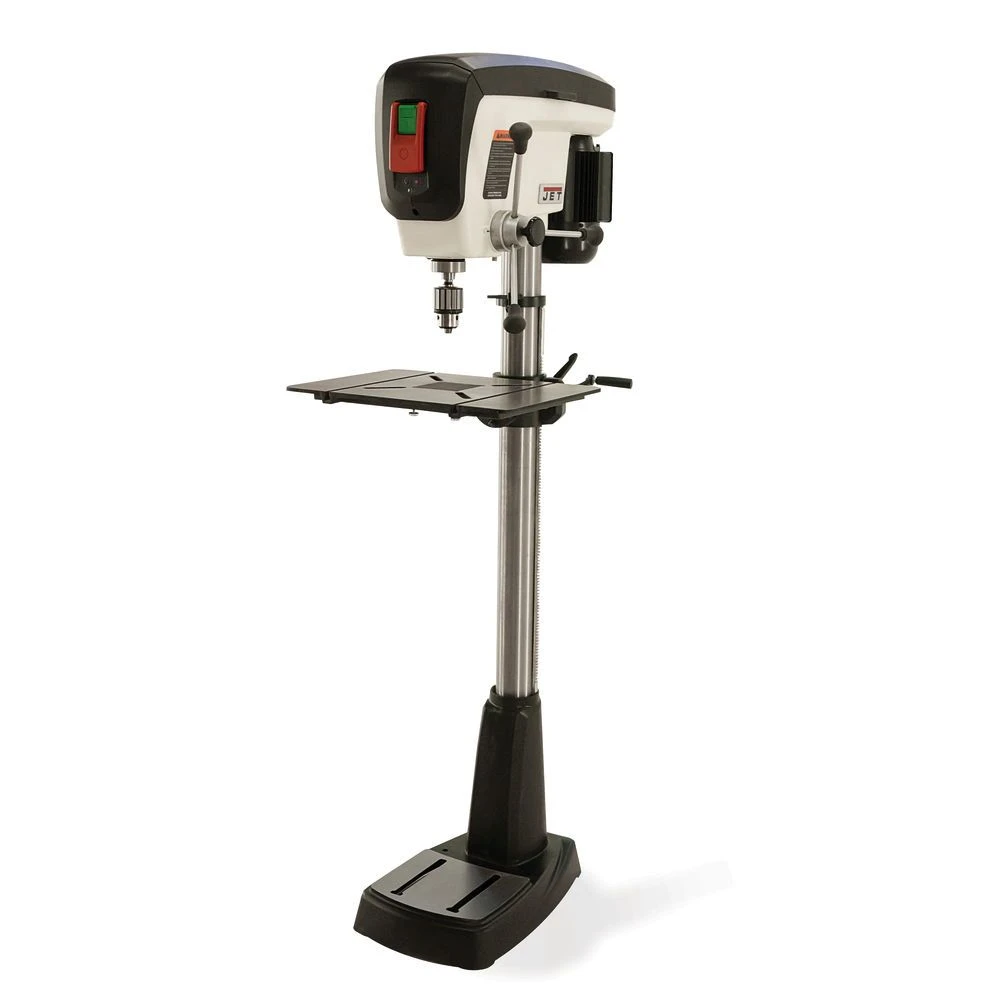

Jet JDP-17 3/4HP 17" Drill Press (Replacement of 354173) (716300)
Jet JDP-17 3/4HP 17" Drill Press (Replacement of 354173) (716300) is a versatile and powerful machine designed for precision drilling in both woodworking and metalworking applications.
KEY FEATURES AND BENEFITS:
Powerful Performance: 3/4 HP motor delivers ample power to handle demanding tasks.
Versatility & Control: 16 variable speeds (210-3,580 RPM) allow for drilling a wide range of materials.
Precision Drilling: 5" spindle travel and Xacta-X laser system ensure accurate hole placement.
User-Friendly Design: Large 14" x 19" cast iron worktable tilts for angled drilling and features T-slots for clamping.
Enhanced Visibility: Built-in LED work light illuminates the work area for better visibility.
Durability & Stability: Sturdy cast iron construction and large base provide stability for precise drilling.
Style (Type): Floorstanding Model
Swing: 16-7/8 in.
Spindle Travel: 5 in.
Number of Spindle Speeds: 16
Spindle Speed Range (RPM): 210 – 3500
Spindle Distance to Table (Max.): 30 in.
Table Size (L x W): 14 x 19 in.
Table Tilt: 90 Left and Right
Chuck Size: 5/8 in.
Column Diameter: 3-5/32 in.
Base Size: 20 x 12-5/8 in.
Motor Power: 3/4 HP
Recommended Circuit Size (Amps.): 15
Weight: 187 lbs.
Assembly: Refer to the manual for detailed assembly instructions.
Securing the Workpiece: Clamp your workpiece securely to the worktable using the T-slots or vises (not included).
Adjusting the Table: Loosen the table tilt lock and tilt the table to the desired angle if needed. Tighten the lock to secure the table.
Setting Up the Drill Bit: Install the appropriate drill bit for your material and desired hole size into the chuck and tighten securely using the chuck key.
Speed Selection: Choose the appropriate speed setting based on the material you are drilling. Refer to the manual for recommended speed settings for different materials.
Drilling: Lower the quill (the arm that holds the spindle and drill bit) by turning the handle. Engage the drill and begin drilling, applying moderate, even pressure.
Depth Stop: Utilize the depth stop for consistent drilling depths, particularly when making multiple holes.
Laser Centering: Activate the Xacta-X laser system for precise drill bit centering on your workpiece.
BENEFITS OF USING Jet JDP-17 3/4HP 17" Drill Press (Replacement of 354173) (716300):
Increased Efficiency: The powerful motor and variable speeds allow you to tackle various drilling tasks quickly and efficiently.
Enhanced Accuracy: The precise design features, including the laser centering system and 5" travel distance, ensure accurate hole placement.
Improved Versatility: The JDP-17 drill press is suitable for drilling a wide range of materials due to its variable speeds and powerful motor.
User-Friendly Operation: The large worktable, integrated LED light, and depth stop simplify operation and improve user experience.
Durable Construction: The cast iron construction ensures long-lasting performance and stability.
16 Variable Speeds (210-3,580 RPM)
5" Spindle Travel
Xacta-X Laser Centering System
Large 14" x 19" Cast Iron Worktable (Tilts for Angled Drilling)
T-Slots for Clamping Workpieces
Built-in LED Work Light
Integrated Depth Stop
One-Handed Belt Tensioning for Speed Changes
5/8" Chuck Capacity
Large Cast Iron Base
Safety Key and Paddle-Style Off Button
Product identification
- Brand: Jet
- Model / MPN: 716300
