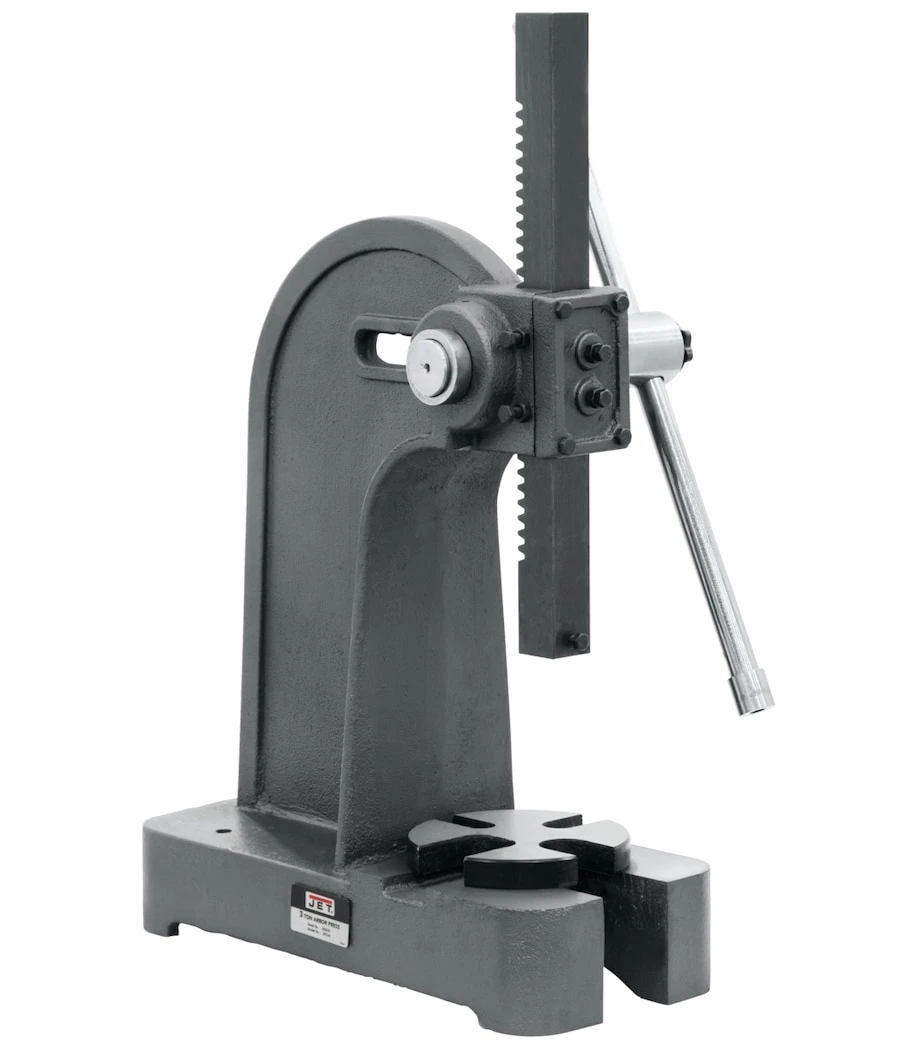

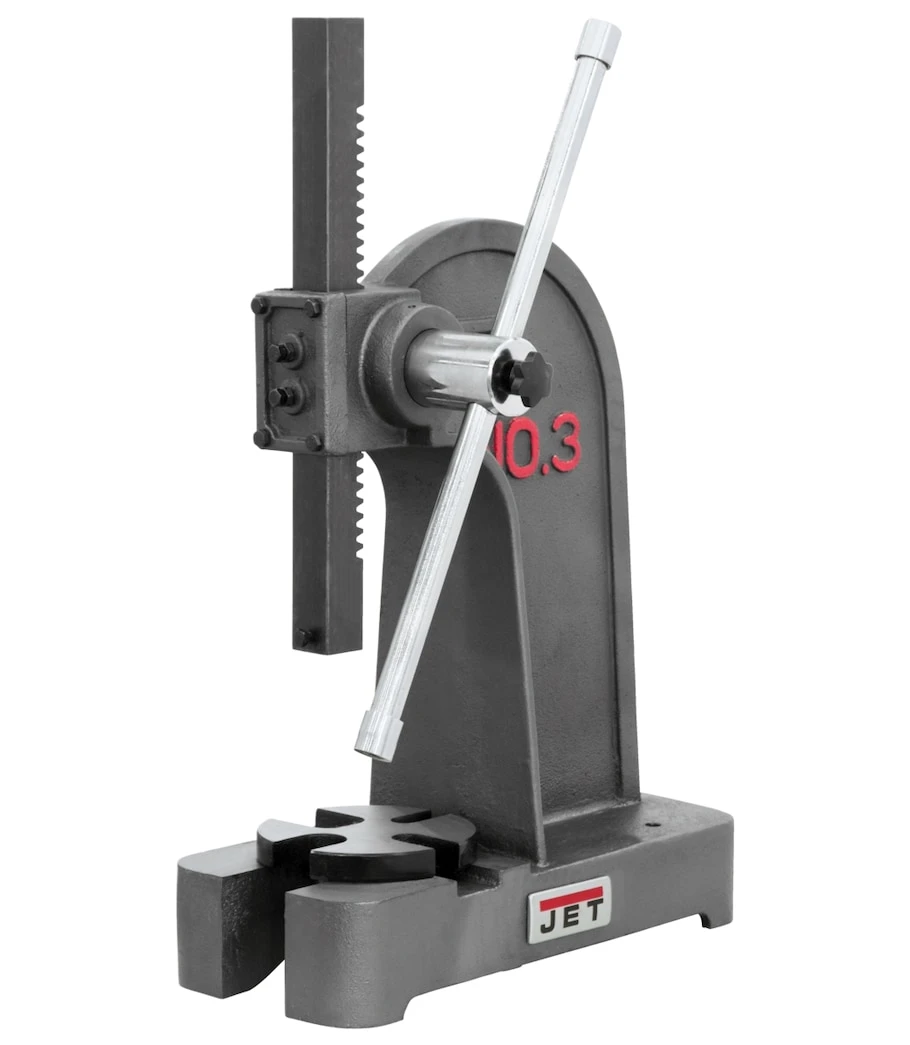

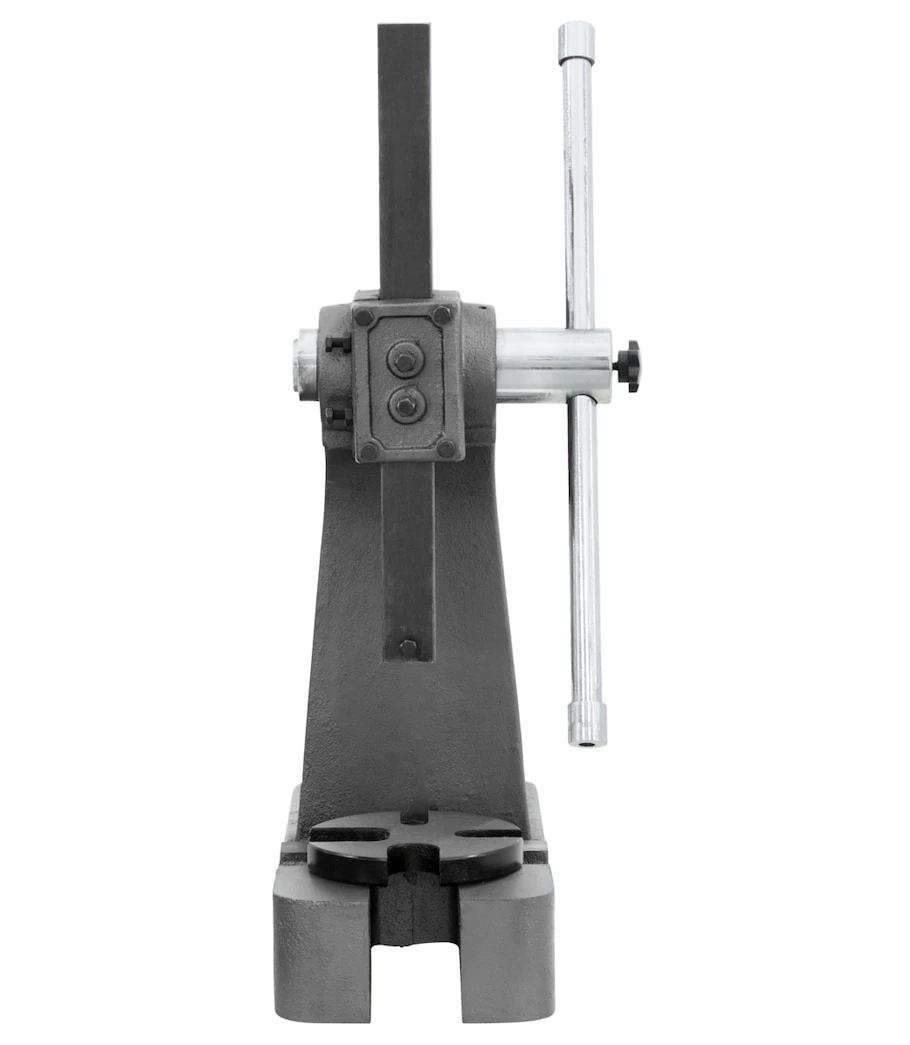

Jet AP2-M 2-Ton Arbor Press (333620)
The Jet AP2-M 2-Ton Arbor Press (333620) is a robust and reliable tool designed for efficient production and assembly processes. Constructed from heavy-duty ductile iron, this arbor press offers exceptional strength and stability for demanding tasks.
KEY FEATURES AND BENEFITS:
Solid Construction: The heavy-duty ductile iron frame ensures durability and longevity.
Precision Machined Components: Accurately machined parts guarantee precise operation and performance.
Powerful Pressing Force: With a 2-ton capacity, this arbor press handles a wide range of applications.
Versatile Design: Flat and parallel tables, along with slotted table plates, accommodate various workpiece sizes.
Easy Operation: Smooth-running steel rams and pinions provide effortless pressing action.
Capacity: 2 tons (4000 lbs)
Overall Dimensions: 15-3/4 x 10 x 17-1/2 inches
Capacity Over Table: 7-1/2 inches
Anvil Diameter: 6-11/16 inches
Ram Size: 1-1/4 x 13 inches
Diameter of Work: 10-3/4 inches
Arbor Press Height: 16-1/4 inches
Base Size: 6-3/8 x 15-3/4 inches
Ram Bore: 1/2 inch
Travel of Ram: 9 inches
Secure the arbor press to a stable work surface.
Position the workpiece on the table or between the table and anvil, depending on the task.
Engage the ram by turning the handle clockwise.
Apply pressure gradually until the desired result is achieved.
Release the pressure by turning the handle counterclockwise.
BENEFITS OF USING Jet AP2-M 2-Ton Arbor Press (333620):
Increased productivity: Efficiently handle various pressing tasks.
Improved accuracy: Precision-machined components ensure precise results.
Enhanced safety: Sturdy construction and reliable operation minimize risks.
Cost-effective: Durable build and long lifespan provide excellent value.
Heavy-duty ductile iron construction
Precision machined base, ram housing, framework, and bottom plate
Steel rams and pinions
Flat and parallel tables and slotted table plates
Product identification
- Brand: Jet
- Model / MPN: 333620
