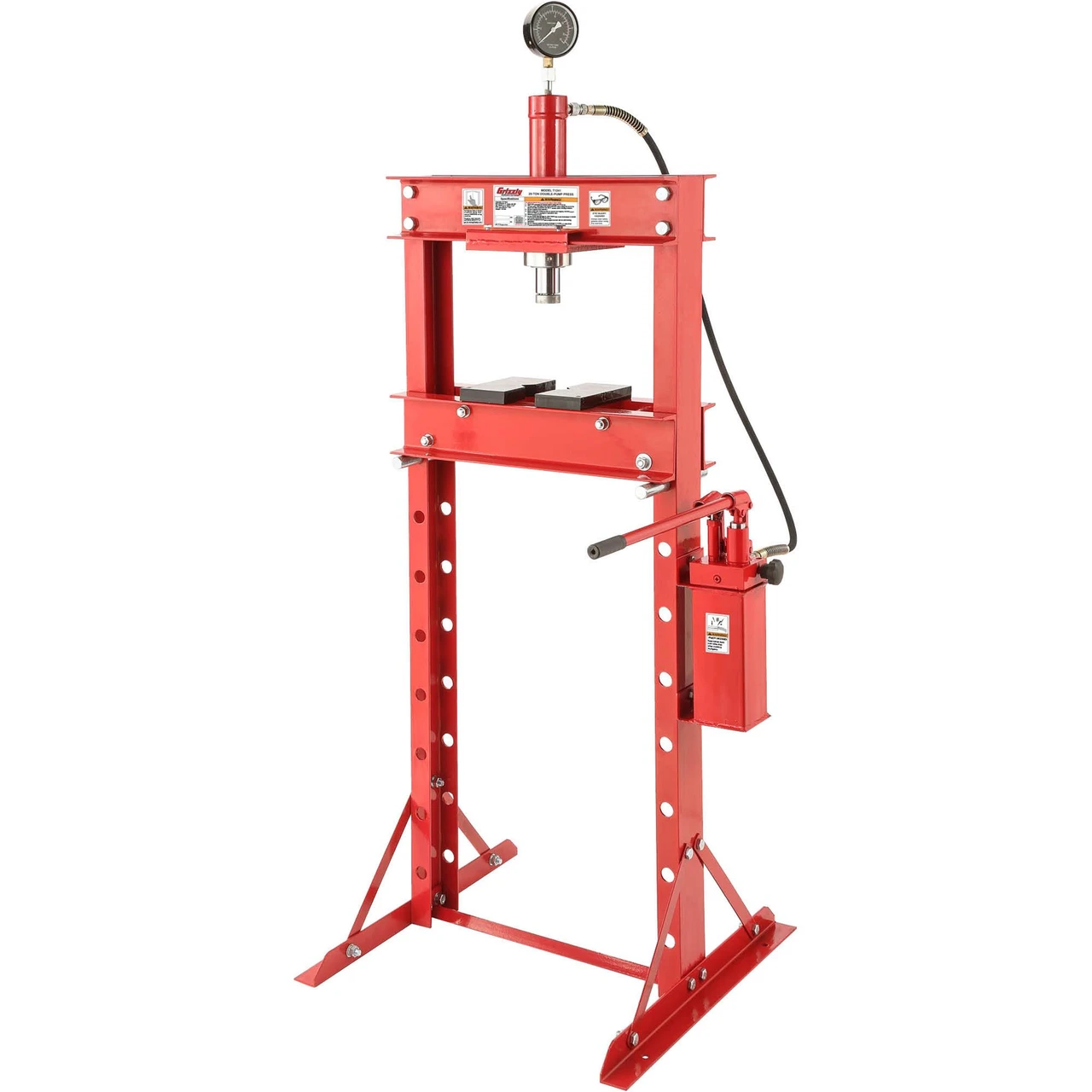

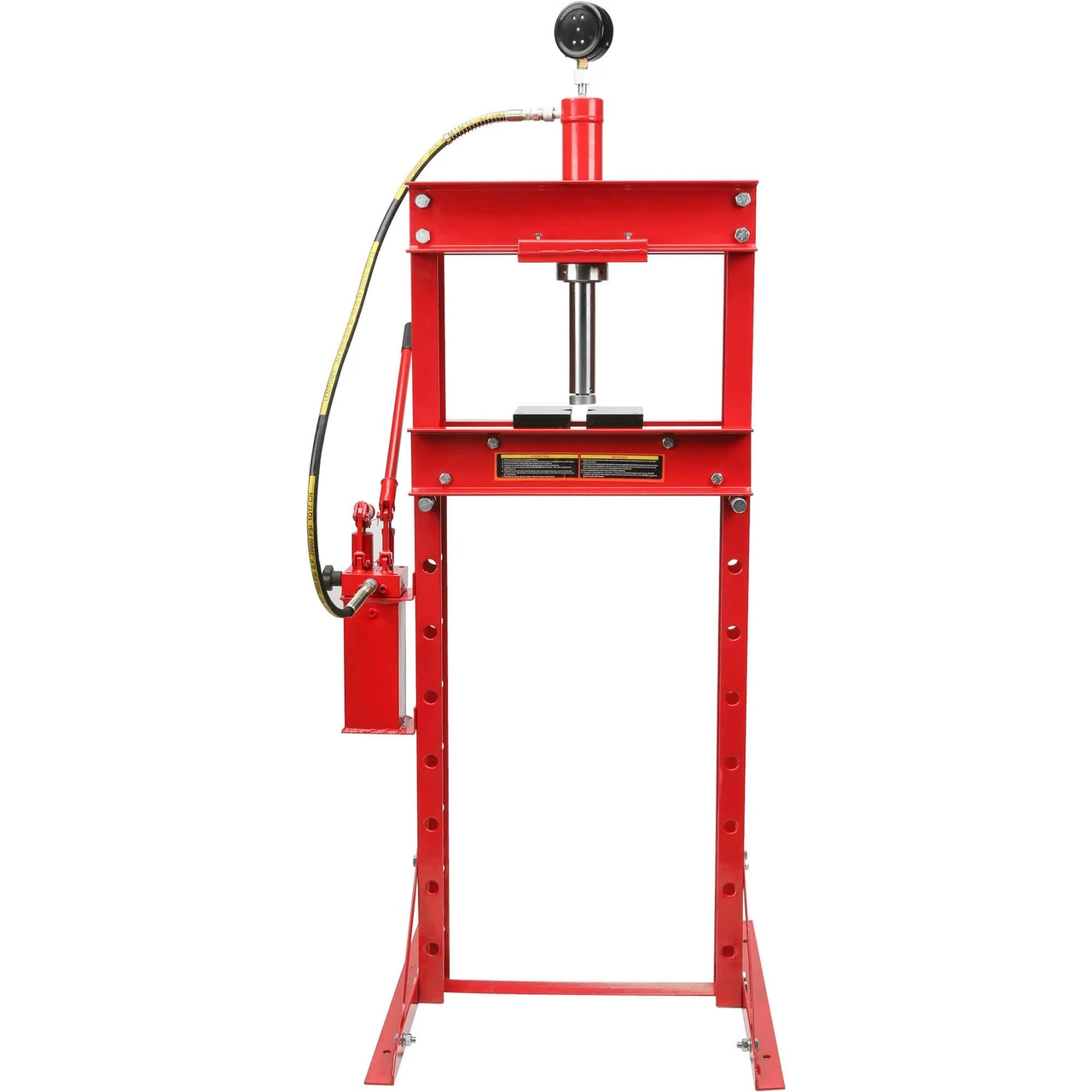

Grizzly Industrial 20-Ton Double-Pump Hydraulic Press (T1241)
Grizzly Industrial 20-Ton Double-Pump Hydraulic Press (T1241) is engineered for heavy-duty applications, offering 20 tons of force through its innovative double-pump system. This feature allows the ram to quickly approach the workpiece and effortlessly apply up to 40,000 lbs of pressure.
Specifications and Dimensions
Ram maximum applied force: 20 Tons (40,000 lbs)

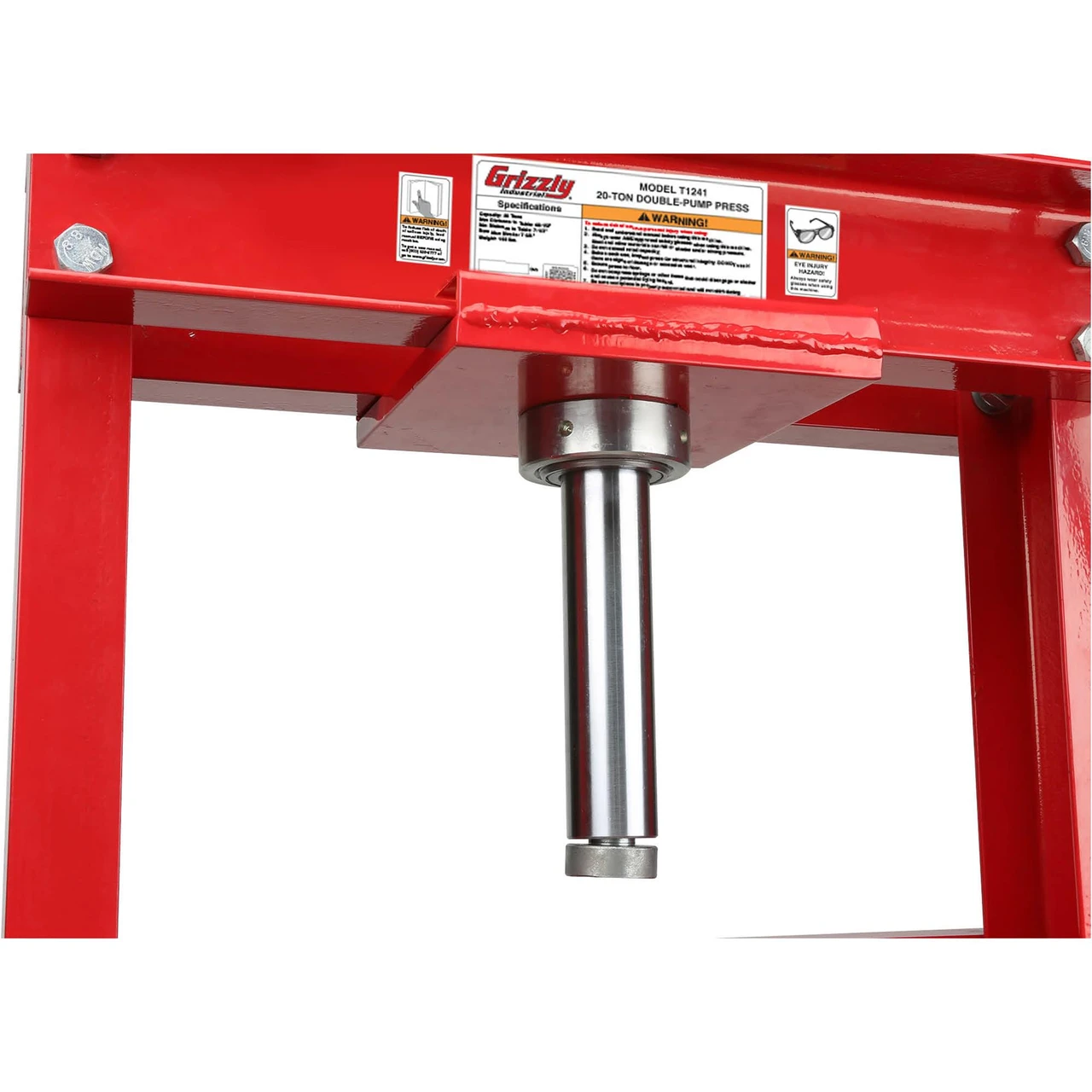

Ram diameter: 2-3/8"
Ram maximum stroke: 5-3/4"
Maximum distance to table: 40-1/2"
Minimum distance to table: 7-1/2"
Bed support pin diameter: 1"
Number of bed adjustment holes: 8
Bed adjustment hole spacing: 4-3/4"
Footprint: 28" W x 28" D
Overall dimensions: 32-1/2" W x 33-1/2" D x 72" H
Key Features and Benefits

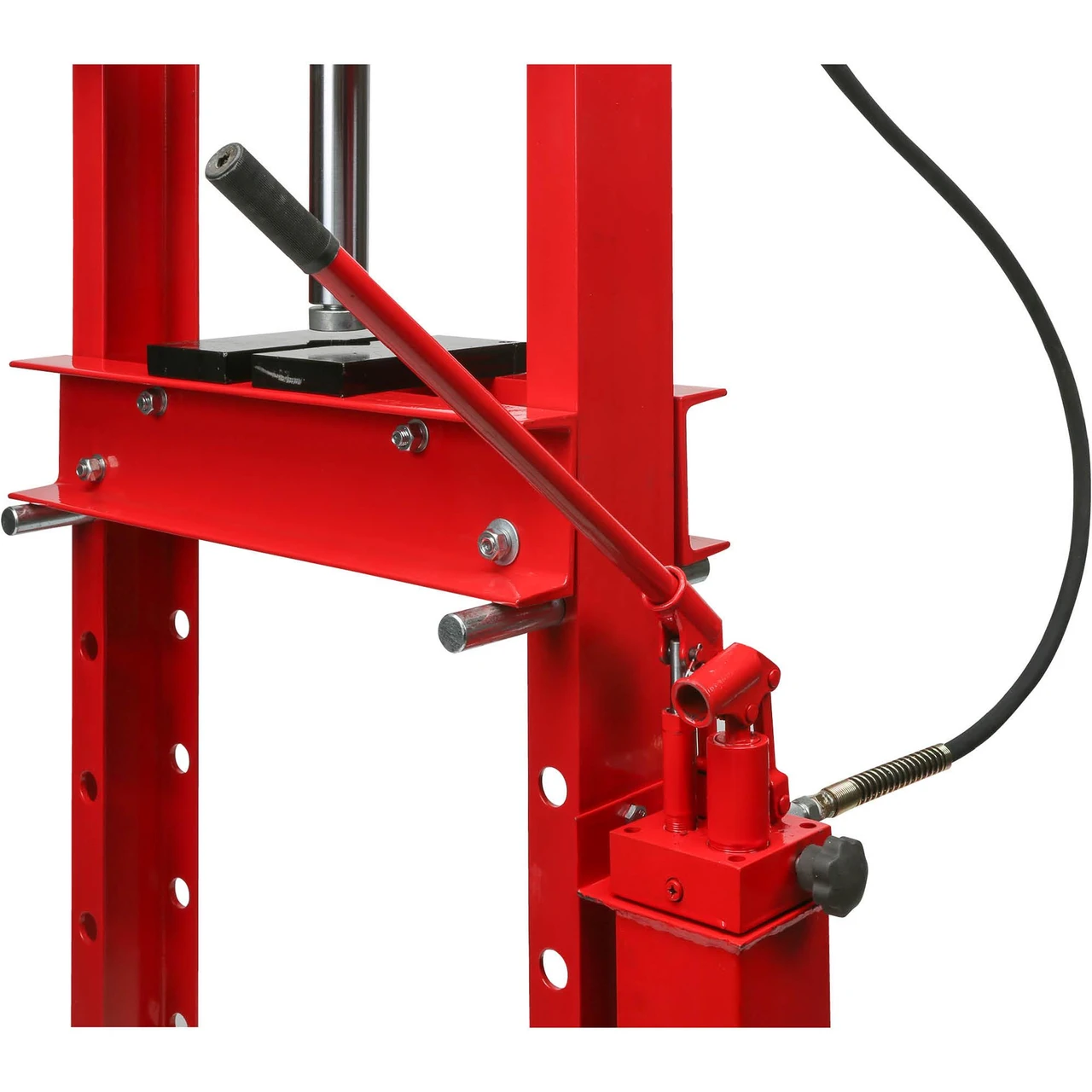

Double-pump system for fast and powerful pressing
Adjustable table height fits workpieces over 39" in length

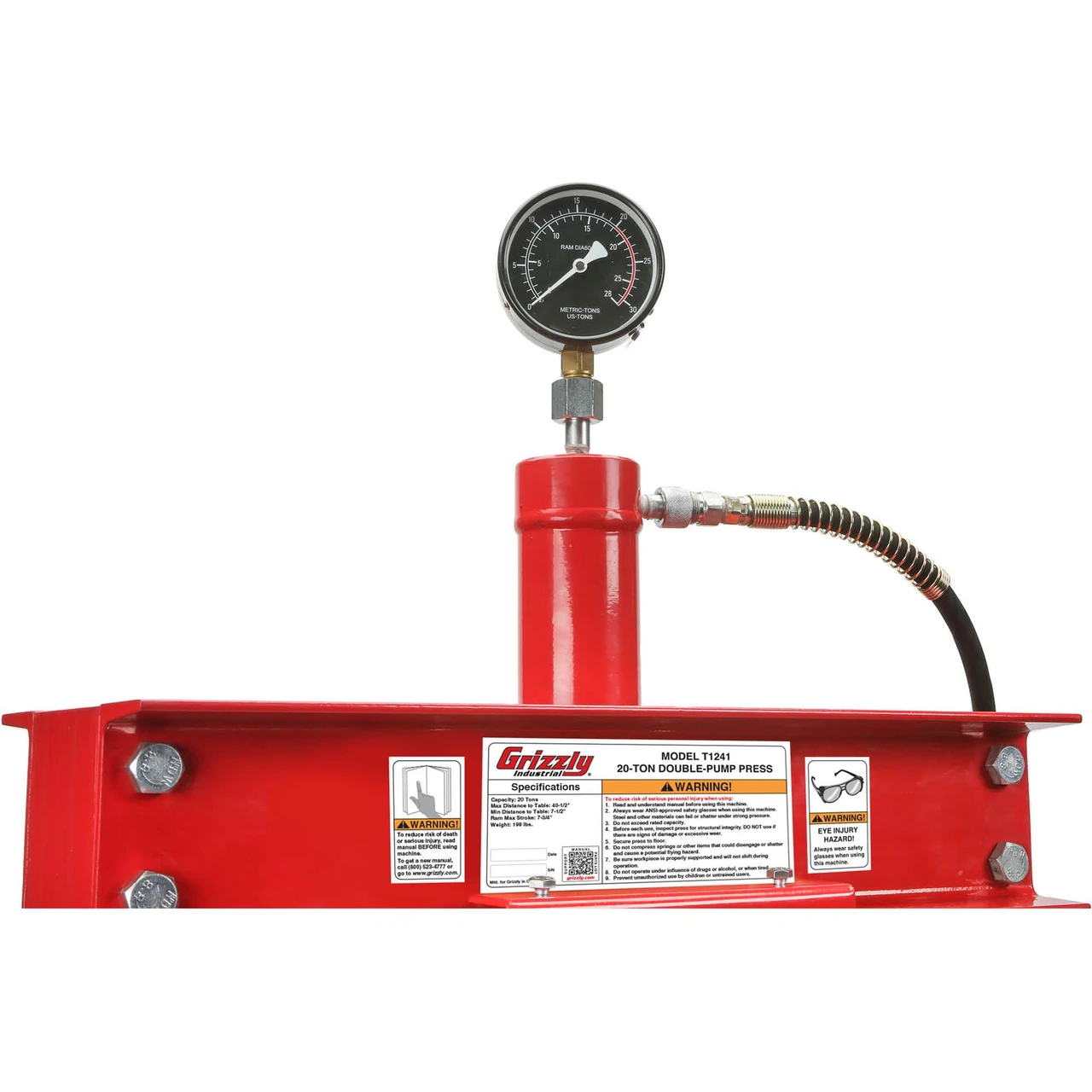

Built-in pressure gauge for precise metric and U.S. ton readings
Includes two steel arbor plates for versatile operations
Product identification
- Brand: Grizzly Industrial
- Model / MPN: T1241
