Jet chain hoist 3 ton details

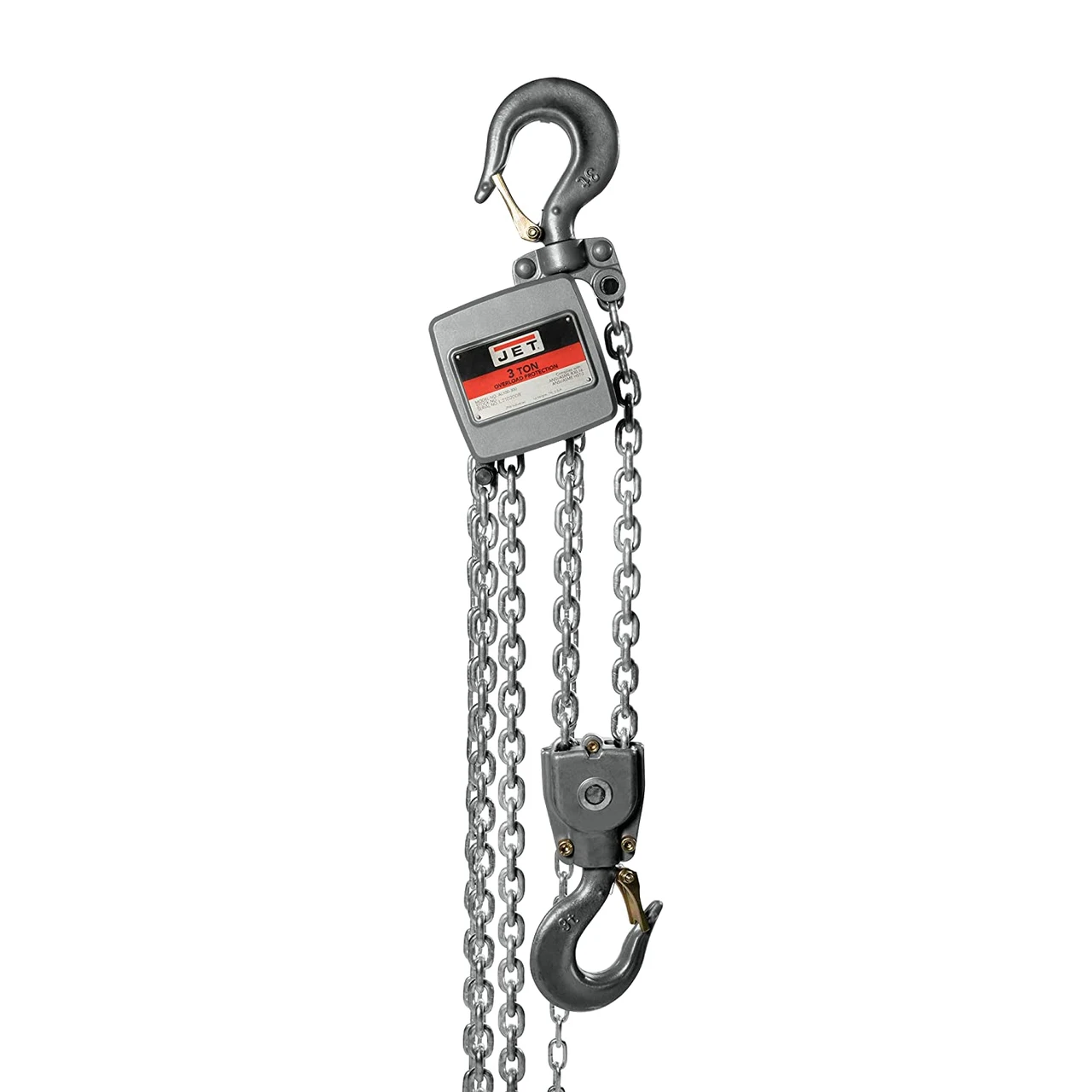

Jet AL100-300-30 3-Ton Hand Chain Hoist w/ 30' Lift (133330)
The Jet AL100-300-30 3-Ton Hand Chain Hoist w/ 30' Lift (133330) is a robust 3-ton hand chain hoist designed for efficient lifting of heavy materials. With a 30-foot lift capacity and compact design, it's perfect for various applications, from construction sites to industrial workshops.
KEY FEATURES AND BENEFITS:
Powerful Lifting: Easily lift up to 3 tons (6700 lbs) with minimal effort.
Compact Design: Smaller headroom for working in tight spaces.
Durable Construction: Built to withstand demanding work environments.
Safe Operation: Equipped with cast steel safety latches and dual pawl Weston style brake.
Easy to Use: Large hand chain opening for convenient operation.
Load Capacity: 3 tons (6700 lbs)
Lift Height: 30 feet
Load Chain Dimension: 7.1 x 19.9 mm
Hand Chain to Lift Load 1': 143
Headroom: 18-1/2"
Lbs. of Pull to Lift Capacity: 114
Net Weight: 81.61 lbs
Number of Fall: 2
Inspect: Before use, carefully inspect the chain hoist for any damage or wear.
Attach Load: Securely hook the load chain to the lifting point of the load.
Position Hoist: Ensure the hoist is securely mounted and positioned for safe operation.
Lifting: Gradually pull the hand chain to lift the load. Avoid sudden jerks.
Lowering: Slowly release the hand chain to lower the load.
Storage: Store the hoist in a dry, protected area when not in use.
BENEFITS OF USING JET AL100-300-30 3-TON HAND CHAIN HOIST W/ 30' LIFT (133330):
Increased Efficiency: Quickly and effortlessly lift heavy materials.
Improved Safety: Reduces the risk of injuries from manual lifting.
Versatility: Suitable for a wide range of applications.
Cost-Effective: Durable construction ensures long-lasting performance.
Extra large hand chain opening for comfortable grip
Sealed housing protects internal components from debris
Meets industry safety standards (ANSI/ASME B30.16 and HAST-2)
Grade 100 load chain for superior strength and durability
Patented fused brake design for reliable stopping power
Product identification
- Brand: Jet
- Model / MPN: 133330
