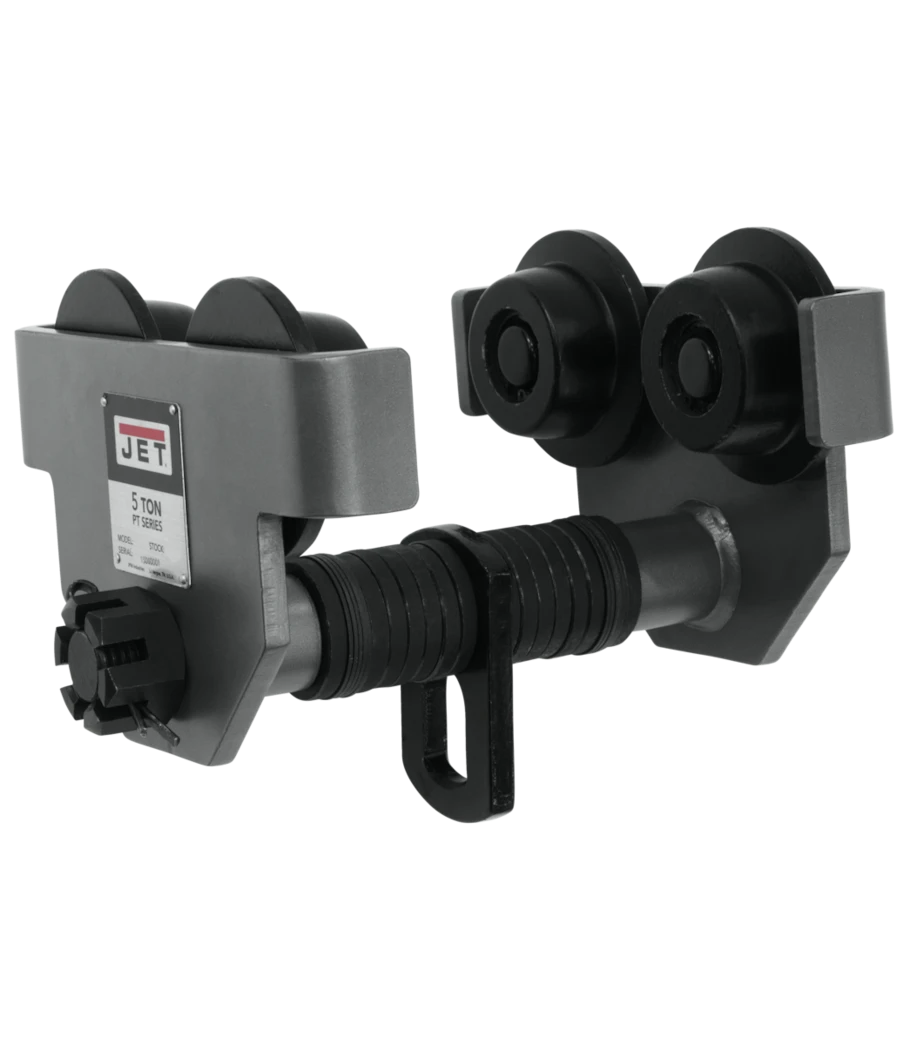

Jet 5-PT 5 Ton Plain Trolley, Fits 4-5/8-8" Wide Beam (252050)
Jet 5-PT 5 Ton Plain Trolley, Fits 4-5/8-8" Wide Beam (252050) is a robust and reliable solution for lifting and moving heavy loads in industrial settings. Engineered for durability and safety, this trolley is designed to handle demanding tasks while prioritizing the well-being of operators.
KEY FEATURES AND BENEFITS:
High Load Capacity: The trolley can safely lift and move loads up to 5 tons (11,000 lbs.), making it ideal for a wide range of applications.
Wide Beam Compatibility: It fits beams ranging from 4-5/8 inches to 8 inches wide, offering flexibility for different work environments.
Durable Construction: Made from welded heavy-gauge steel with a powder coat finish, the trolley resists wear and corrosion for long-lasting performance.
Smooth Movement: Large hardened steel wheels and double-sealed lubricated ball bearings ensure smooth and effortless movement on various beam types.
Enhanced Safety: Built-in bumper guards protect the trolley and its surroundings, and the design complies with OSHA regulations and ANSI/ASME standards.
Adjustable Design: Easily adapt the trolley to different beam types using the included spacer washers.
Capacity: 5 tons (11,000 lbs)
Beam Flange Width: 4-5/8" to 8"
Beam Height: 5" to 19"
Minimum Curve Radius: 55"
Dimensions: 17" L x 8" W x 12" H
Model Number: 5-PT
Part Number: 252050
UPC: 66275522332
Preparation: Ensure the trolley is compatible with the beam type and size. Adjust it using spacer washers if necessary.
Attachment: Attach the trolley to the beam by placing the wheels on the beam flange and ensuring it's securely seated.
Connection: Connect your hoist (not included) to the trolley's load hook.
Load Placement: Position the load to be lifted under the hoist hook and securely attach it.
Movement: Carefully push or pull the trolley along the beam to the desired location.
Lowering: Use the hoist controls to lower the load to the desired position.
Disconnection: Disconnect the load from the hoist and then detach the hoist from the trolley.
BENEFITS OF USING THE Jet 5-PT 5 Ton Plain Trolley, Fits 4-5/8-8" Wide Beam (252050):
Increased Efficiency: Quickly and easily move heavy loads, saving time and labor.
Improved Safety: Reduces the risk of injury associated with manual lifting and carrying.
Versatility: Suitable for various industrial and manufacturing applications.
Durability: Built to withstand demanding conditions, ensuring long-term value.
Welded heavy gauge steel frame with powder coat finish
Hardened large steel wheels
Thicker double-sealed lubricated ball bearings
Built-in bumper guards
Adjustable to fit different beam types
Product identification
- Brand: Jet
- Model / MPN: 252050
