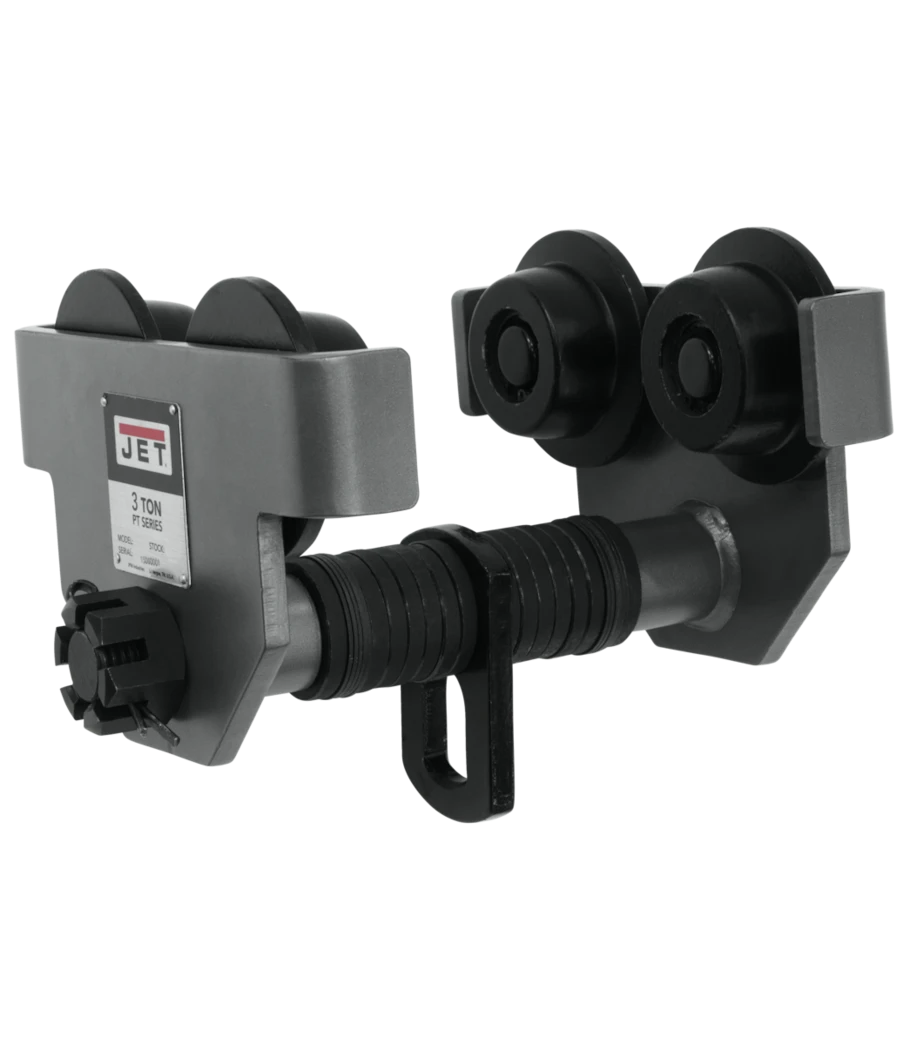

Jet 3-PT 3 Ton Heavy Duty Plain Trolley, Fits 4-8" Wide Beam (252030)
The Jet 3-PT 3 Ton Heavy Duty Plain Trolley, Fits 4-8" Wide Beam (252030) is a heavy-duty manual trolley designed for safely and efficiently moving heavy loads on overhead beams. Built with durability and performance in mind, this trolley is a reliable tool for various industrial and construction applications.
KEY FEATURES AND BENEFITS:
Robust Construction: Made from heavy-gauge steel for exceptional strength and durability.
Safe Operation: Equipped with built-in bumper guards to protect the trolley and extend its life.
Smooth Movement: Features hardened steel wheels and double sealed ball bearings for easy maneuverability.
Versatility: Fits beam widths from 4 to 8 inches, accommodating various applications.
Compliance: Meets OSHA, ANSI/ASME B30.11, and B30.17 safety standards.
Capacity: 3 tons
Beam Flange Width: 4-8 inches
Beam Height: 5-19 inches
Minimum Beam Radius Curve: 51 inches
Dimensions: 15.6" L x 6.8" W x 10.8" H
Weight: 84.6 lbs
Finish: Powder coat
Inspect the Trolley: Before use, carefully examine the trolley for any signs of damage or wear.
Select Appropriate Beam: Ensure the beam width is compatible with the trolley (4-8 inches).
Attach Trolley: Securely attach the trolley to the beam using the provided spacers or washers.
Load Distribution: Distribute the load evenly on the trolley platform.
Manual Operation: Push or pull the trolley along the beam to move the load.
Safety Precautions: Always wear appropriate safety gear and follow load capacity limits.
BENEFITS OF USING Jet 3-PT 3 Ton Heavy Duty Plain Trolley, Fits 4-8" Wide Beam (252030):
Increased Efficiency: Smooth operation and maneuverability save time and effort.
Improved Safety: Sturdy construction and safety features protect workers and equipment.
Cost-Effective: Durable design ensures long-term use and reduces replacement costs.
Versatility: Adapts to various beam sizes for flexibility in different work environments.
Heavy-duty steel construction
Hardened steel wheels
Double sealed ball bearings
Built-in bumper guards
Adjustable spacers
OSHA, ANSI/ASME compliant
Product identification
- Brand: Jet
- Model / MPN: 252030
