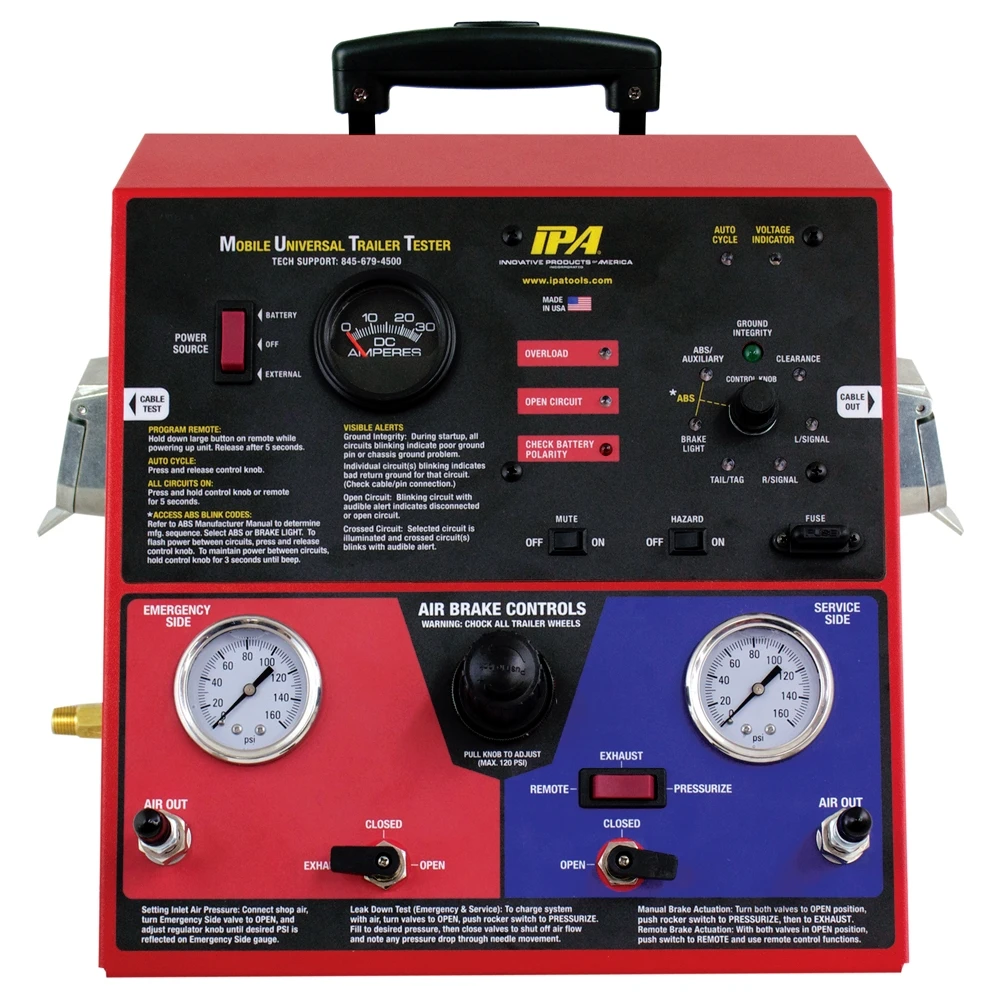

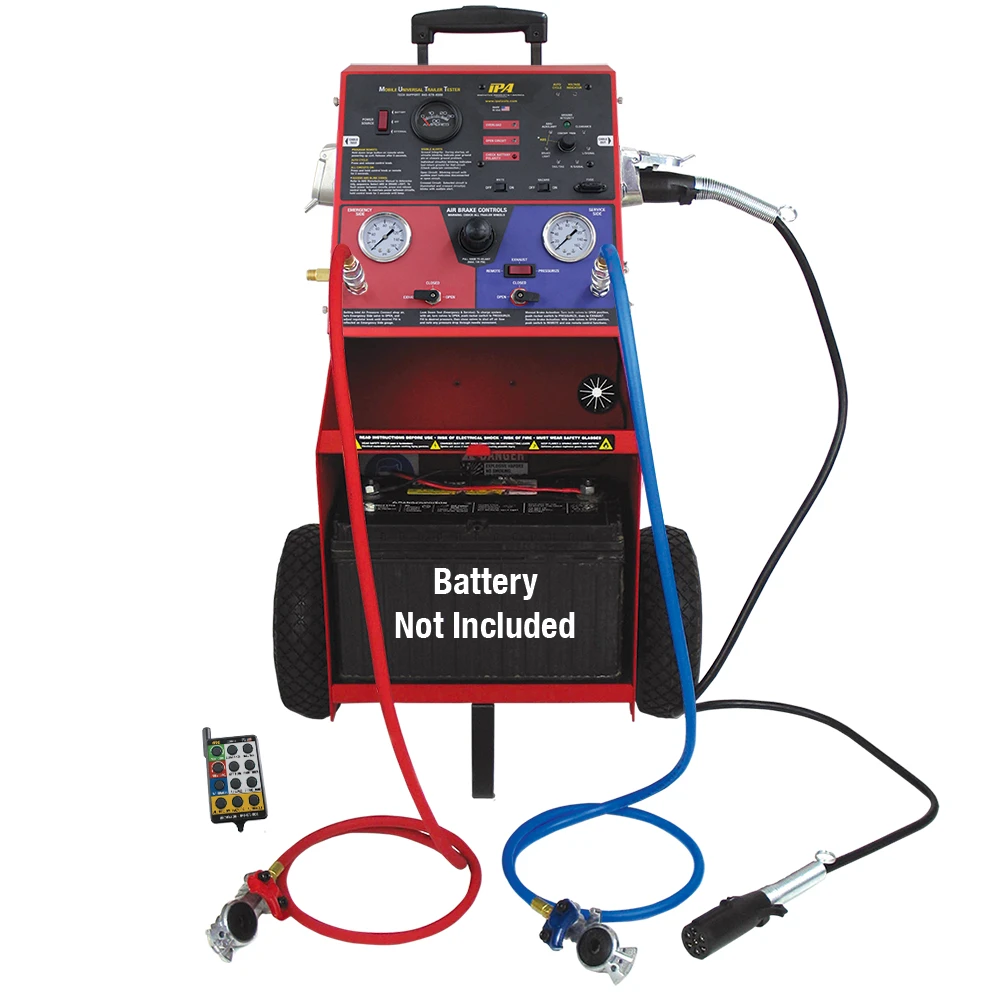

Innovative Products of America 9008-SE Super MUTT Trailer Tester Standard
Innovative Products of America 9008-SE Super MUTT Trailer Tester Standard Edition
This intuitive and durable design is ideal for both on and off-site commercial trailer testing and repairs
ELECTRICAL TESTING(12/24 Volt Operation)
Power lights: Manually, all-on, auto scan, or by remote control
Audible and visual alerts: cross, open, overloaded and short circuit indication
Pulsar® mode allows diagnostic repair
Advanced trailer wiring diagnostics
Amperage readout and range (0-20 amps)
Ground failure detection: differentiates between wire and chassis ground
AIR BRAKE TESTING
Performs leak-down test on service and emergency lines
Remote control allows observation of slackers to measure and adjust pushrods
Real-time, repetitive brake activation to find developing problems and verify leaking servo cans
12-button remote control tests all trailer electric circuitry and air brake actuation, 200 ft. range
Sync multiple remotes to one unit
12-Button Remote Control (#MUT-RM12)
5′ 7-Way Cable (#7900K-1)
8′ Red Hose with Gladhands (#7900AP-8RD-AS)
8′ Blue Hose with Gladhands (7900AP-8BL-AS)
Connection Type: 7-Way Round Pin
Power Input: 12V DC
Suggested Battery: Group 31 (or similar battery) or external 12 volt power source
Source Output: 20A @ 12V DC
Max Operating Pressure: 120 psi
Air Input: ¼" npt (120 psi max.)
Controls: Manual, Remote, Automatic
Tires: 10" Pneumatic
Material: Powder-Coated Steel
Dimensions: 21" L x 15" W x 35" H
Product identification
- Brand: Innovative Products of America
- Model / MPN: 9008-SE
