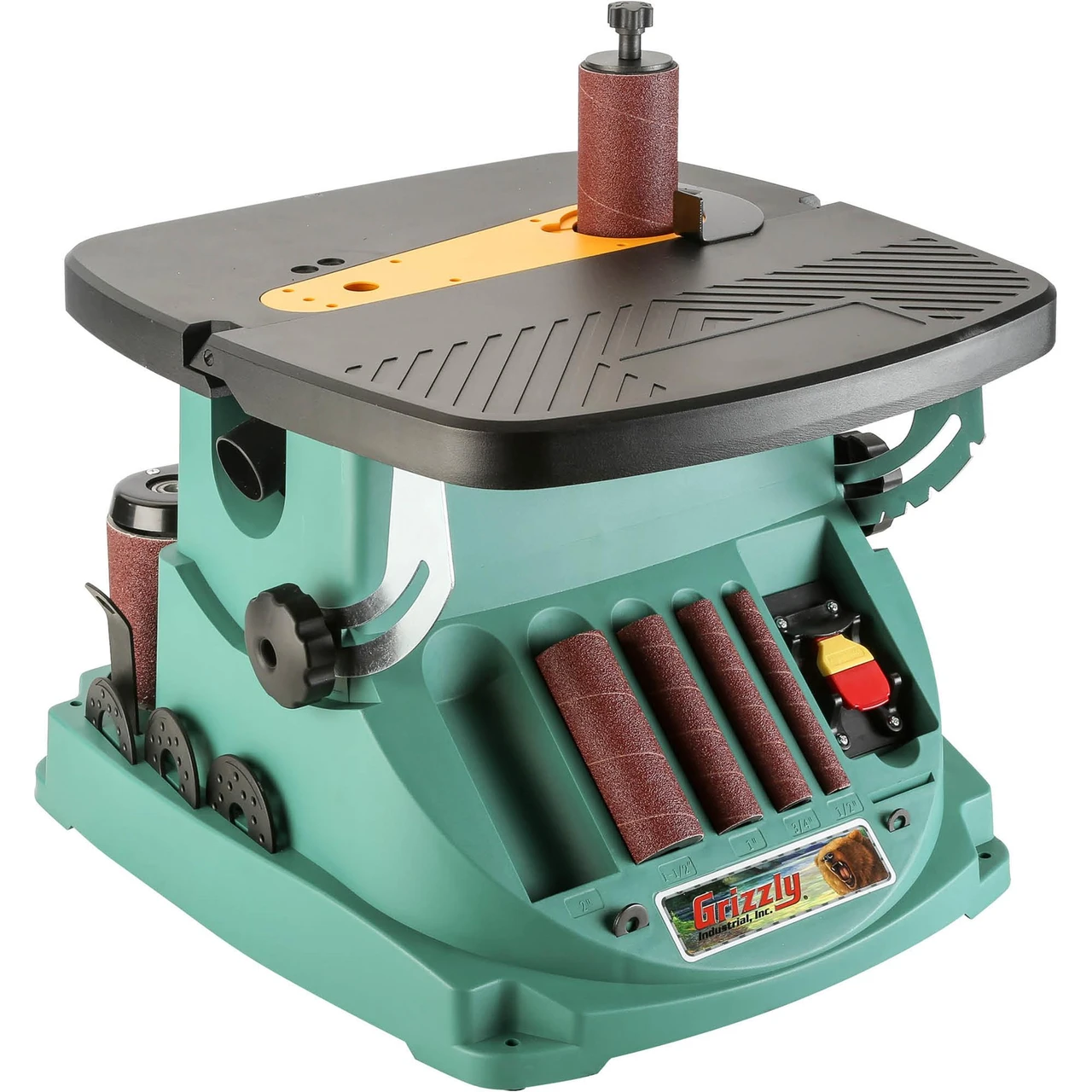

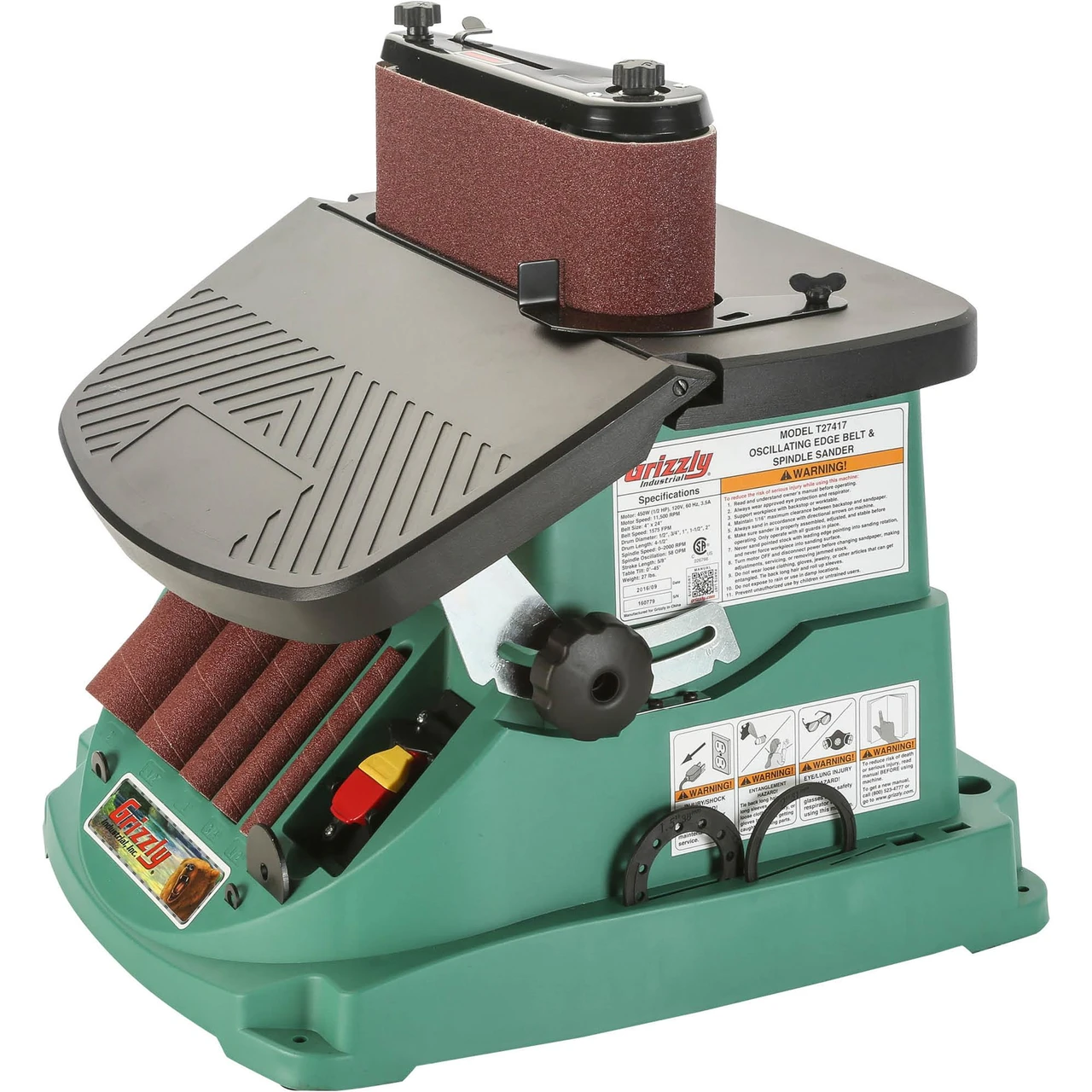

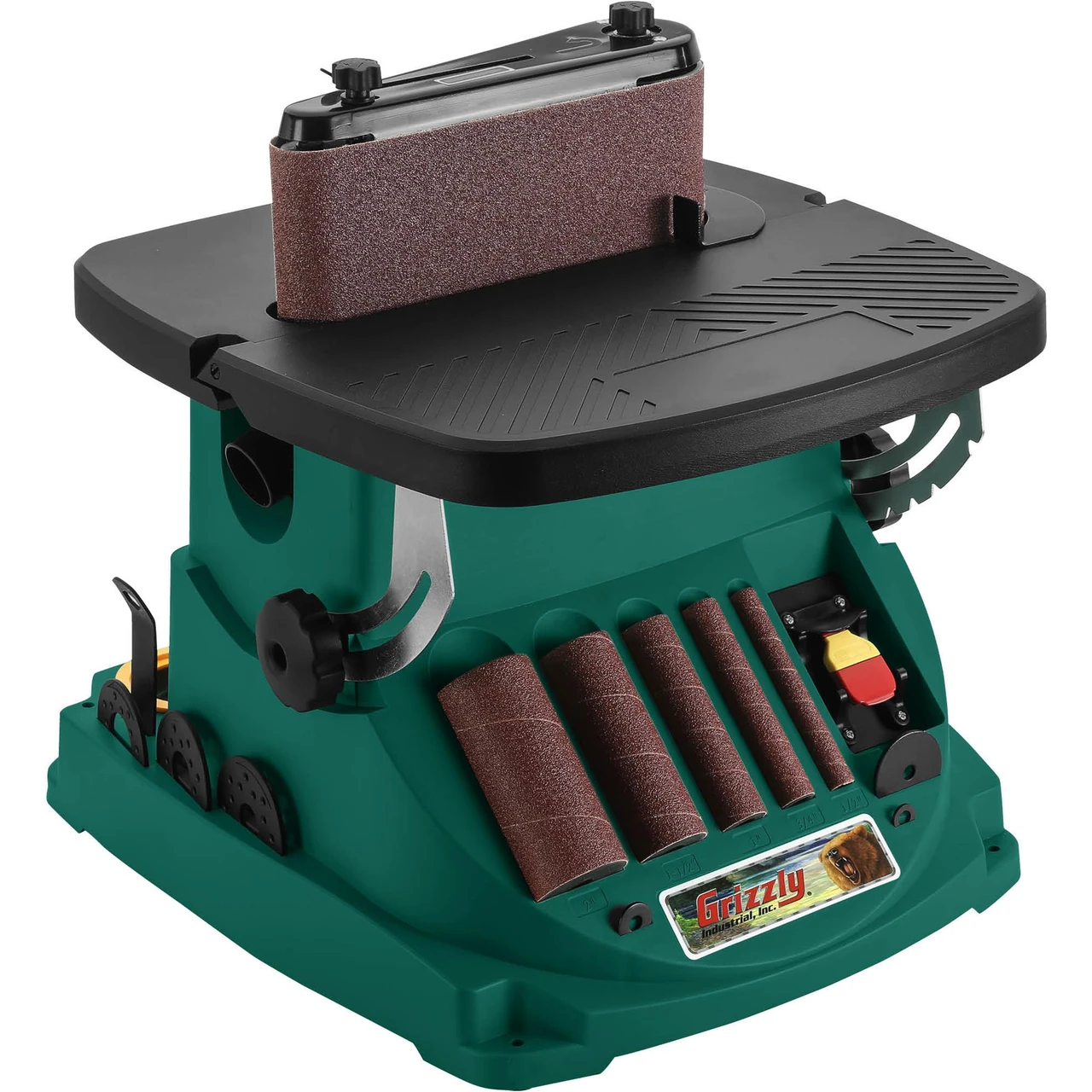

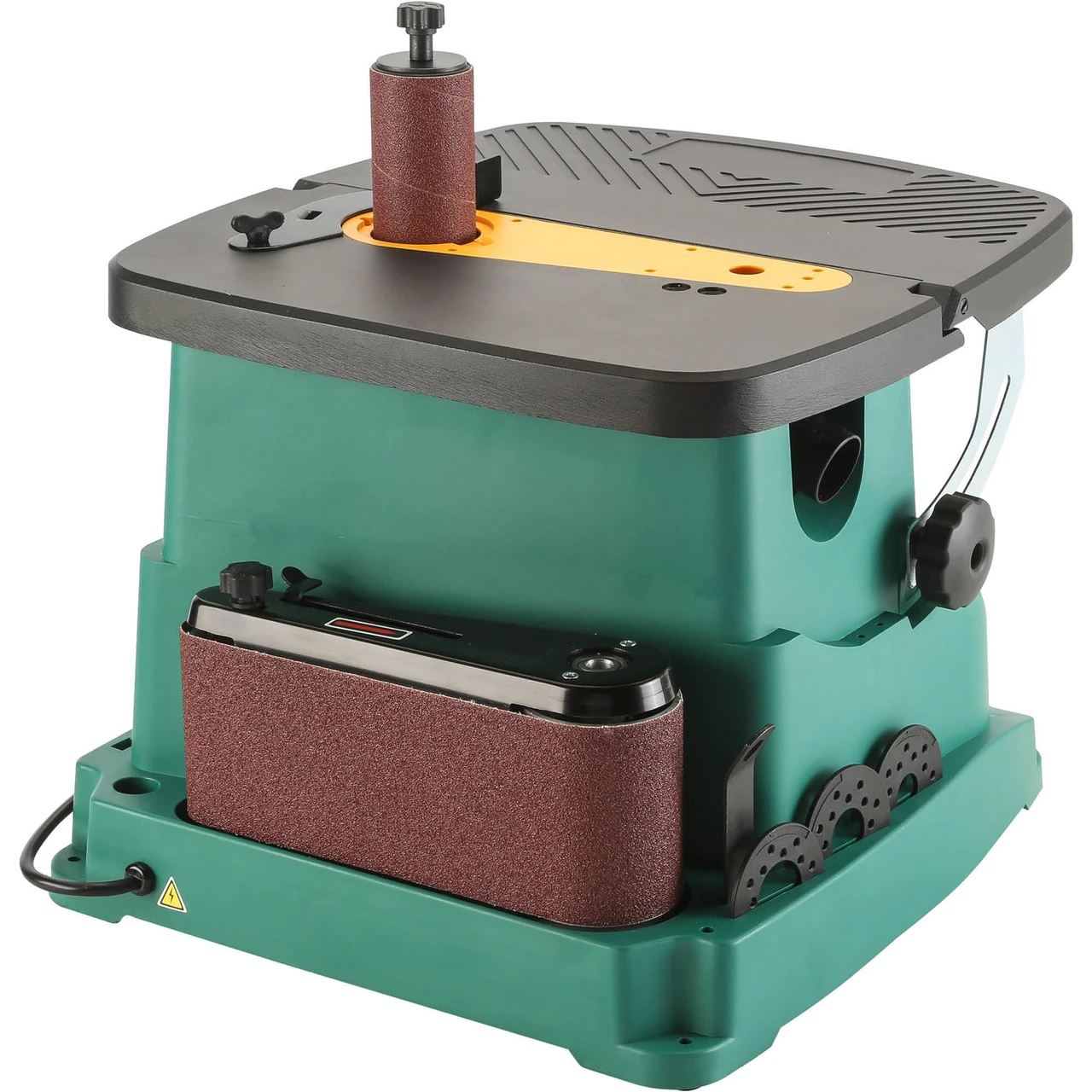

Grizzly Industrial Oscillating Edge Belt and Spindle Sander (T27417)
The Grizzly Oscillating Sander allows for angled sanding while its oscillating spindle movement reduces burning and maximizes sandpaper life. On-board storage keeps your sanding sleeves, drums, table inserts, and edge sanding attachment organized.
Specifications and Dimensions
Motor: 1/2 HP, 120V, single-phase, 3.5A
Spindle speed: 2000 RPM
Spindle stroke: 5/8"
Spindle oscillations: 58 SPM
Spindle diameter: 1/2"
Sanding drum length: 4-1/2"
Sanding drum diameters: 3/4", 1", 1-1/2", 2"
Sanding belt speed: 1575 FPM
Sanding belt dimensions: 4" x 24"
Platen dimensions: 4" x 6-1/8"
Table size: 16-1/4" x 16-3/4"
Table tilt: 0–45°
Dust port size: 1-1/2"
Overall dimensions: 16-1/2" W x 18-1/2" D x 18-1/2" H
Key Features and Benefits
Quickly converts from spindle sander to edge belt sander
0–45° tilting table with detents at common angles for precision
Built-in storage for sanding sleeves, drums, and edge sanding attachment
Includes multiple sanding drums, belts, and sleeves for versatility
Product identification
- Brand: Grizzly Industrial
- Model / MPN: T27417
