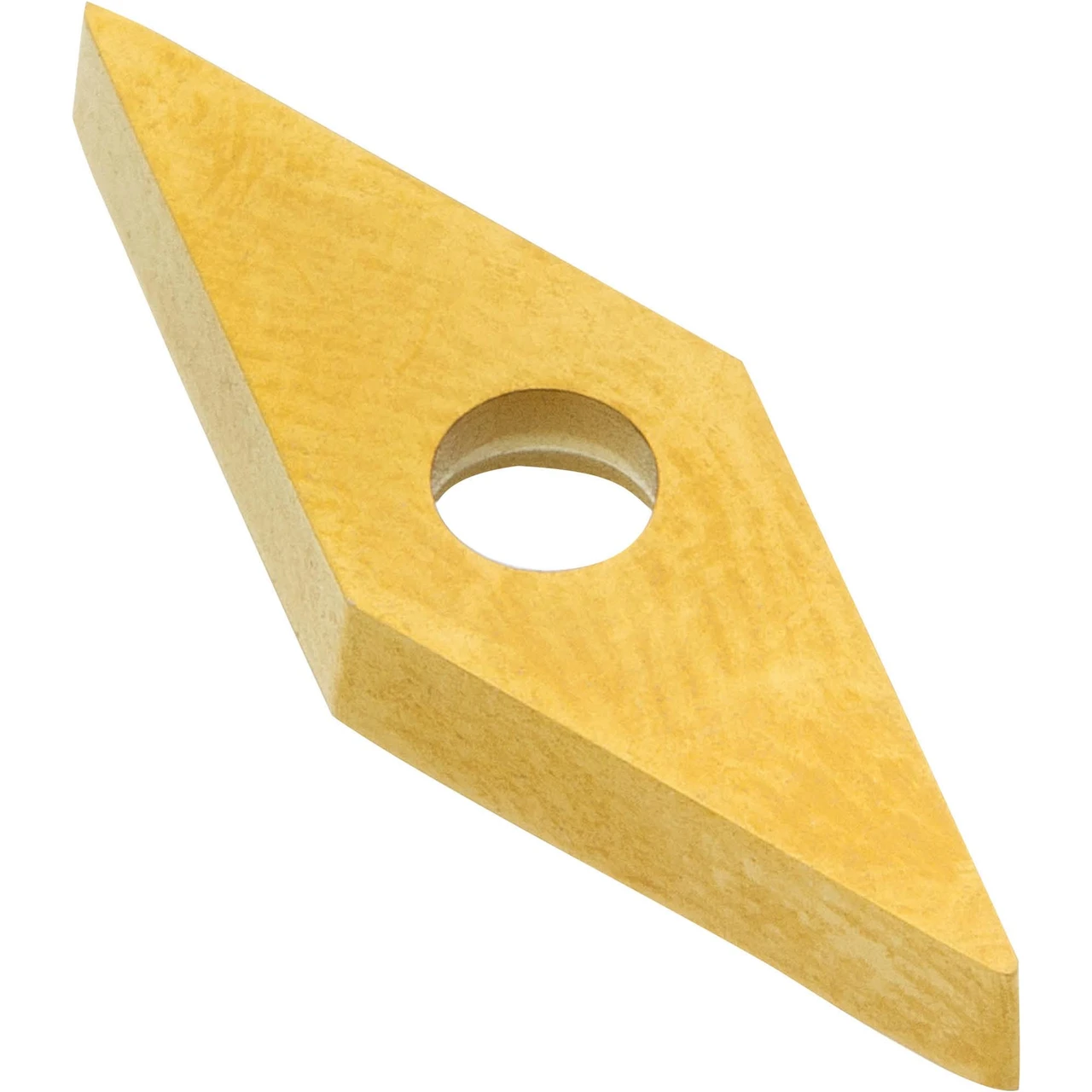

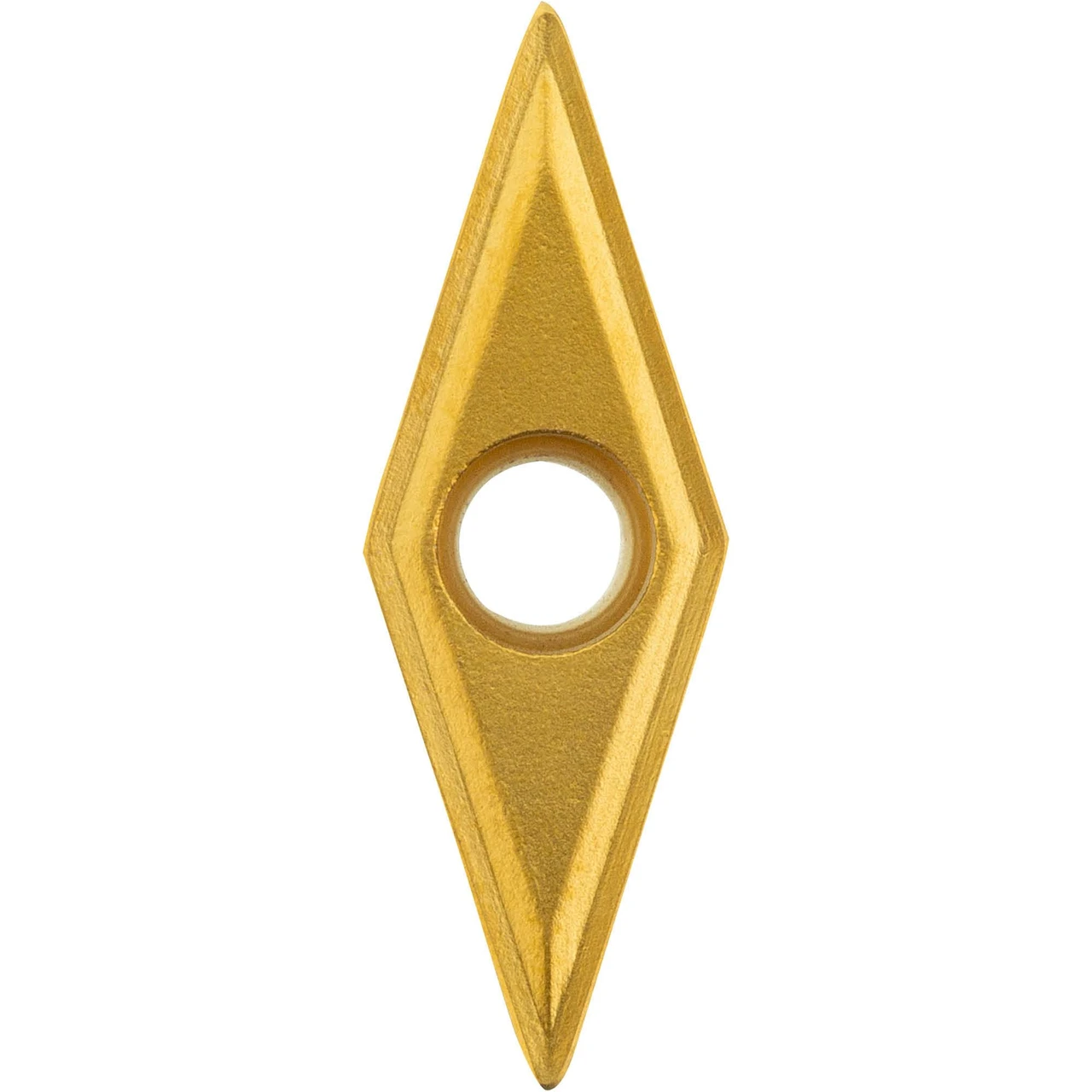

Grizzly Industrial Carbide Insert for Steel (T28799, T28800)
Grizzly Industrial Carbide Insert for Steel is engineered for precision turning and profiling applications. With a 35° diamond shape and TiN coating, this insert ensures superior performance and durability when cutting stainless steel. Its inscribed circle and screw holding method provide secure placement during high-precision operations.
Perfect for machinists handling demanding materials, this carbide insert delivers consistent results. The dual cutting edges and optimized relief angle enhance efficiency while maintaining a sharp cutting profile. Use it to achieve smooth and accurate finishes.
Specifications and Dimensions
T28799: Insert style: VBMT, Insert size code: 21.51, Insert shape: Diamond 35°, Inscribed circle: 1/4", Corner radius: 1/64" (0.0157"), Insert material: Carbide, Coating: TiN, Relief angle: 5°, Insert thickness: 3/32", Number of cutting edges: 2, Hole diameter: 0.110", Insert holding method: Screw, Turning/Profiling Toolholders: T10849 and T10850
T28800: Insert style: VBMT, Insert size code: 332, Insert shape: Diamond 35°, Inscribed circle: 0.3757", Corner radius: 0.0313", Insert material: Carbide, Coating: TiN, Relief angle: 5°, Insert thickness: 3/16", Number of cutting edges: 2, Corner radius: 1/32", Hole diameter: 0.173", Insert holding method: Screw, Turning/Profiling Toolholders: T10851
Key Features and Benefits
Designed for turning and profiling stainless steel
TiN-coated for enhanced durability and reduced wear
35° diamond shape for precision machining
Dual cutting edges for extended usage
Secure screw holding method for reliable performance
Product identification
- Brand: Grizzly Industrial
