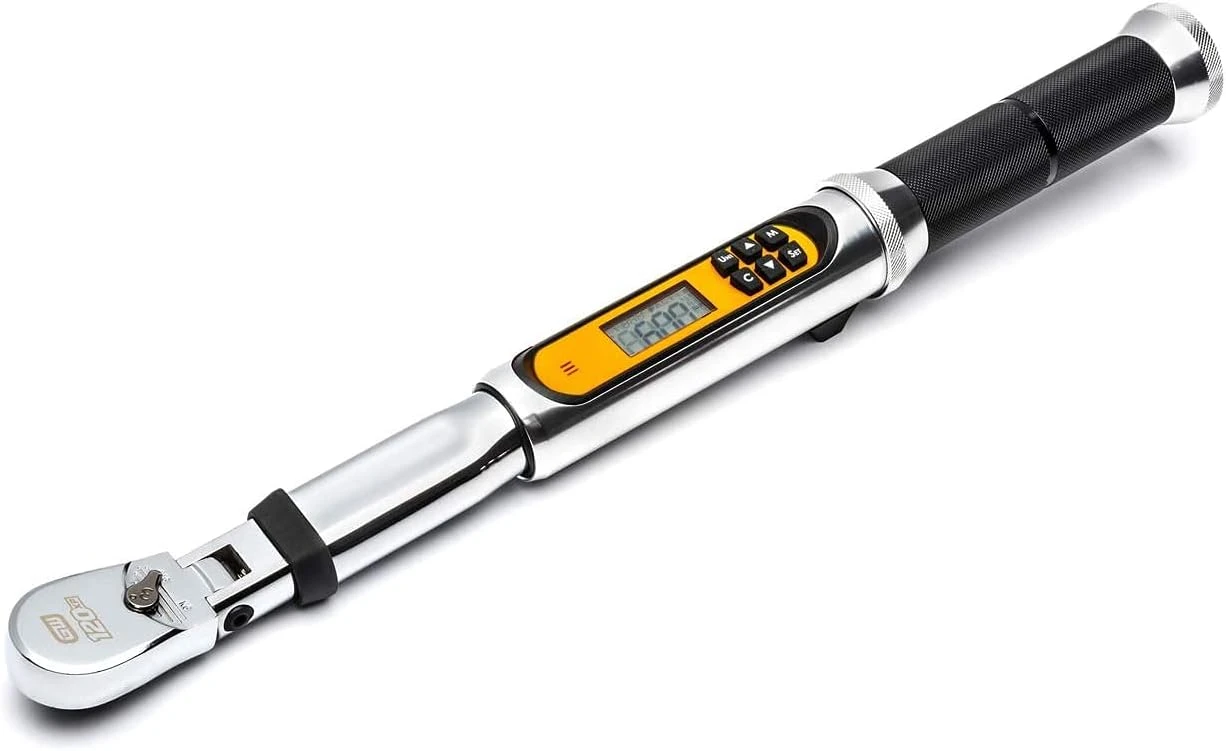

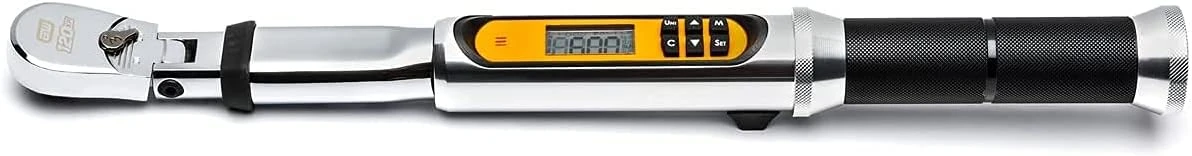

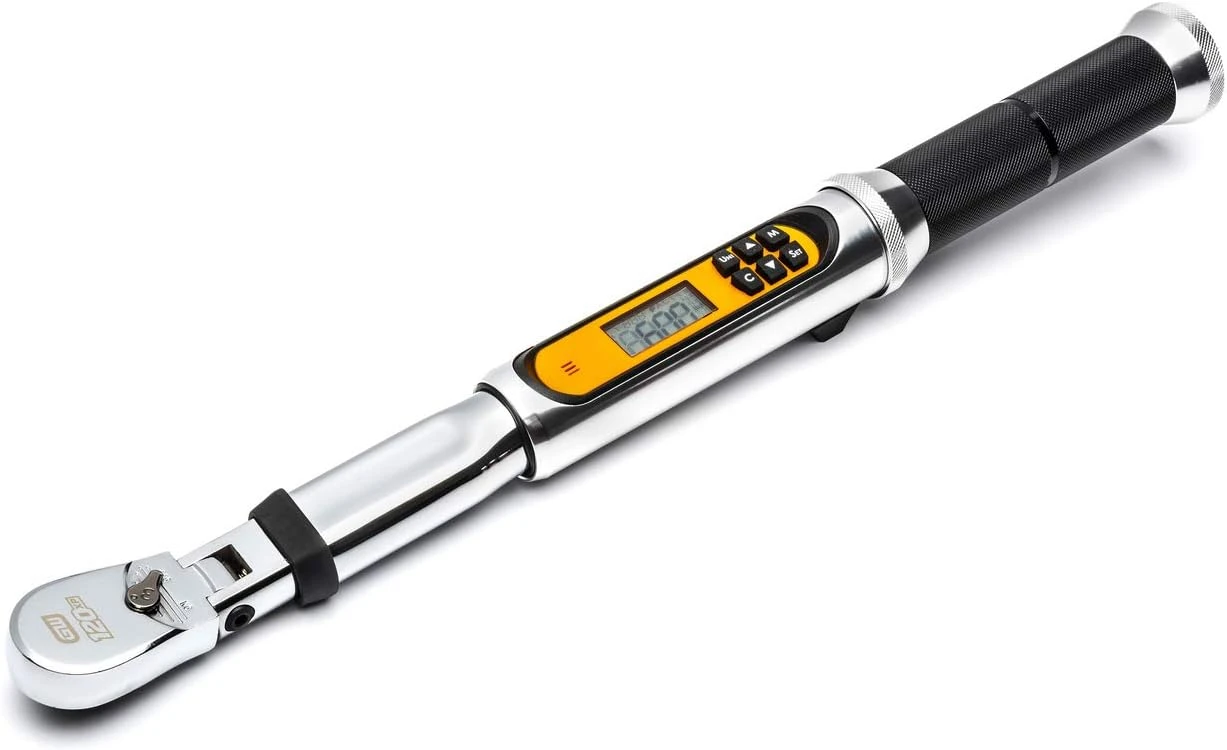

Gearwrench 3/8" 120XP Flex Electronic Torque Wrench (85195)
Gearwrench 85195 3/8" 120XP Flex Head Electronic Torque Wrench with Angle is designed to provide precision and convenience for torque applications. Featuring the 120XP™ head, this wrench offers a 3° ratcheting arc, perfect for turning fasteners in tight spaces. The low-profile tube, 15° flex teardrop head, and flush-mounted on/off switch improve access in confined areas. The torque wrench digitally tracks torque and angle measurements, with alerts provided by a vibrating handle, buzzer, and LCD screen when target torque is reached. With multiple modes and measurement units, this tool offers versatility and accuracy for any task.

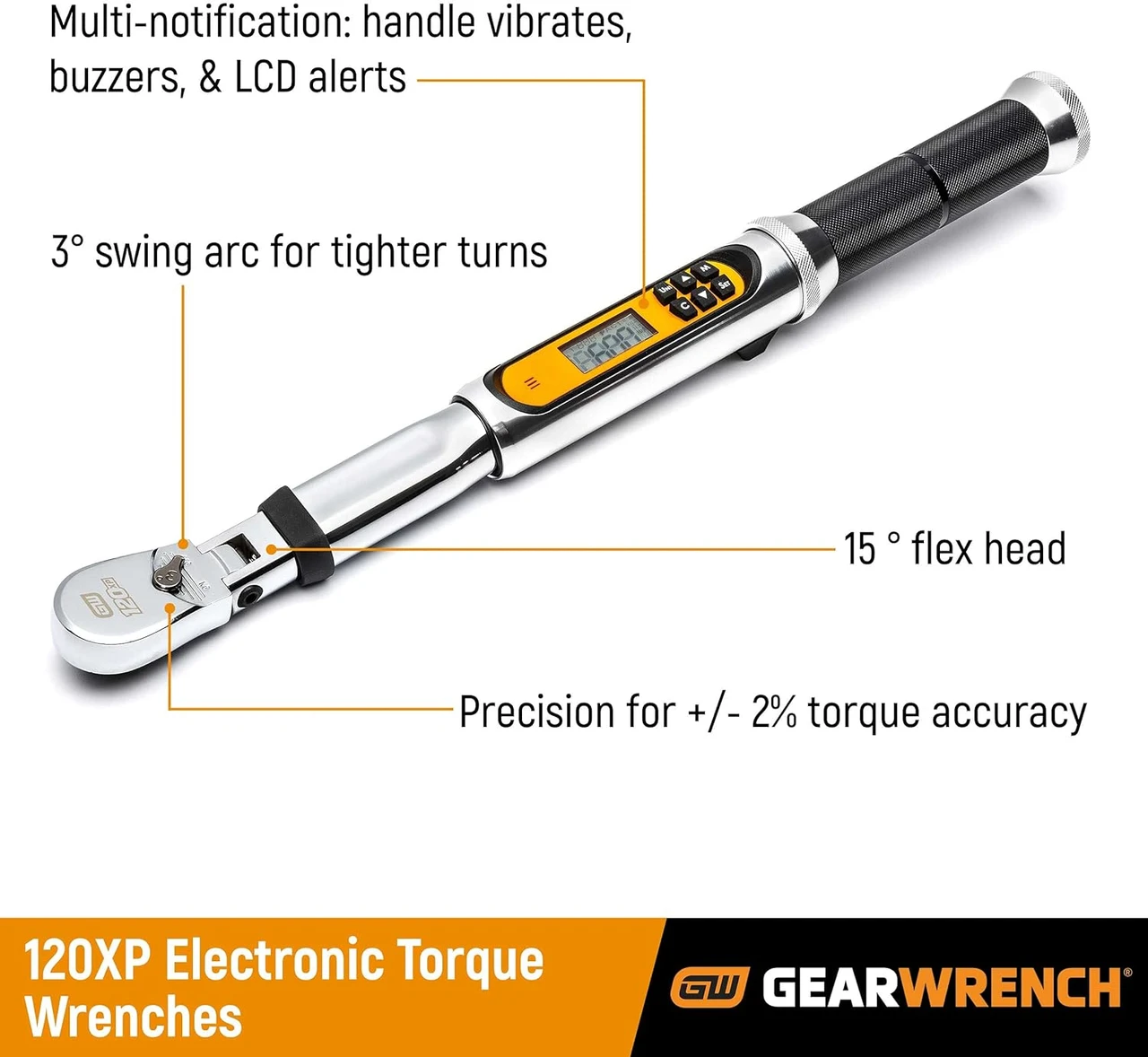

120XP™ head provides a 3° ratcheting arc for working in narrow spaces.
Low-profile tube, 15° flex teardrop head, and flush-mounted on/off switch for better access.

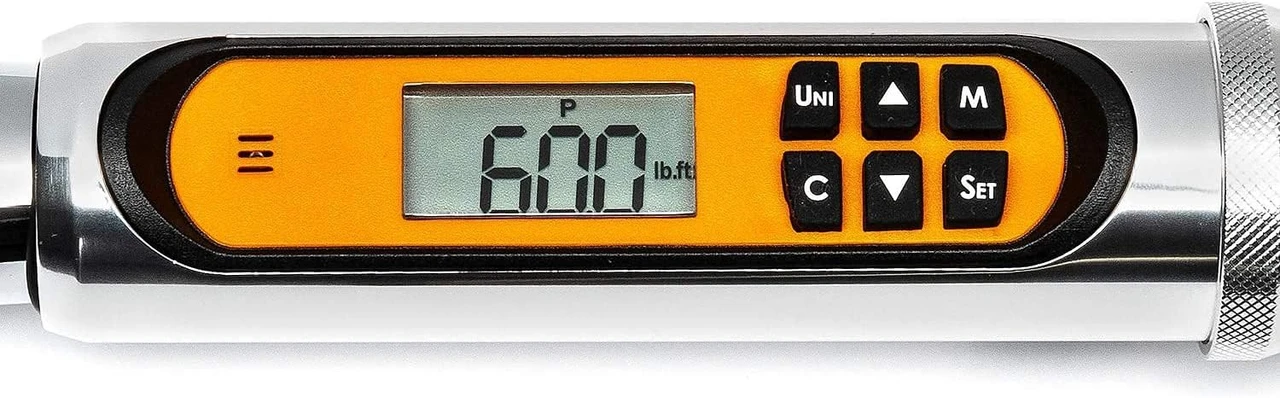

Digitally tracks torque and angle with vibrating handle, buzzer, and LCD screen alerts when target torque is reached.
3 function modes: peak torque, angle, and peak angle for added versatility.
5 torque measurement units: ft-lb, in-lb, Nm, Kg-m, and Kg-cm.
10 available preset torque settings for quick access to frequently used applications.
Torque accuracy of +/-2% CW and +/-3% CCW between 20% and 100% of wrench capability.
Angle settings offer +/-1% of reading for angle accuracy.
Knurled aluminum handle for comfort and precision with clearly marked midpoint for accuracy.
Meets or exceeds ASME standards and specifications.
Ensures high precision in torque and angle measurements.
Offers excellent access in tight spaces with a 120XP™ head and flex head design.
Provides multiple function modes and preset torque settings for quick and efficient use.
Highly accurate with a 2% clockwise and 3% counterclockwise tolerance between 20%-100% range.
Comfortable knurled aluminum handle for ease of use over extended periods.
Technical Specifications:
Foreign Trade Code: 8466100175
Overall Length: 15.87 in
Drive Type: Square
Drive Tang Size: 3/8 in
Tooth Count: 120
Head Thickness: 0.55 in
Head Width: 1.3 in
Finish: Full Polish Chrome
Min Torque (Primary Scale): 10 ft-lb
Max Torque (Primary Scale): 100 ft-lb
Alternate Scale Increments: 0.1 Nm
Primary Scale Increments: 0.1 ft-lb
Min Torque (Alternate Scale): 13.5 Nm
Max Torque (Alternate Scale): 135 Nm
Head Thickness (Less Tang): 0.72 in
Torque Accuracy (20-100% of Full Range): +/-2% Clockwise
Head Length: 2.12 in
Material: Alloy Steel
Product identification
- Brand: Gearwrench
