Gearwrench 120xp micrometer torque wrench details

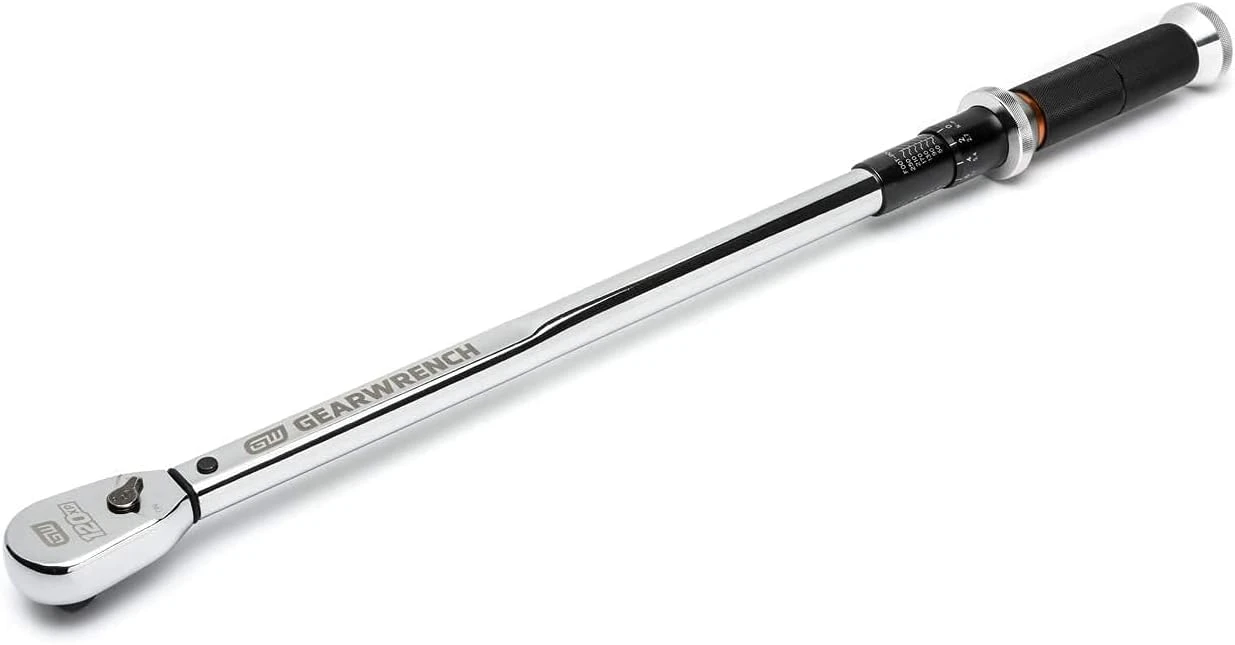

Gearwrench 1/2" Drive 120XP Micrometer Torque Wrench (85181)

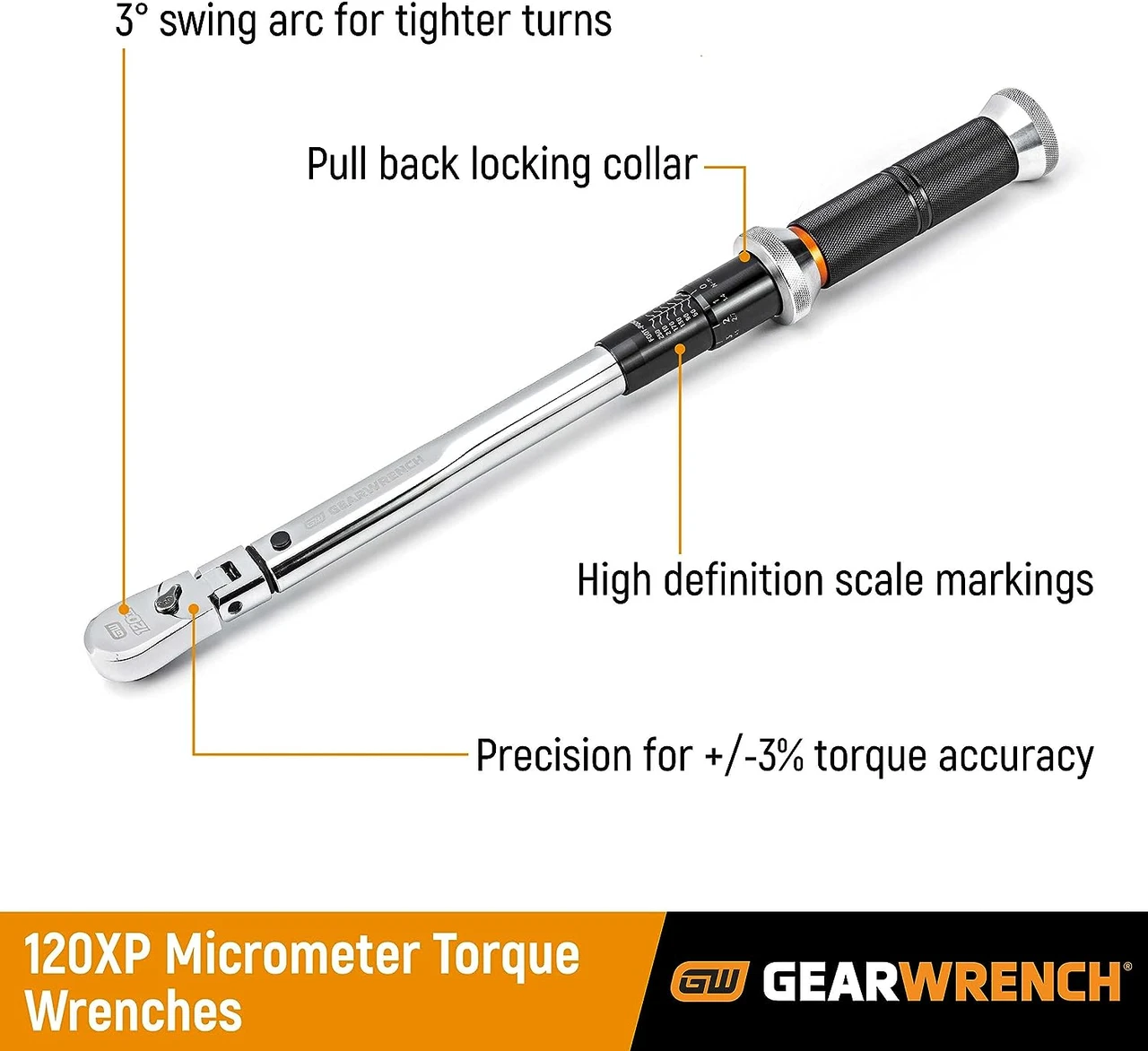

Gearwrench 85181 1/2" Drive 120XP Micrometer Torque Wrench 30-250 ft/lbs is designed for high-performance torque measurement with precision and ease. Featuring the 120XP™ head, it provides a 3° ratcheting arc to access fasteners in tight spaces. The torque accuracy of +/- 3% CW in the upper 80% of the wrench's capability ensures precise results. The wrench has a durable enclosed ratchet head design that resists dirt and debris, along with a low-profile tube, teardrop head, and flush-mounted on/off switch for optimal access. Its high-visibility scale markings and knurled aluminum handle enhance usability and comfort for the user.

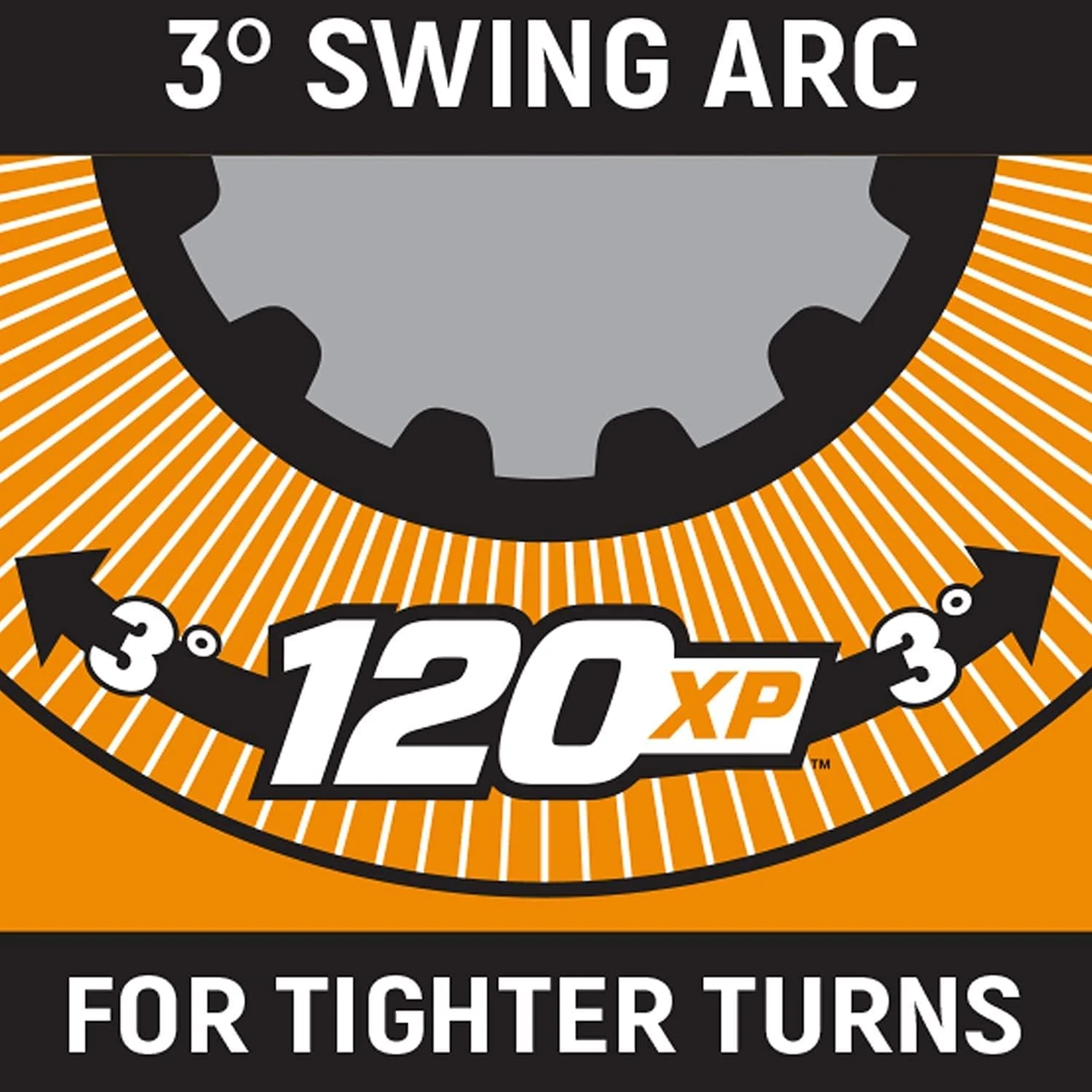

120XP™ head with a 3° ratcheting arc for turning fasteners in narrow spaces.
Torque accuracy of +/- 3% CW in the upper 80% of the wrench's capability.
Enclosed ratchet head resists dirt infiltration for continuous operation.

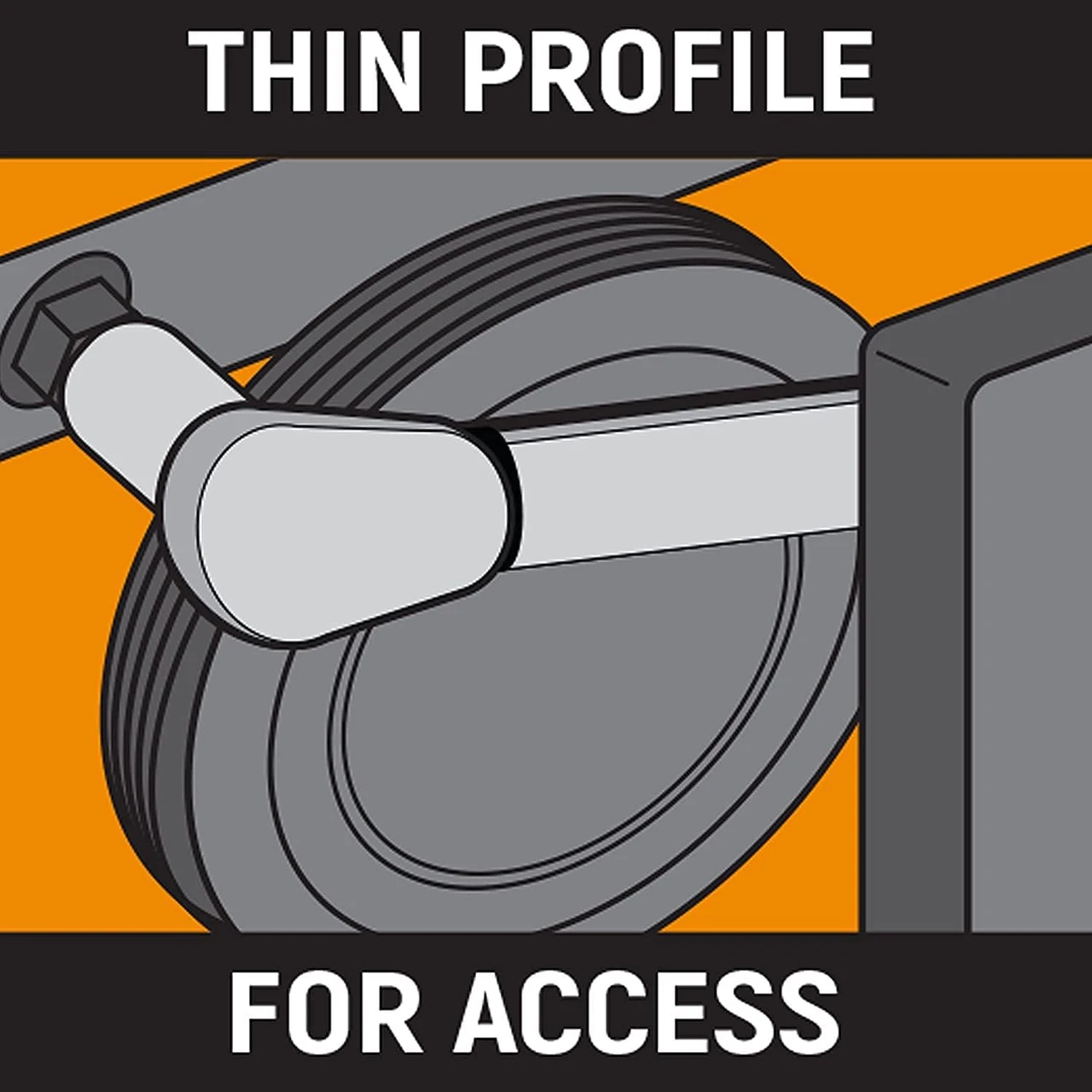

Low-profile tube and teardrop head design for better access in confined spaces.
Highly visible and easy-to-read scale markings.
Knurled aluminum handle ensures comfortable grip and accuracy.
100% steel construction offers lasting durability and strength.
Meets or exceeds ASME B107.300 and exceeds ANSI specifications for load and cycle.

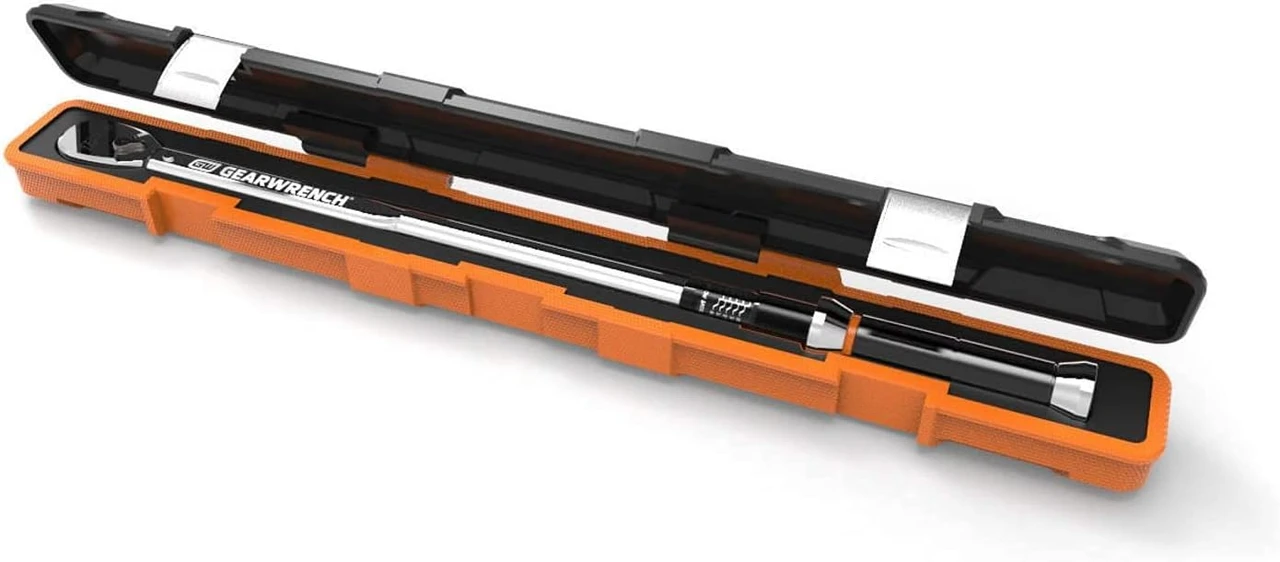

Includes injection-molded case with removable lid and EVA foam insert for secure storage.
Precision and durability, making it ideal for high-performance applications.
Comfortable knurled handle and clear scale markings for easy operation.
Compact design allows for better access to hard-to-reach fasteners.
Reliable calibration accuracy for consistent results over time.
Easy storage and transport with an included molded case.
Technical Specifications:
Foreign Trade Code: 8466100175
Overall Length: 24.875 in
Drive Type: Square
Drive Tang Size: 1/2 in
Tooth Count: 120XP™
Head Thickness: .75 in
Head Width: 1.75 in
Finish: Full Polish Chrome
Min Torque (Primary Scale): 30 ft-lb
Max Torque (Primary Scale): 250 ft-lb
Alt Scale Increments: 2.7 Nm
Primary Scale Increments: 2 ft-lb
Min Torque (Alt Scale): 54.2 Nm
Max Torque (Alt Scale): 352.6 Nm
Head Thickness Less Tang: .75 in
Torque Accuracy (20-100% of Full Range): +/-3% Clockwise
Head Length: 2.562 in
Material: Alloy Steel
Weight (Catalog): 3.7 lb
Length: 24-7/8 in
Product identification
- Brand: Gearwrench
