Gearwrench 1/4" 120XP Flex Electronic Torque Wrench (85194)

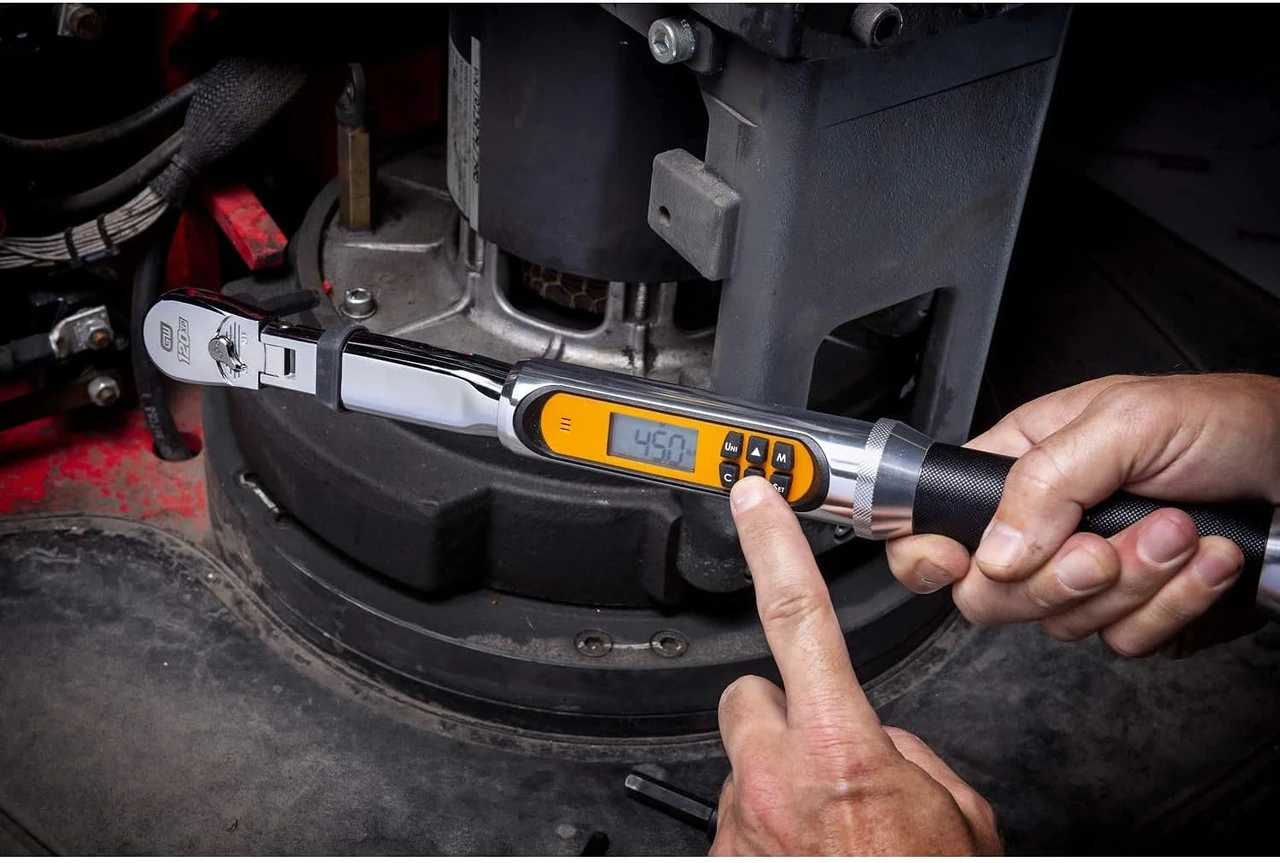

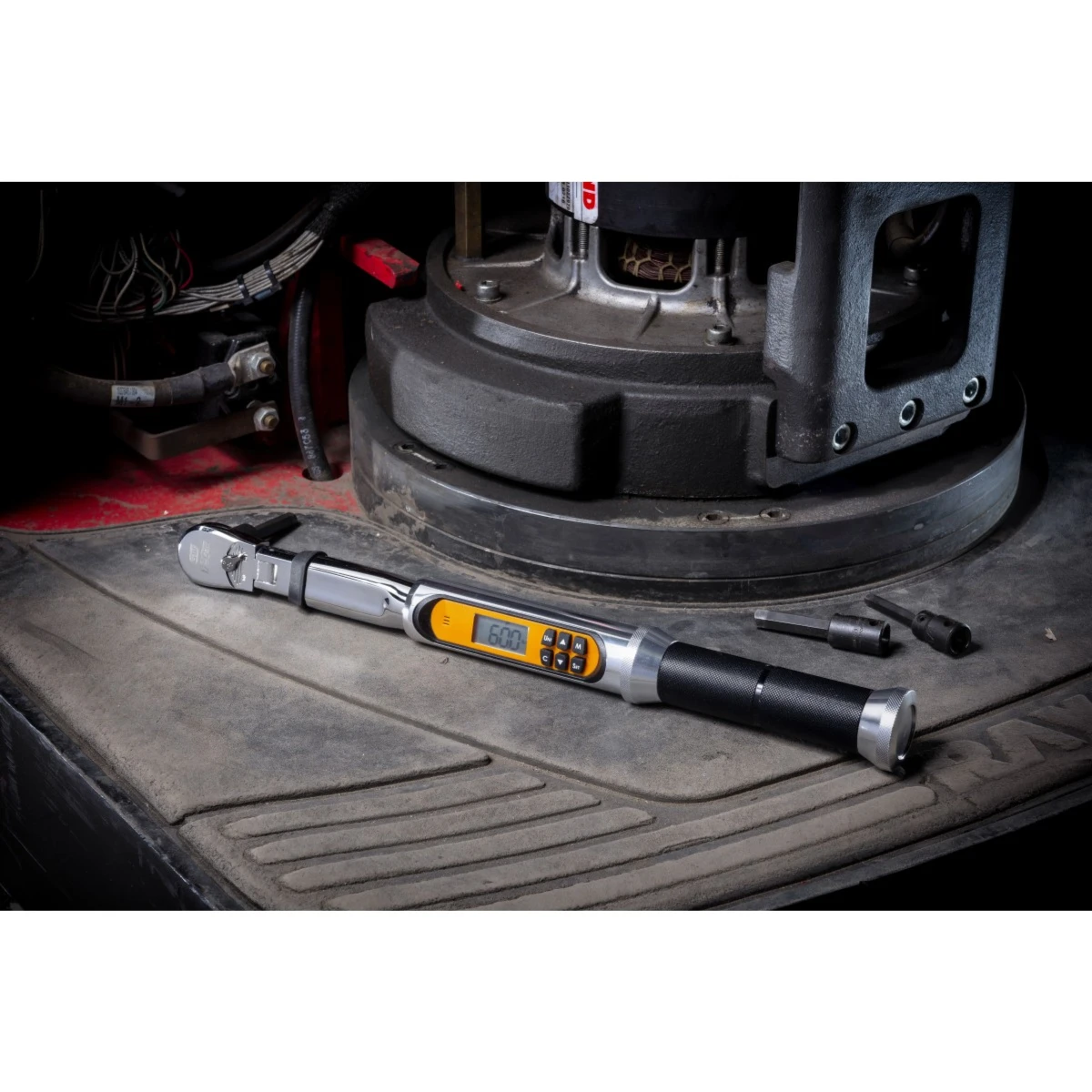

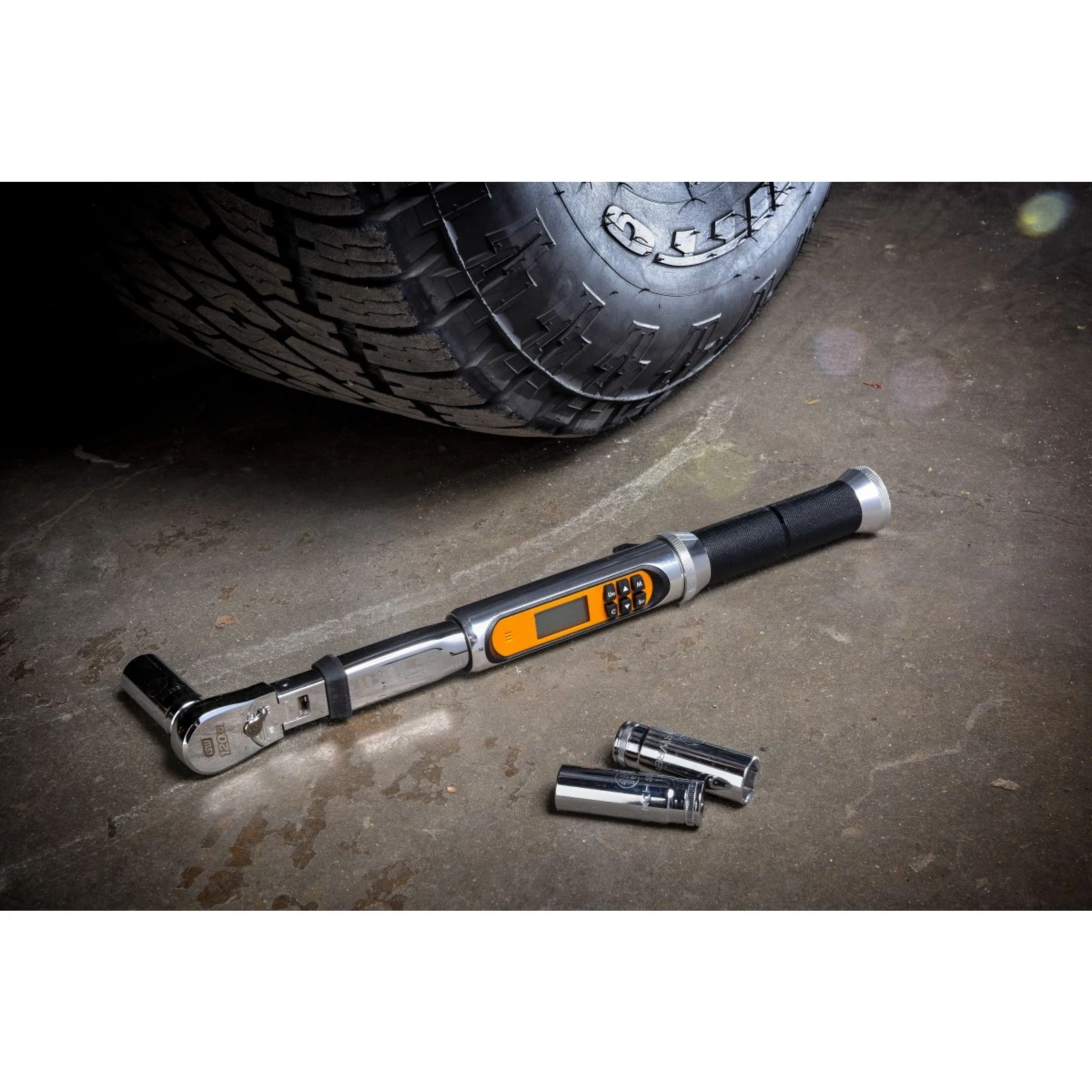

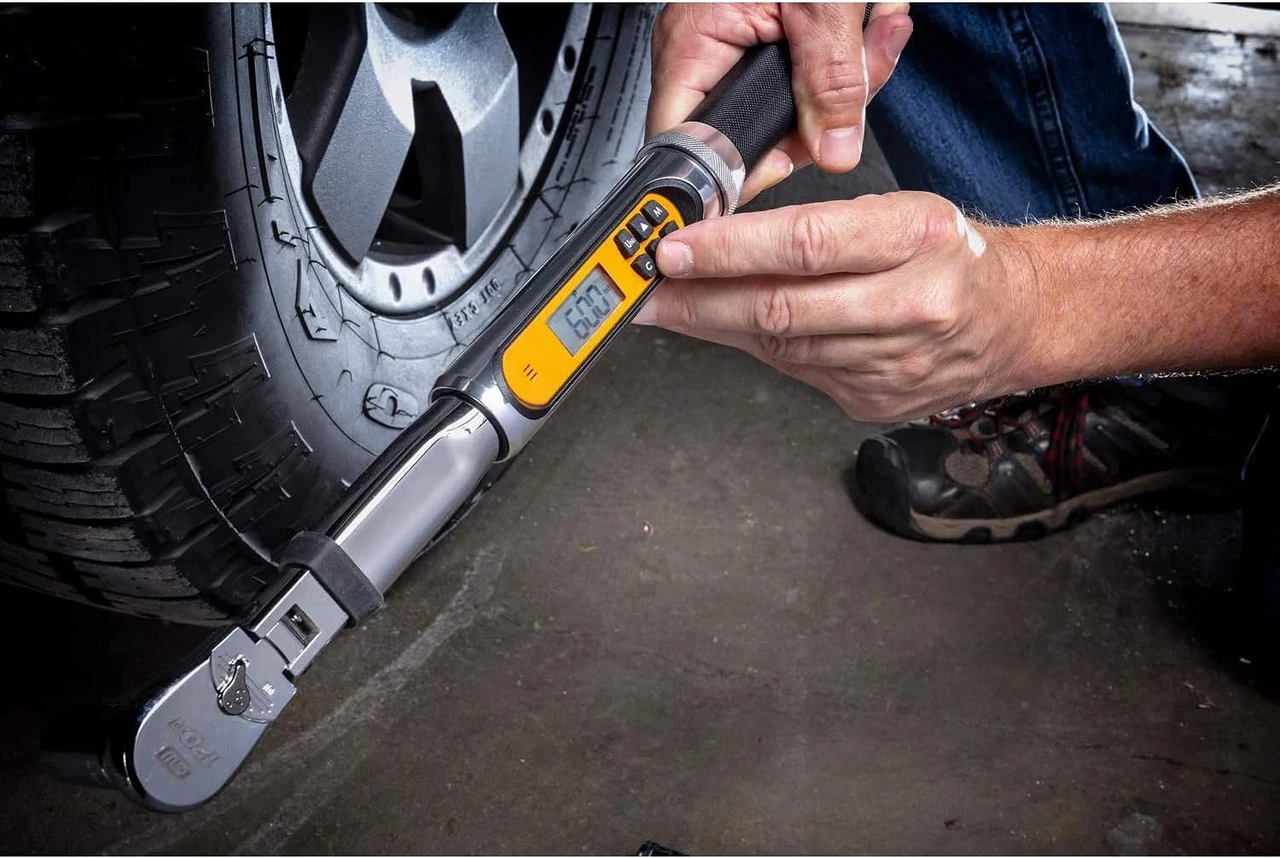

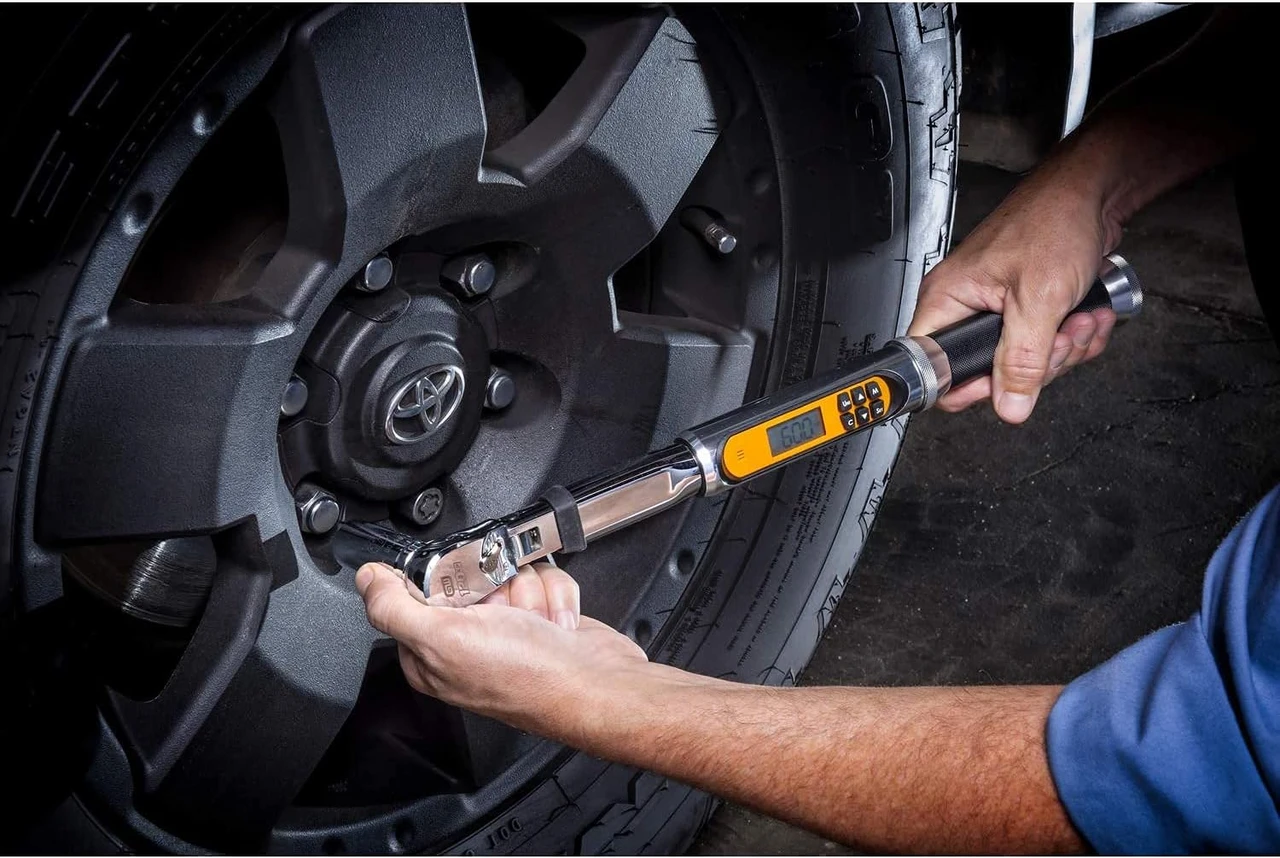

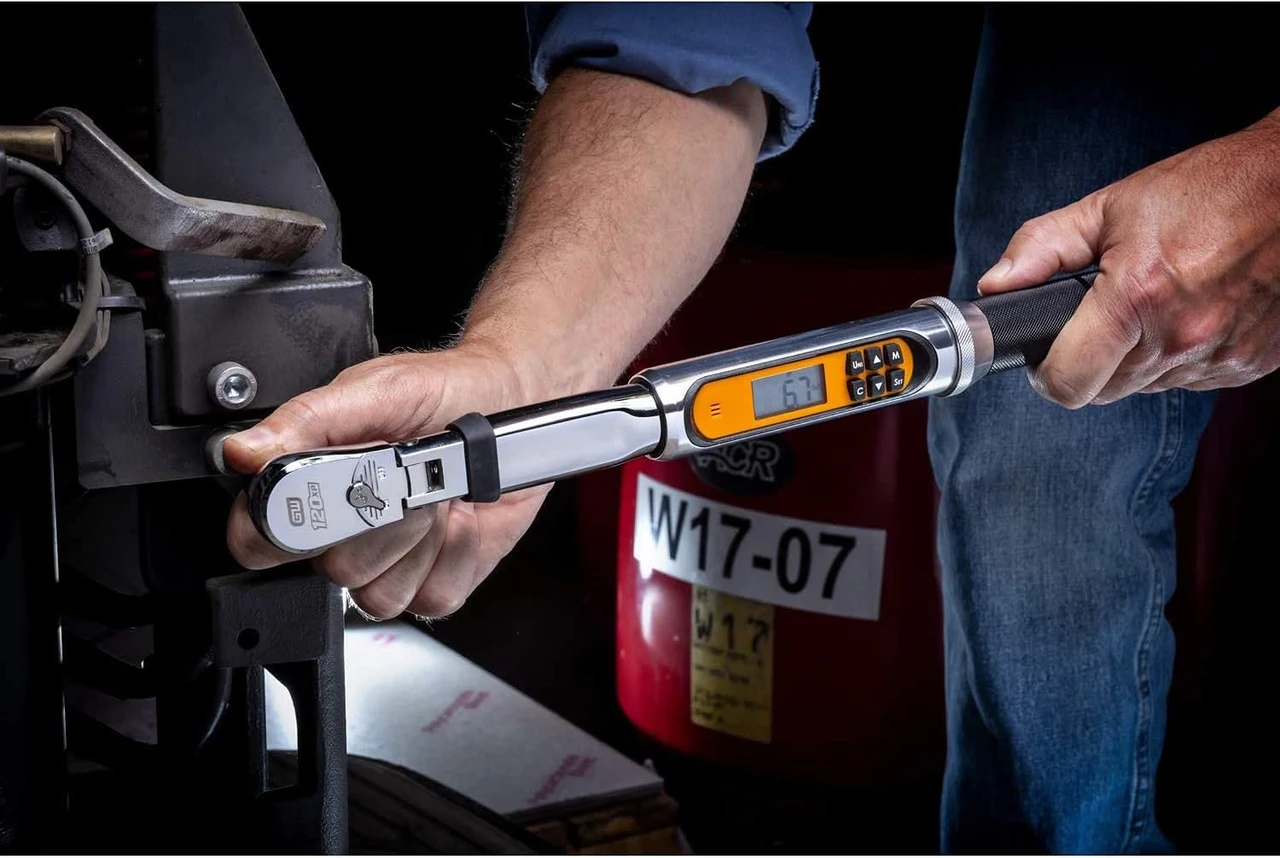

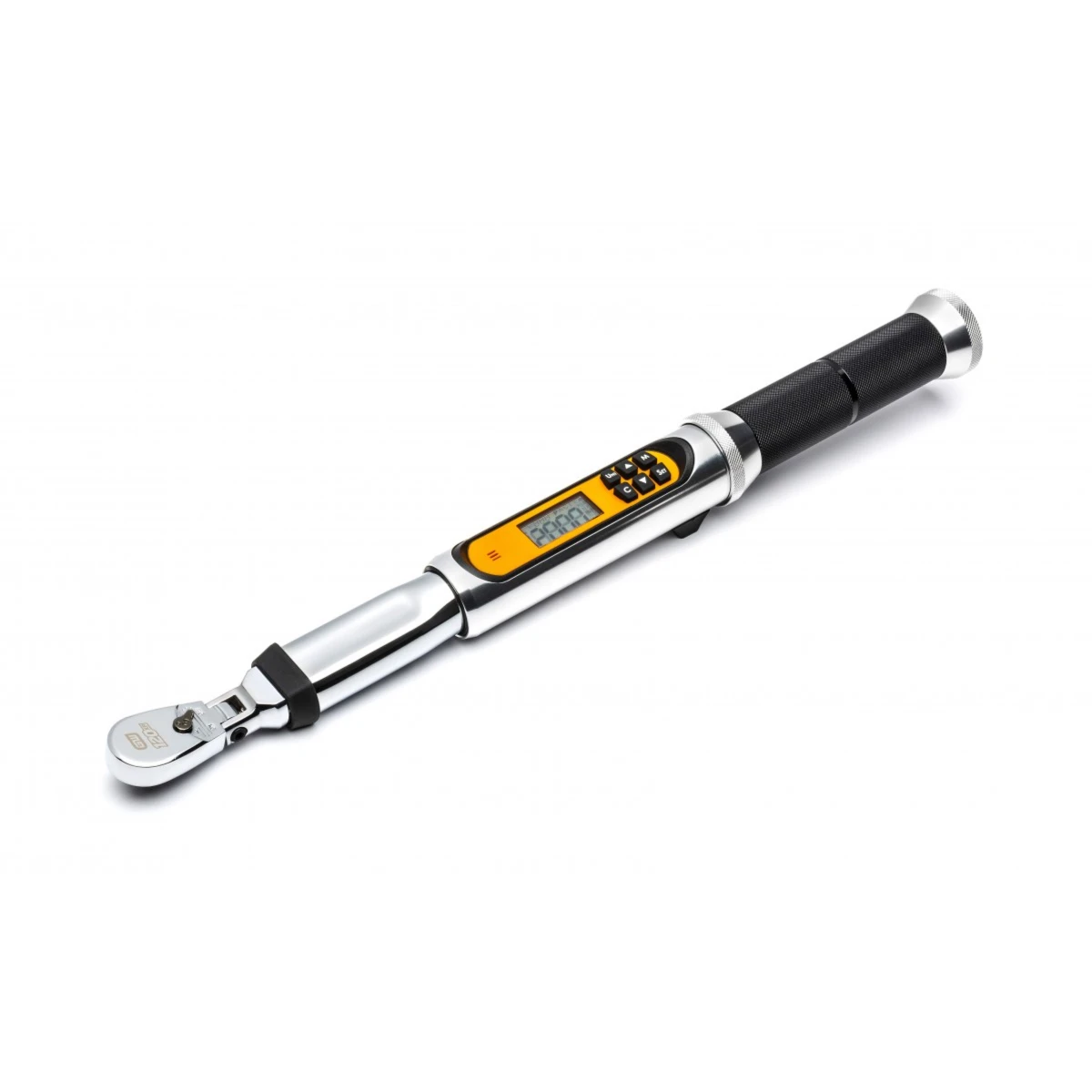

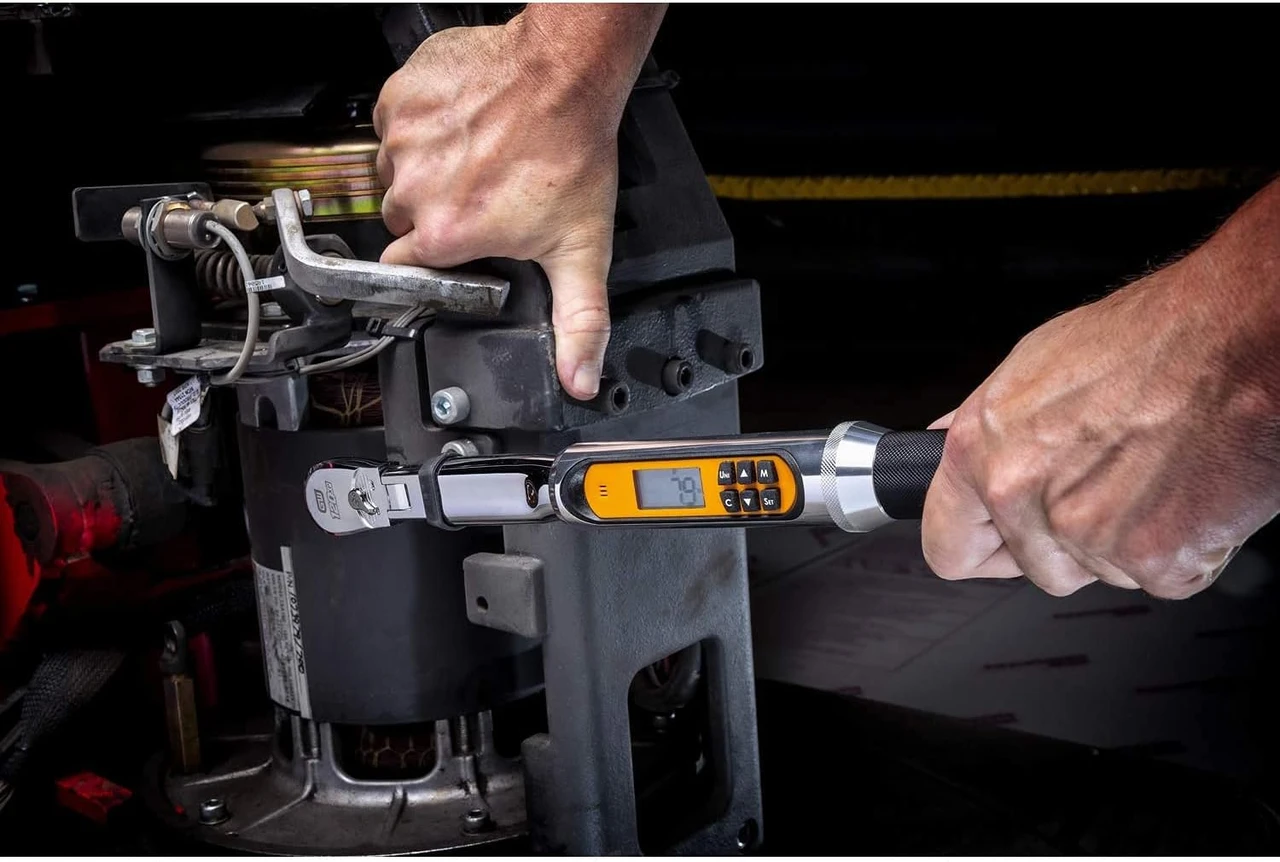

Gearwrench 85194 1/4" 120XP Flex Head Electronic Torque Wrench with Angle offers a versatile solution for precise torque and angle measurement. Designed with a 120XP™ head for a 3° ratcheting arc, this wrench is ideal for turning fasteners in tight, confined spaces. It features a low-profile tube and a 15° flex teardrop head, along with a flush-mounted on/off switch, ensuring easy access in tight environments. This electronic torque wrench provides digital tracking of torque and angle measurements, with alerts via a vibrating handle, buzzer, and LCD screen when the target torque is reached. With multiple function modes and preset settings, it’s perfect for a wide range of applications.

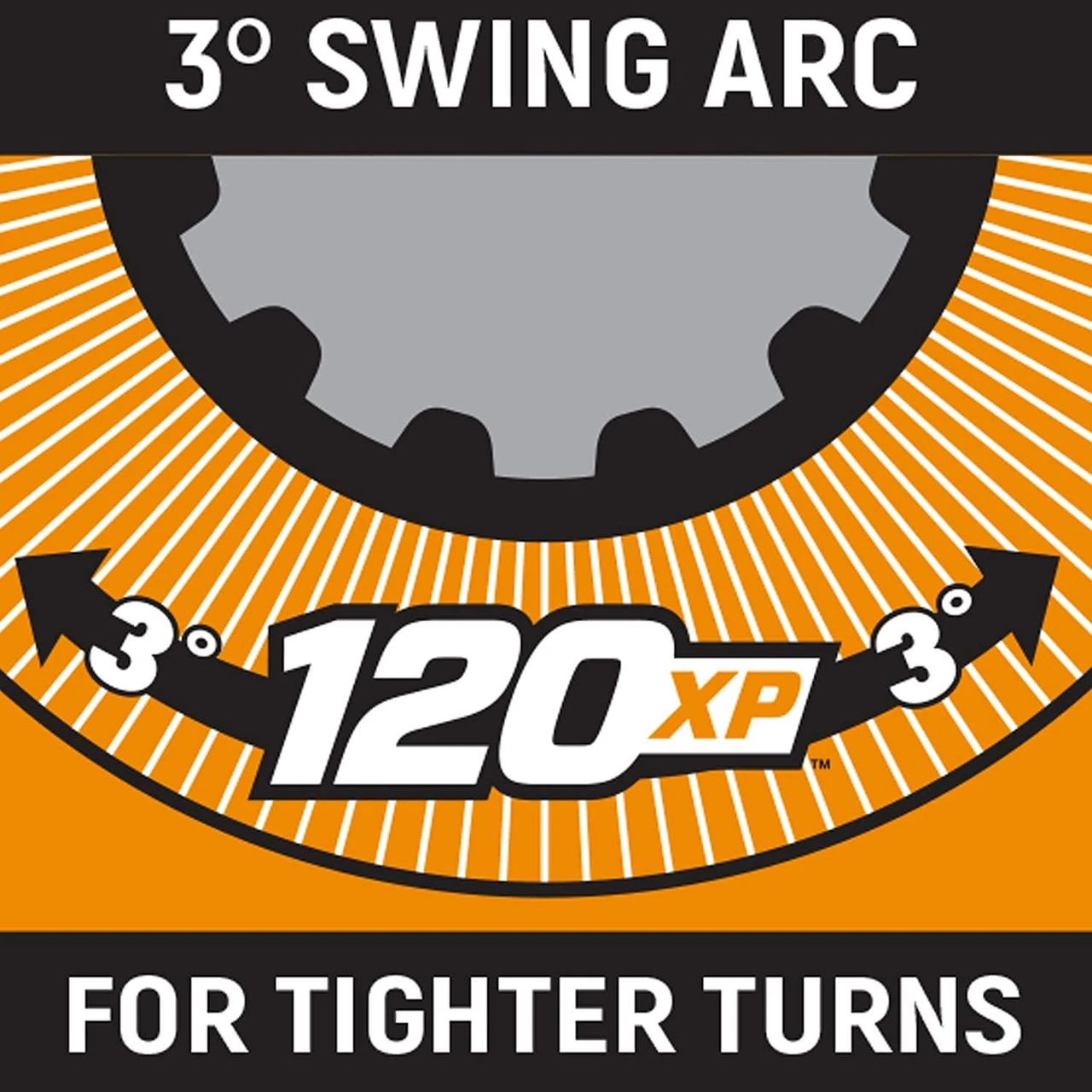

120XP™ head with a 3° ratcheting arc for turning fasteners in narrow spaces.
Low profile tube, 15° flex teardrop head, and flush mounted on/off switch for better access.

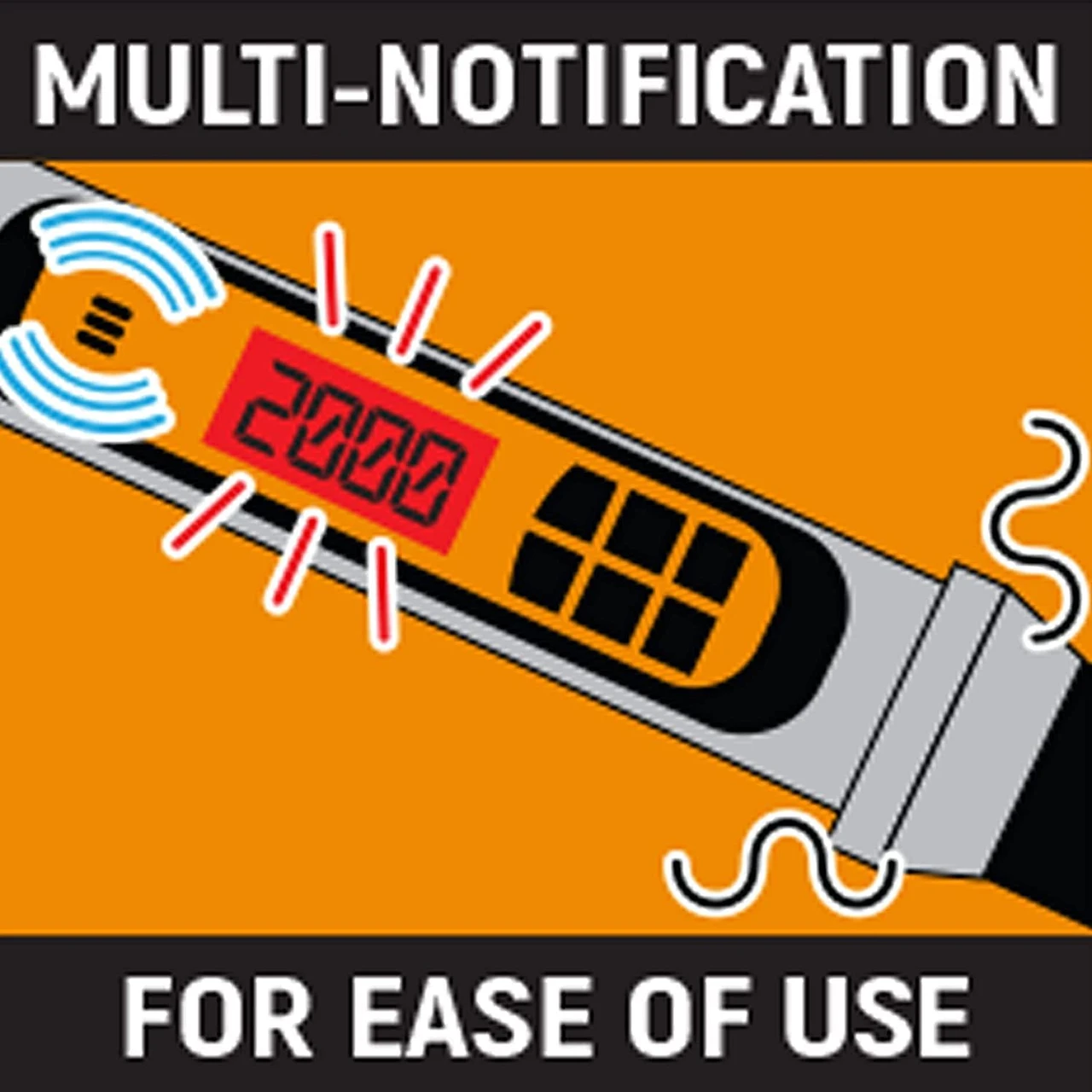

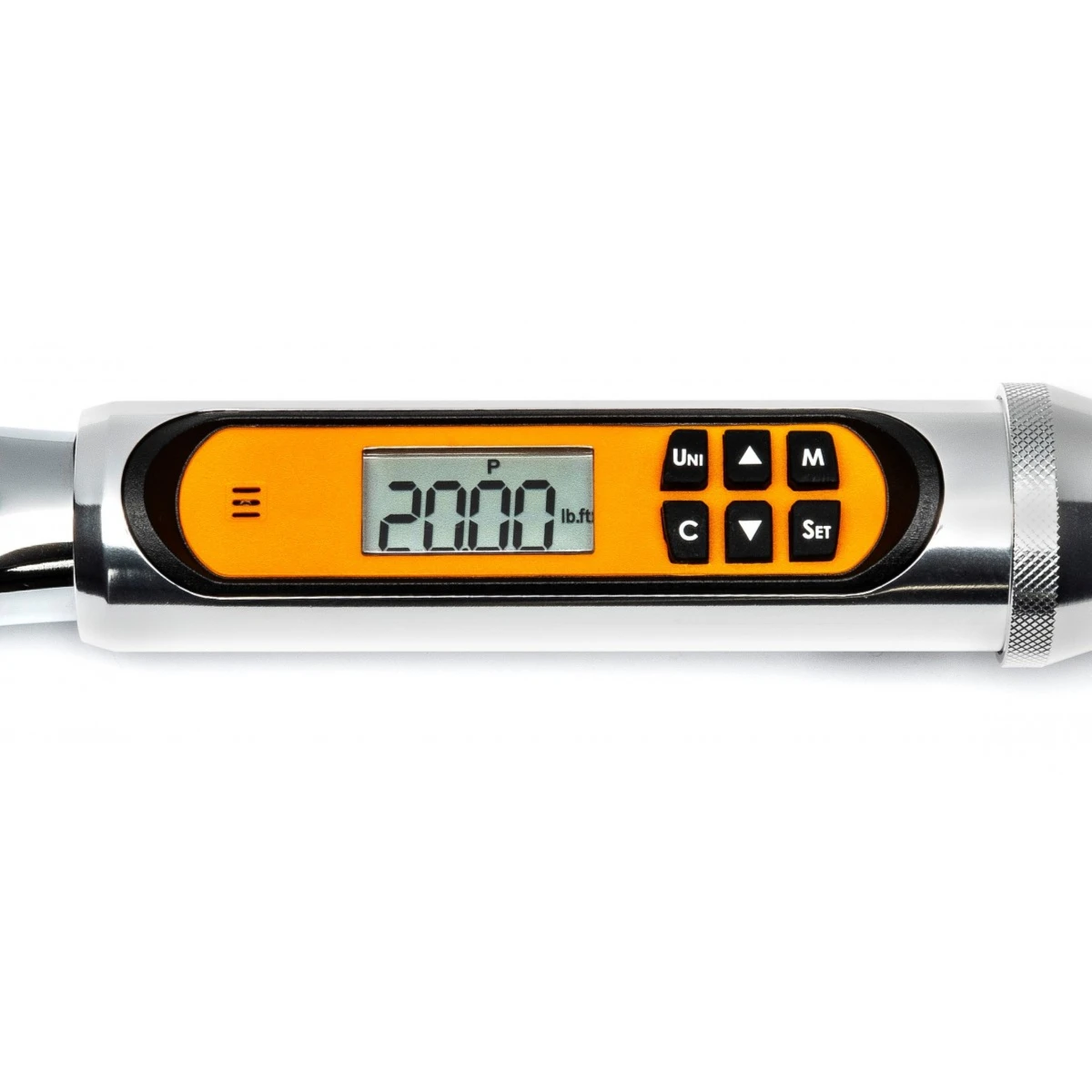

Digitally tracks torque and angle measurements, with vibrating handle, buzzer, and LCD screen alerts when target torque is reached.
Three function modes: Peak Torque, Angle, and Peak Angle, providing versatility.
Five torque measurement units: ft-lb, in-lb, Nm, Kg-m, and Kg-cm for versatile use.
Ten preset torque settings for quick access to frequently repeated applications.
Torque accuracy of +/-2% clockwise (CW) and +/-3% counterclockwise (CCW) between 20%-100% of wrench capability. Angle accuracy of +/-1% of the reading.
Knurled aluminum handle for a comfortable grip, with a clearly marked midpoint for accuracy.
Meets or exceeds ASME standards and specifications.
Achieve precise torque and angle control with advanced digital tracking.
Perfect for tight, confined spaces with a 3° ratcheting arc and flexible head design.
Comfortable knurled handle ensures secure grip and accuracy during use.
Versatile with five measurement units and multiple modes for peak performance.
Preset torque settings speed up repetitive tasks and increase efficiency.
Technical Specifications:
Foreign Trade Code: 8466100175
Overall Length: 15.45 in
Drive Type: Square
Drive Tang Size: 1/4 in
Tooth Count: 120
Head Thickness: 0.4 in
Head Width: 1.01 in
Finish: Full Polish Chrome
Min Torque (Primary Scale): 2 ft-lb
Max Torque (Primary Scale): 20 ft-lb
Alt Scale Increments: .1 Nm
Primary Scale Increments: .1 ft-lb
Min Torque (Alt Scale): 2.7 Nm
Max Torque (Alt Scale): 27 Nm
Head Thickness Less Tang: .25 in
Torque Accuracy (20-100% of Full Range): +/-2% Clockwise
Head Length: 1.5 in
Material: Alloy Steel
Weight (Catalog): 1.5 lb
