FiTech Ultimate Rebel LS 500 HP EFI System (70088)
KEY FEATURES AND BENEFITS:
Designed for LS engine conversions, providing modern electronic fuel injection.
Capable of supporting up to 500 horsepower.
Self-tuning and user-tunable for optimized performance.
Includes a 4.5-inch display for monitoring and adjustments.
E85 compatible, offering flexibility in fuel choices.
Boost/Nitrous compatibility with a 3-bar MAP sensor (27 psi).
Streamlined design with a low-profile intake manifold and redesigned fuel rail bracket.

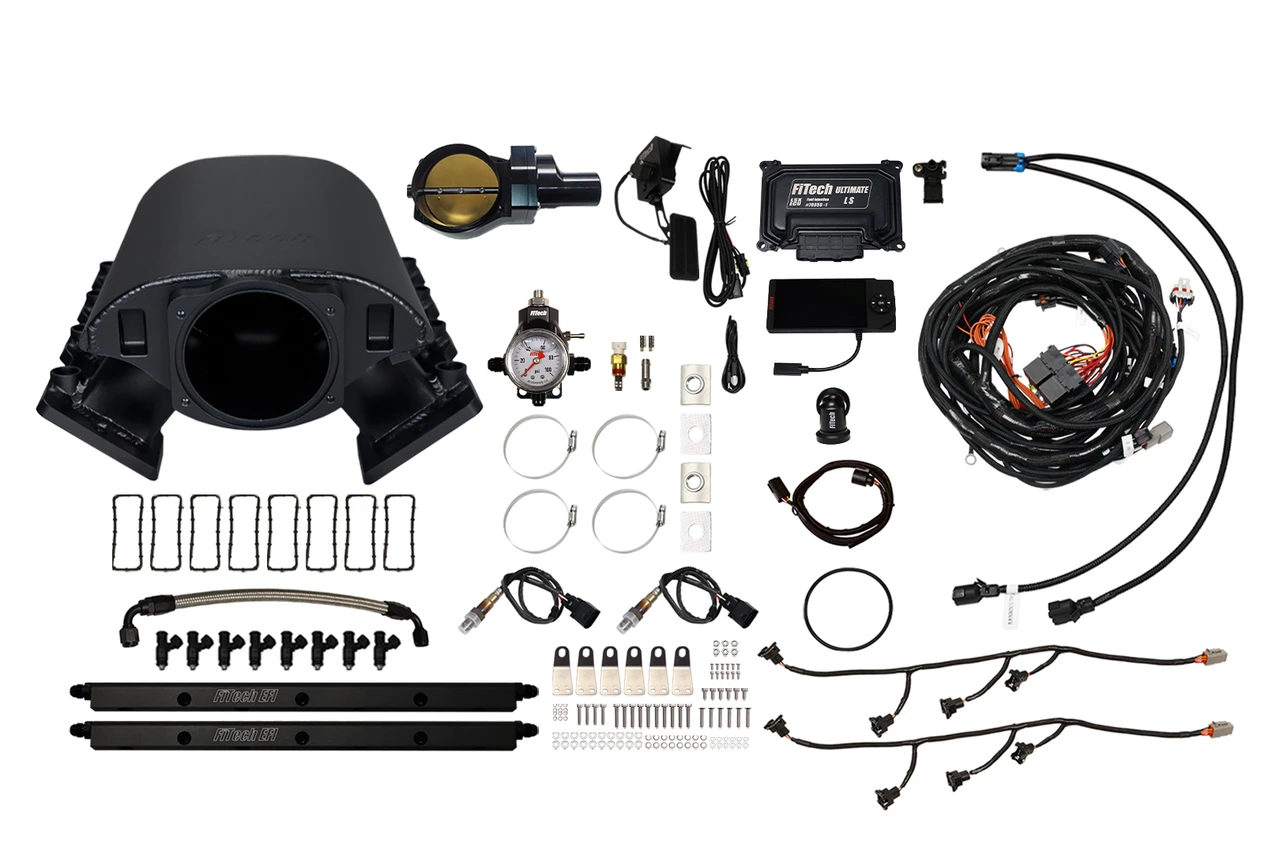

Complete kit includes manifold, ECU, sensors, wiring harness, fuel rails, and fuel pressure regulator.
Fuel Injection Style: Multi-port
Maximum Horsepower: 500
Throttle Body Size: 92mm
Injector Size: 36 lb/hr
MAP Sensor: 3-bar (27 psi)
Display: 4.5-inch
E85 Compatible: Yes
Boost/Nitrous Compatible: Yes
Transmission Control: No
Preparation: Disconnect the vehicle's battery and remove the existing intake manifold and fuel system.
Installation: Install the FiTech Rebel LS intake manifold, throttle body, and fuel rails.
Sensor Installation: Mount the MAP sensor, IAT sensor, and oxygen sensors in their designated locations.
Wiring: Connect the wiring harness to the ECU and all sensors, ensuring proper connections.
Fuel System Connection: Connect the fuel lines to the fuel rails and fuel pressure regulator.
ECU Setup: Mount the ECU and connect the handheld display.
Initial Setup: Follow the on-screen instructions on the handheld display to input engine parameters.
Self-Tuning: Start the engine and allow the system to self-tune.
Fine-Tuning: Use the handheld display to make any necessary adjustments.
Final Checks: Verify all connections and ensure the system is operating correctly.
BENEFITS OF USING THE FITECH ULTIMATE REBEL LS 500 HP EFI SYSTEM (70088):
Improved engine performance and throttle response.
Enhanced fuel efficiency.
Modernized engine bay appearance.
Simplified installation for LS engine conversions.
Flexibility in fuel choices with E85 compatibility.
Ability to handle boost and nitrous applications.
Low-profile intake manifold design.
Thicker gauge manifold for quieter injection.
Redesigned fuel rail bracket.
Complete sensor package (MAP, IAT, Oxygen).
Handheld display for tuning and monitoring.
Magnetic handheld mount.
Throttle cable brackets included.
Go fuel tight fit regulator with pressure gauge.
EV1 injector sub harness.
LS1/LS2 knock sensor harness.
Product identification
- Brand: FiTech
- Model / MPN: 70088
