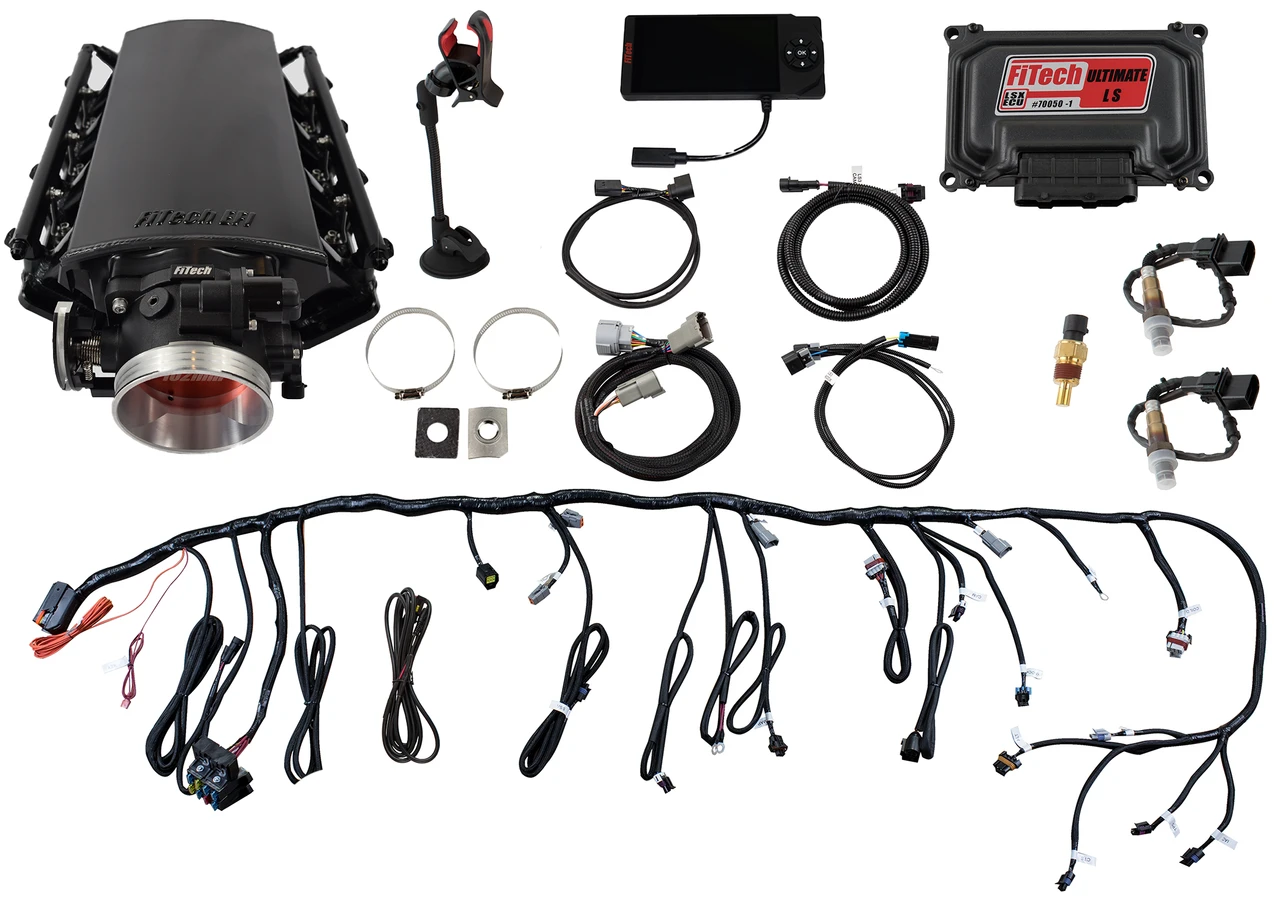

FiTech Ultimate LS1/LS2/LS6 500HP Kit (70001)
The FiTech Ultimate LS1/LS2/LS6 500HP Kit (70001) provides a complete electronic fuel injection solution for LS engine conversions. Designed for engines producing up to 500 horsepower, this kit simplifies the process of upgrading to EFI, offering self-tuning capabilities and comprehensive engine management. Ideal for performance applications and retrofits, this system delivers improved engine performance and responsiveness. Note: This kit does not include transmission control and is intended for off-road use.
KEY FEATURES AND BENEFITS:
Self-Learning ECU: Simplifies setup and tuning with real-time adjustments via the touchscreen controller.
Enhanced Airflow: Features a 92mm throttle body and fabricated intake manifold to support up to 500 horsepower.
Complete Kit: Includes fuel rails, 36 lbs/hr flow-matched injectors, and a plug-and-play wiring harness.
Accurate Engine Management: Sequential fuel and spark control ensures precise operation.
Wideband O2 Sensor: Provides feedback for optimal performance.
Maximum horsepower: 500 HP
Throttle body: 92mm billet aluminum
Injectors: 36 lbs/hr flow-matched
Intake manifold: Fabricated aluminum, cathedral port
ECU: Self-learning, touchscreen programmable
Compatibility: LS1/LS2/LS6 and various LS-based engines
Wiring: Plug-and-play harness
O2 sensor: Wideband included
Transmission control: None
Preparation: Ensure your LS engine is installed and ready for EFI conversion.
Mounting: Install the intake manifold and throttle body onto the engine.
Fuel system: Connect the fuel rails and injectors, and set up your external fuel pump and lines.
Wiring: Connect the plug-and-play wiring harness to the engine sensors, injectors, and ECU.
Sensor installation: Mount the wideband O2 sensor in the exhaust system.
ECU setup: Connect the touchscreen controller and follow the on-screen prompts for initial setup.
Initial start: Start the engine and allow the ECU to begin its self-learning process.
Tuning: Use the touchscreen controller to make necessary adjustments to fuel and timing.
Verification: Check for proper engine operation and make any final tuning adjustments as needed.
BENEFITS OF USING THE FITECH ULTIMATE LS1/LS2/LS6 500HP KIT (70001):
Facilitates easy EFI conversion for LS engines.
Boosts engine performance and responsiveness significantly.
Offers self-tuning features for effective fuel and timing adjustments.
Comprehensive kit reduces the need for additional components.
Ensures reliable engine management with enhanced control.
Fabricated intake manifold: Made from 3mm thick aluminum sheet metal, TIG welded for strength.
Billet fuel rails: Equipped with AN fittings and a fuel crossover for efficient fuel distribution.
Sequential control: Manages fuel and spark with individual cylinder trim capabilities.
Bosch wideband O2 sensor: Controlled self-learning for accurate adjustments.
Sensor compatibility: Works with both 24X and 58X crank and cam setups.
Tachometer output: Provides a driver for most tachometers (5V).
Speedometer output: Includes a driver for most speedometers.
Fuel pump relay: Output for easy integration.
Custom wiring harness: Utilizes the factory coil pack sub harness for straightforward installation.
Product identification
- Brand: FiTech
- Model / MPN: 70001
