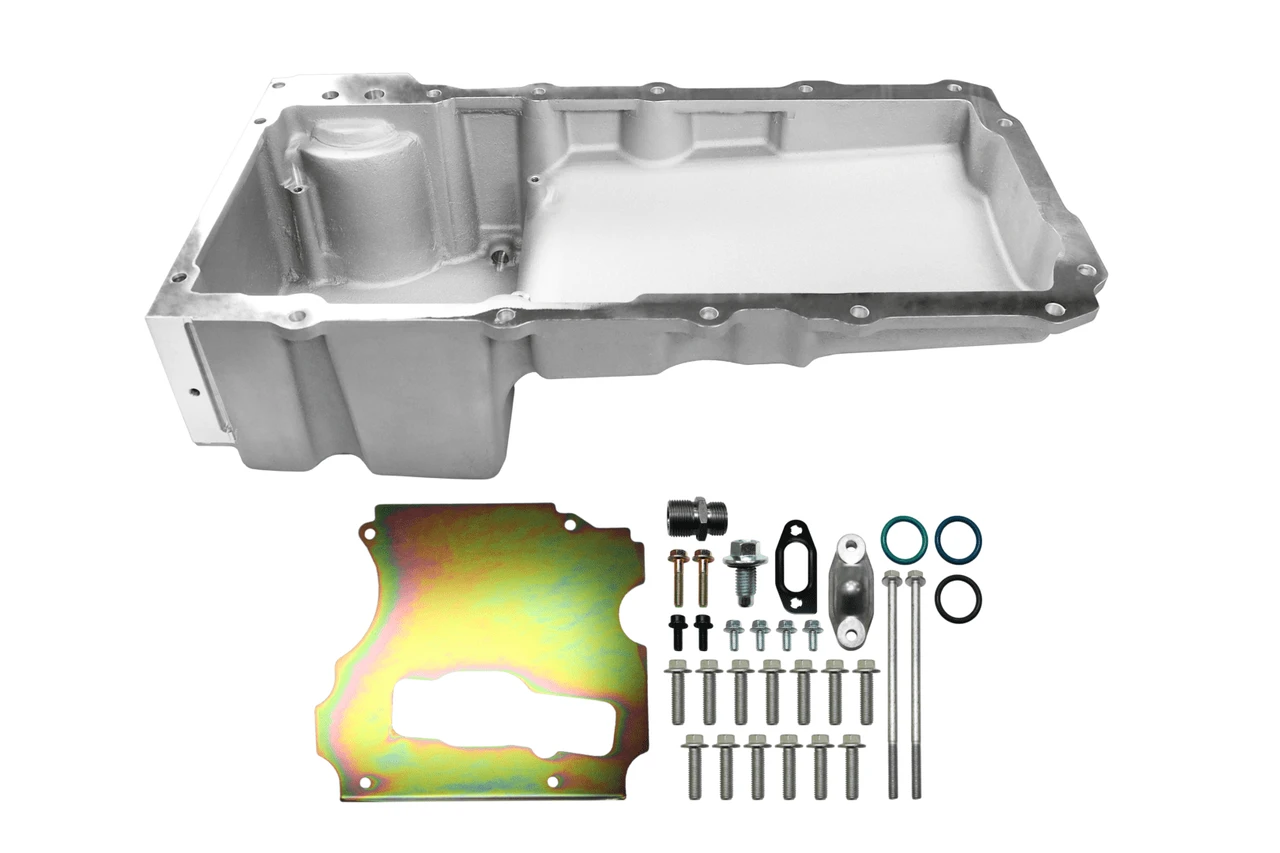

FiTech Standard Profile Satin 6 Qts Engine Oil Pan (130001)
The FiTech Standard Profile Satin 6 Qts Engine Oil Pan (130001) is designed for LS engine conversions in classic GM rear-wheel-drive vehicles. This standard profile oil pan provides a 6-quart capacity, including the oil filter, and is ideal for applications where chassis clearance is not a primary concern. Constructed from cast aluminum with a satin finish, it offers a robust and reliable solution for stroker LS engines up to 4.25 inches.
KEY FEATURES AND BENEFITS:
Engine Compatibility: Designed for LS engine swaps in classic GM rear-wheel-drive vehicles.
Oil Capacity: 6.0-quart total oil capacity (with filter).
Rear Sump Design: Compatible with traditional rear sump chassis.
Stroker Clearance: Accommodates crankshafts up to 4.25 inches.
OEM Fitment: Supports oil filters, oil cooler ports, and dipstick/tube.
Included Components: Comes with sump baffle, pickup tube, sump plug, oil filter stud, and oil passage cover.
Filter Compatibility: Works with standard off-the-shelf oil filters.
Dipstick Compatibility: Uses OEM LS3 dipstick and dipstick tube.
Windage Tray: Designed for use with an OEM full-length windage tray.
Brand: FiTech Fuel Injection
Part Number: 130001
Oil Pan Style: Street/Strip
Sump Location: Rear
Oil Pan Capacity: 6.0 quarts
Maximum Stroke: 4.25 inches
Oil Pan Depth: 5.70 inches
Material: Cast Aluminum
Compatibility: Most GM rear-wheel-drive applications originally equipped with a Small Block or Big Block Chevy engine.
Windage Tray: Designed to use GM Part #: 12611129
Drain Oil: Completely drain existing engine oil.
Remove Old Oil Pan: Detach the existing oil pan from the engine.
Clean Surface: Thoroughly clean the engine block's oil pan mounting surface.
Install FiTech 130001 Oil Pan: Position the new oil pan using the appropriate gasket (purchased separately).
Attach Components: Install the included sump baffle, pickup tube, sump plug, oil filter stud, and oil passage cover.
Install Dipstick: Attach the OEM LS3 dipstick and dipstick tube.
Windage Tray Installation: Install the GM full-length windage tray (or a compatible alternative).
Oil Filter Installation: Install the desired oil filter.
Refill Oil: Fill the engine with the recommended quantity and type of oil.
Check System: Inspect for leaks and verify proper oil level.
BENEFITS OF USING THE FITECH STANDARD PROFILE SATIN 6 QTS ENGINE OIL PAN (130001):
Reliable Oil Management: Ensures proper oil capacity for LS engine swaps.
Stroker Engine Compatibility: Supports engines with up to 4.25-inch stroke.
Easy Installation: Features OEM-compatible fitment for hassle-free setup.
Durability: Made from high-quality cast aluminum for long-lasting performance.
Oil Filter Compatibility: Accepts commonly available oil filters.
Optimized Oil Pickup: Includes a pickup tube and baffle for efficient oil flow.
Cast aluminum construction.
Rear sump configuration.
Integrated sump baffle.
Included pickup tube.
Provision for OEM oil cooler ports.
OEM flange gasket and sealing design.
Integrated oil filter stud.
Oil passage cover included.
Sump plug included.
Stroker clearance.
Product identification
- Brand: FiTech
- Model / MPN: 130001
