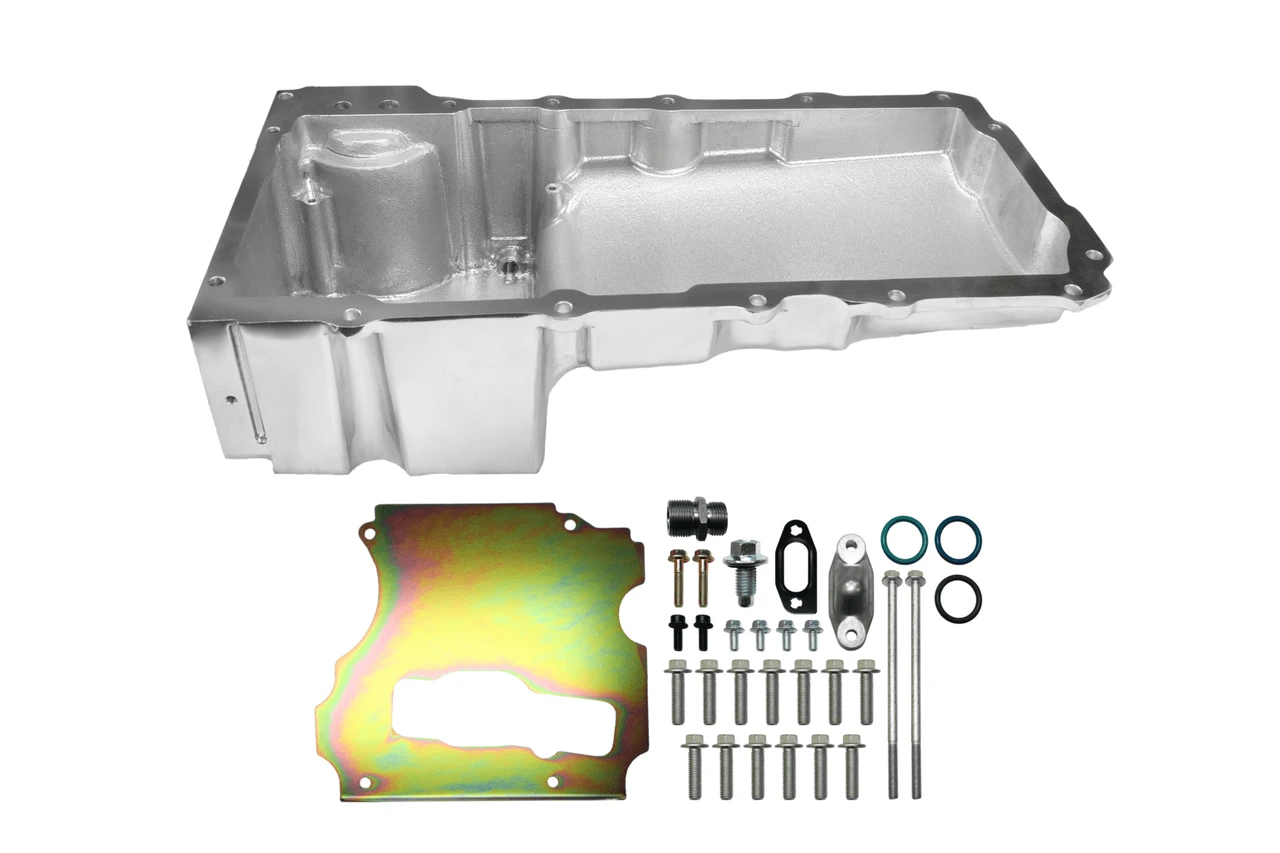

FiTech Standard Profile Polished 6 Qts Engine Oil Pan (130101)
The FiTech Standard Profile Polished 6 Qts Engine Oil Pan (130101) is specifically engineered for LS engine swaps in GM rear-wheel-drive vehicles. This standard profile oil pan is designed to provide adequate clearance and proper oil management in applications where chassis clearance is not a primary concern. With a 6-quart capacity, it supports up to a 4.25-inch crankshaft stroke, making it suitable for various stroker LS engine builds. Its cast aluminum construction and polished finish offer both durability and a clean aesthetic.
KEY FEATURES AND BENEFITS:
Optimized for LS Swaps: Designed for LS engine swaps in GM rear-wheel-drive vehicles.
Adequate Oil Capacity: Standard profile with a 6.00-quart total oil capacity (including filter).
Stroker Engine Compatibility: Supports up to a 4.25-inch crankshaft stroke.
Durable Construction: Cast aluminum construction with a polished finish.
Complete Installation Kit: Includes sump baffle, pickup tube, sump plug, oil filter stud, and oil passage cover.
Wide Oil Filter Compatibility: Compatible with standard oil filters (AC Delco, Mobil, Wix, K&N).
OEM Components: Uses OEM LS3 dipstick and dipstick tube.
Windage Tray Compatibility: Designed to use a GM full-length windage tray.
OEM Features: Includes OEM oil filter mounting, oil cooler port provision, engine NVH suppression, flange gasket and sealing, proper structural rigidity, and OEM bell-housing attachments.
Brand: FiTech Fuel Injection
Part Number: 130101
Oil Pan Style: Street/Strip
Sump Location: Rear
Oil Pan Capacity: 6.00 quarts
Maximum Stroke: 4.250 inches
Oil Pan Depth: 5.700 inches
Material: Aluminum
Finish: Polished
Compatibility: GM rear-wheel-drive applications originally equipped with a Small Block or Big Block Chevy engine.
Oil Filter Compatibility: AC Delco PF48 or PF48E, Mobil M1-113, Wix 57060, and K&N HP-1017.
Dipstick Compatibility: OEM LS3 Dipstick and Dipstick Tube (GM 12669528 & GM 12625031).
Windage Tray Compatibility: GM full-length windage tray (GM Part #: 12611129).
Drain Engine Oil: Remove the existing engine oil from the vehicle.
Remove Old Oil Pan: Detach the existing oil pan from the engine.
Install Pickup Tube: Attach the included pickup tube to the oil pump.
Apply Gasket and Sealant: Use the appropriate gasket and sealant on the FiTech 130101 oil pan.
Secure Oil Pan: Position the oil pan onto the engine block and fasten it with the provided hardware.
Install Additional Components: Attach the oil filter stud and oil passage cover.
Insert Dipstick: Install the OEM LS3 dipstick and dipstick tube.
Mount Windage Tray: Secure the GM full-length windage tray.
Install Compatible Oil Filter: Use a recommended oil filter.
Refill Engine Oil: Fill the engine with the required amount of oil.
Check for Leaks: Start the engine and inspect for any leaks.
BENEFITS OF USING FITECH STANDARD PROFILE POLISHED 6 QTS ENGINE OIL PAN (130101):
Optimized Clearance: Provides necessary clearance for LS engine swaps in GM rear-wheel-drive vehicles.
Enhanced Oil Management: Ensures proper lubrication with a 6-quart capacity and baffled sump.
OEM Compatibility: Maintains compatibility for easy installation and integration.
Durable and Stylish: Features a polished aluminum finish for a strong yet aesthetically pleasing appearance.
Stroker Engine Support: Compatible with LS builds using crankshaft strokes up to 4.25 inches.
Cast aluminum construction for strength.
Polished exterior for a clean look.
Integrated sump baffle for oil control.
Designed for use with standard oil filters.
Accommodates OEM LS3 dipstick and tube.
Includes necessary installation hardware.
OEM oil cooler port provision.
OEM engine NVH suppression.
OEM flange gasket and sealing.
OEM bell-housing attachments.
Product identification
- Brand: FiTech
- Model / MPN: 130101
