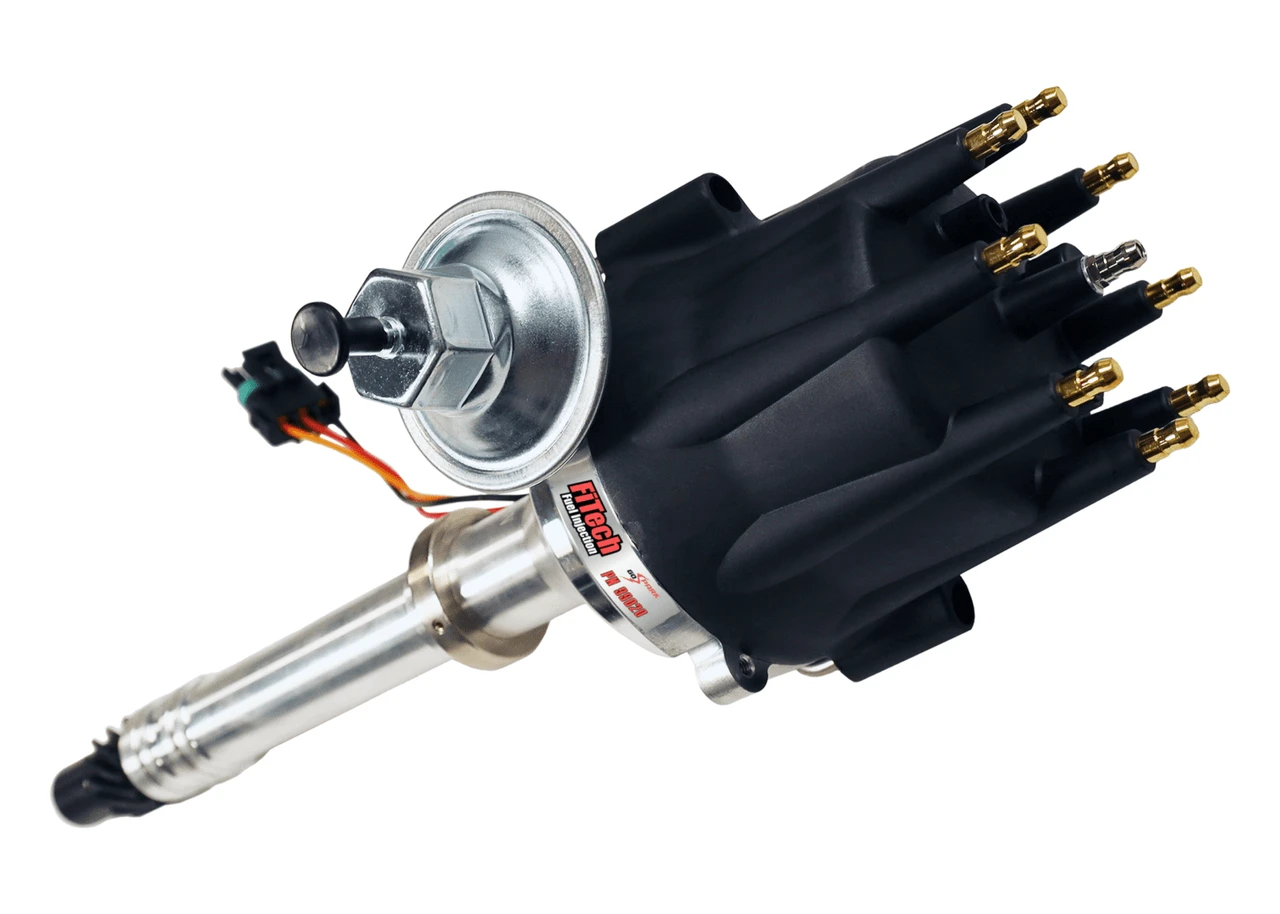

FiTech Chevy V8 Ready-To-Run Distributor w/ Slip Collar (99020)
The FiTech Chevy V8 Ready-To-Run Distributor w/ Slip Collar (99020) is designed for Small Block and Big Block Chevy engines, offering a simple solution for improved ignition performance. This distributor integrates an ignition module, eliminating the need for an external ignition box in many applications. It features adjustable vacuum and mechanical advance, a melonized distributor gear, and a robust CNC-machined aluminum housing.
KEY FEATURES AND BENEFITS:
Ready-to-Run Design: Built-in ignition module simplifies installation, requiring only a 3-wire hookup.
Adjustable Advance: Vacuum and mechanical advance mechanisms allow for precise timing adjustments.
Durable Construction: CNC-machined 6061 T-6 aluminum housing and centerless ground shaft ensure longevity.
Melonized Gear: Provides compatibility with various camshaft materials and reduces wear.
High-Output Trigger: Magnetic pickup and paddle wheel reluctor deliver a strong, consistent signal.
Quality Components: High-impact distributor cap and brass contacts for reliable conductivity.
Engine Compatibility: Small Block/Big Block Chevy
Advance Type: Vacuum and Mechanical
Trigger Style: Magnetic
Ignition Module: Integrated
Distributor Gear Material: Melonized
Housing Material: 6061 T-6 Aluminum
Wiring: 3-wire hookup
Dimensions: 6.9 × 18.4 × 7.2 in
Disconnect the negative battery terminal.
Remove the old distributor, noting the rotor position.
Install the FiTech 99020, aligning the rotor with the noted position.
Connect the 3-wire harness: power, ground, and tach output.
Adjust the vacuum and mechanical advance as needed for your engine setup.
Reconnect the negative battery terminal.
Verify timing with a timing light.
BENEFITS OF USING THE FITECH CHEVY V8 READY-TO-RUN DISTRIBUTOR W/ SLIP COLLAR (99020):
Simplified Installation: The ready-to-run design eliminates the need for an external ignition box.
Improved Ignition Accuracy: Adjustable advance mechanisms allow for precise timing.
Increased Durability: High-quality materials and construction ensure long service life.
Reliable Compatibility: The melonized gear allows for compatibility with many different camshaft materials.
CNC-machined aluminum housing.
Centerless ground shaft.
Upper sealed roller bearing.
Lower bronze Oil-Lite bushing.
High-output magnetic pickup.
Large paddle wheel reluctor.
Built-in inductive storage module.
Adjustable vacuum advance canister.
High-impact distributor cap.
Brass cap contacts.
Stainless steel rotor spring.
Slip collar design.
Product identification
- Brand: FiTech
- Model / MPN: 99020
