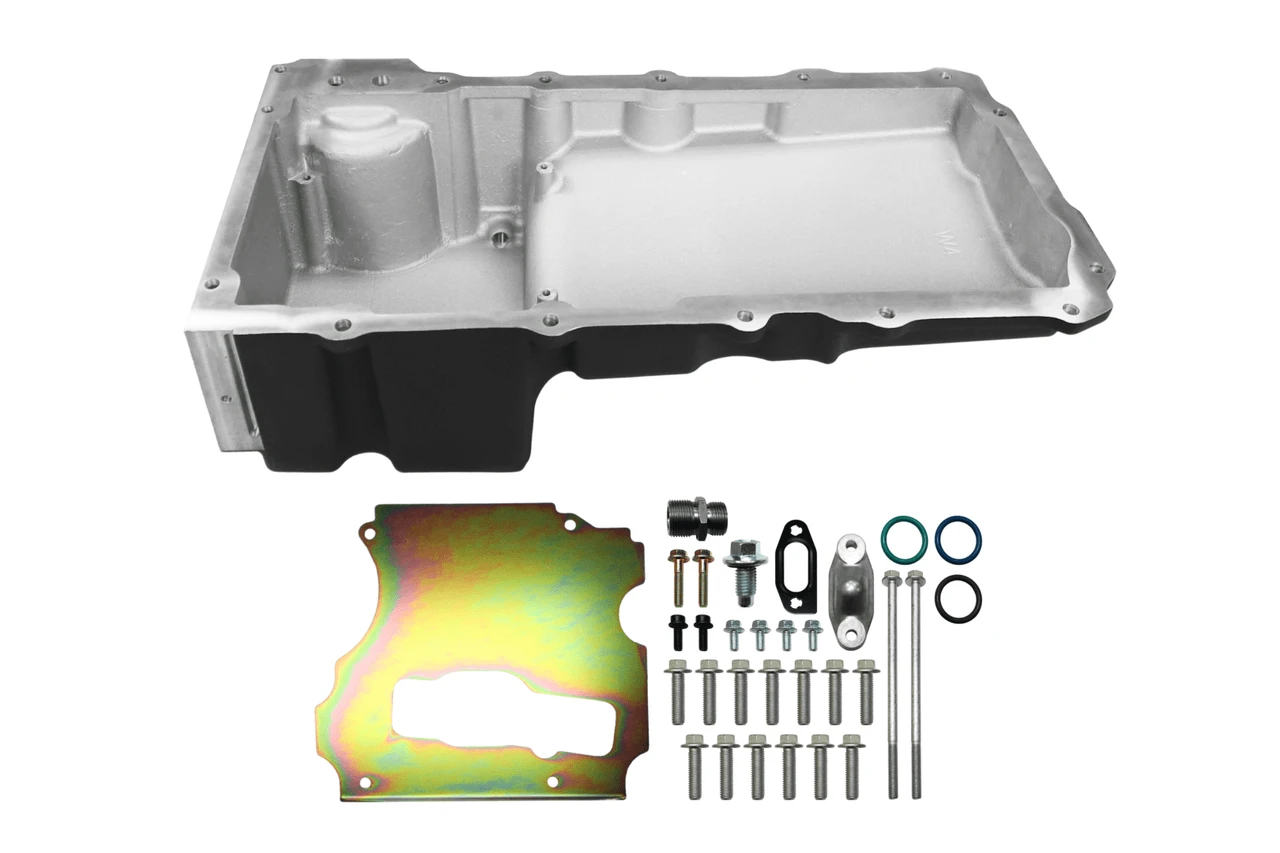

FiTech Standard Profile Black 6.10 Qts Engine Oil Pan (130201)
The FiTech Standard Profile Black 6.10 Qts Engine Oil Pan (130201) is a standard profile, rear sump oil pan designed for LS engine swaps in GM rear-wheel-drive vehicles. It offers a 6-quart capacity (with filter) and is constructed from cast aluminum with a black finish. This pan is intended for applications where chassis clearance is a consideration, and it is compatible with common oil filters and OEM LS3 dipsticks.
KEY FEATURES AND BENEFITS:
Provides a 6.00 quart oil capacity, including the oil filter.
Designed for LS engine swaps in GM rear-wheel-drive vehicles.
Offers a standard profile with a 5.70-inch sump depth.
Constructed from durable cast aluminum with a black finish.
Includes essential components like a sump baffle, pickup tube, and hardware.
Compatible with standard oil filters, simplifying maintenance.
Designed to use OEM LS3 dipstick and dipstick tube.
Designed for use with OEM LS3 windage tray.
Brand: FiTech Fuel Injection
Part Number: 130201
Oil Pan Style: Street/Strip
Sump Location: Rear
Oil Pan Capacity: 6.00 quarts
Stroker Clearanced: Yes
Maximum Stroke: 4.25 inches
Oil Pan Depth: 5.70 inches
Material: Cast Aluminum
Compatibility: Most GM rear-wheel-drive applications that were originally equipped with a Small Block or Big Block Chevy engine.
Oil filter compatibility: AC Delco PF48 or PF48E, Mobil M1-113, Wix 57060, and K&N HP-1017
Preparation: Ensure the engine block is clean and free of old gasket material.
Install Pickup Tube: Attach the included pickup tube to the oil pump.
Apply Gasket: Apply a suitable oil pan gasket (not included) to the engine block.
Position Oil Pan: Carefully position the FiTech 130201 oil pan against the engine block.
Secure Pan: Install and tighten the oil pan bolts in a crisscross pattern to the manufacturer's torque specifications.
Install Oil Filter: Attach a compatible oil filter (AC Delco PF48, Mobil M1-113, etc.).
Install Dipstick: Install the OEM LS3 dipstick and dipstick tube.
Add Oil: Fill the engine with the recommended amount of oil.
Check for Leaks: Start the engine and check for any oil leaks around the pan and filter.
BENEFITS OF USING THE FITECH STANDARD PROFILE BLACK 6.10 QTS ENGINE OIL PAN (130201):
Optimized oil capacity for LS engine swaps.
Improved clearance compared to deeper oil pans.
Direct fit for many classic GM rear-wheel-drive vehicles.
Simplified installation with OEM component compatibility.
Reliable performance with included baffle and pickup tube.
Allows the usage of common oil filters.
Rear sump design for compatibility with various chassis setups.
Integrated sump baffle to prevent oil starvation.
Machined oil filter stud for secure filter mounting.
Included oil passage cover for proper sealing.
Provision for OEM oil cooler ports.
Engine NVH suppression designed into the part.
Flange gasket and sealing designed to OEM standards.
Designed with proper structural rigidity.
Product identification
- Brand: FiTech
- Model / MPN: 130201
