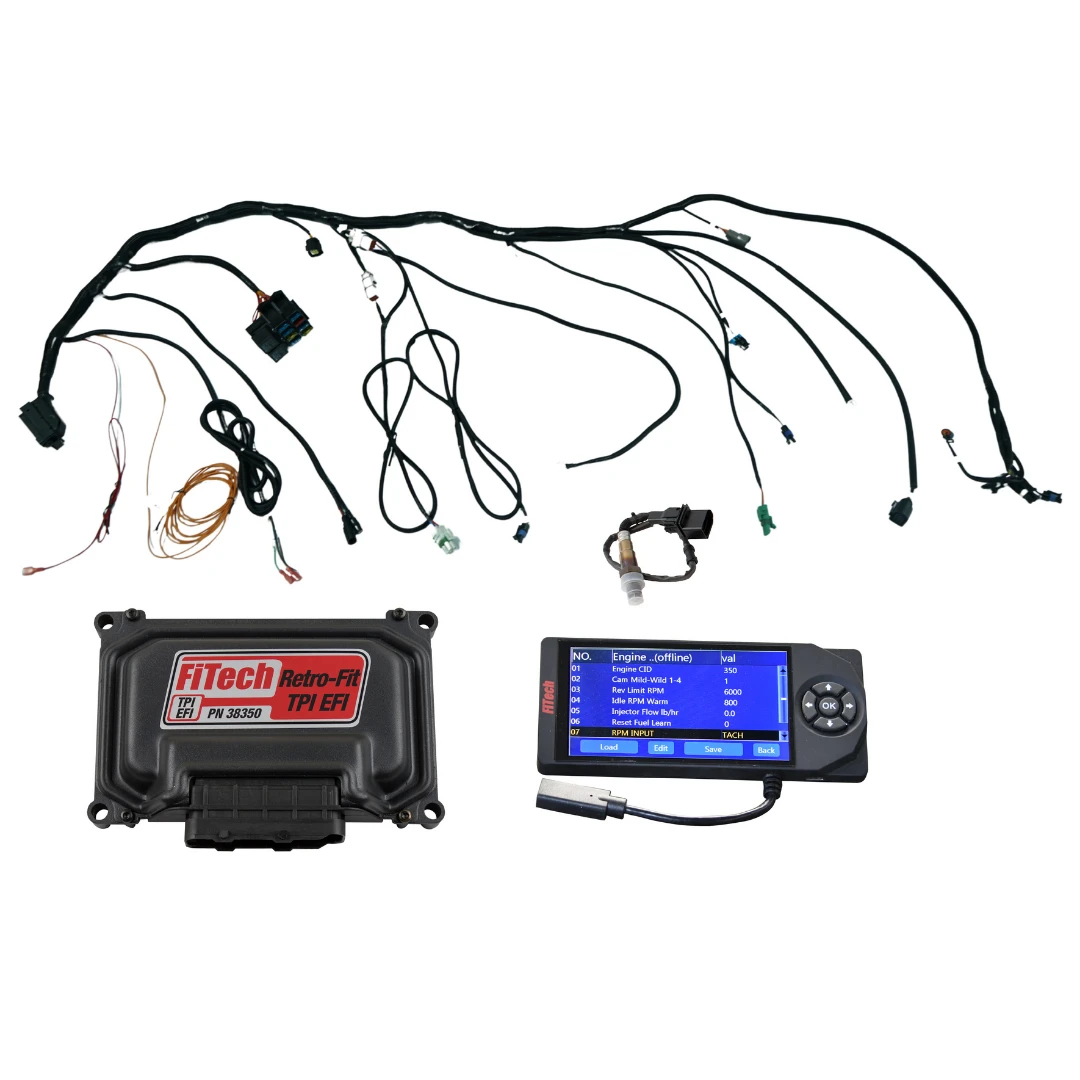

FiTech SBC TPI Standalone EFI System (38350)
The FiTech SBC TPI Standalone EFI System (38350) is designed to modernize the performance of classic GM Tuned Port Injection (TPI) small-block Chevy engines. This system replaces outdated electronic components with modern, self-learning EFI technology, enhancing driveability and providing more custom settings. It is built to improve the performance of your TPI-equipped small block engine.
KEY FEATURES AND BENEFITS:
Modernization: Upgrades classic GM TPI systems with advanced EFI technology.
Improved Driveability: Enhances performance through self-learning capabilities.
Boost Support: Equipped with a 3-bar MAP sensor that supports up to 25 psi boost.
Simplified Installation: Comes with a new wiring harness and factory-style connectors.
Accurate Monitoring: Features a wide-band oxygen sensor for precise air/fuel ratio readings.
Transmission Control: Offers lock-up control for 200-4R/700-R4 transmissions, with upgrades available for 4L60/80E.
User-Friendly: Eliminates the need for laptop tuning with an included touchscreen controller.
Compatibility: GM Tuned Port Injection (TPI) small-block Chevy engines.
MAP Sensor: 3-bar (supports up to 25 psi boost).
Oxygen Sensor: Wide-band.
Transmission Control: 200-4R/700-R4 (upgrades for 4L60/80E available).
Controller: Handheld touchscreen.
Wiring Harness: New, with factory-style connectors.
Dimensions: 15 × 9 × 12 in
Preparation: Disconnect the vehicle's battery.
Sensor Installation: Install the provided wide-band oxygen sensor in the exhaust system.
Harness Connection: Connect the new wiring harness to the factory sensors (TPS, IAC, CTS, Knock Sensors, injectors, and distributor) using the OEM-style connectors.
ECU Mounting: Mount the compact ECU in a suitable location.
Controller Connection: Connect the handheld touchscreen controller to the ECU.
Initial Setup: Power on the system and use the touchscreen controller to input basic engine parameters.
Self-Learning Process: Start the engine and allow the system to self-learn and adjust fuel and ignition settings.
Fine Tuning: Use the touchscreen controller to make any necessary adjustments to the engine parameters.
Transmission Setup: If applicable, configure the transmission lock-up control through the controller.
Final Check: Verify all connections and engine parameters before driving.
BENEFITS OF USING THE FITECH SBC TPI STANDALONE EFI SYSTEM (38350):
Modernized Performance: Enhances engine responsiveness and overall performance.
Simplified Tuning: Eliminates the need for complex adjustments, making it user-friendly.
Enhanced Fuel Efficiency: Optimizes air/fuel ratios for better economy.
Increased Power Output: Delivers more torque across the RPM range.
Reliable Performance: Maintains consistency in various driving conditions.
Improved Control: Offers greater control over engine parameters and easier troubleshooting.
Self-Learning EFI Algorithm: Automatically adjusts tuning for optimal performance.
Real-Time Monitoring: Monitor engine parameters via the handheld controller.
Boost Capability: Supports applications with boosted configurations.
Direct Connections: Easily connects to factory sensors and components.
Wide Band O2 Sensor Included: For precise air/fuel monitoring.
Factory-Style Connectors: Ensures a seamless installation.
Compact ECU: Designed for easy mounting and integration.
Product identification
- Brand: FiTech
- Model / MPN: 38350
