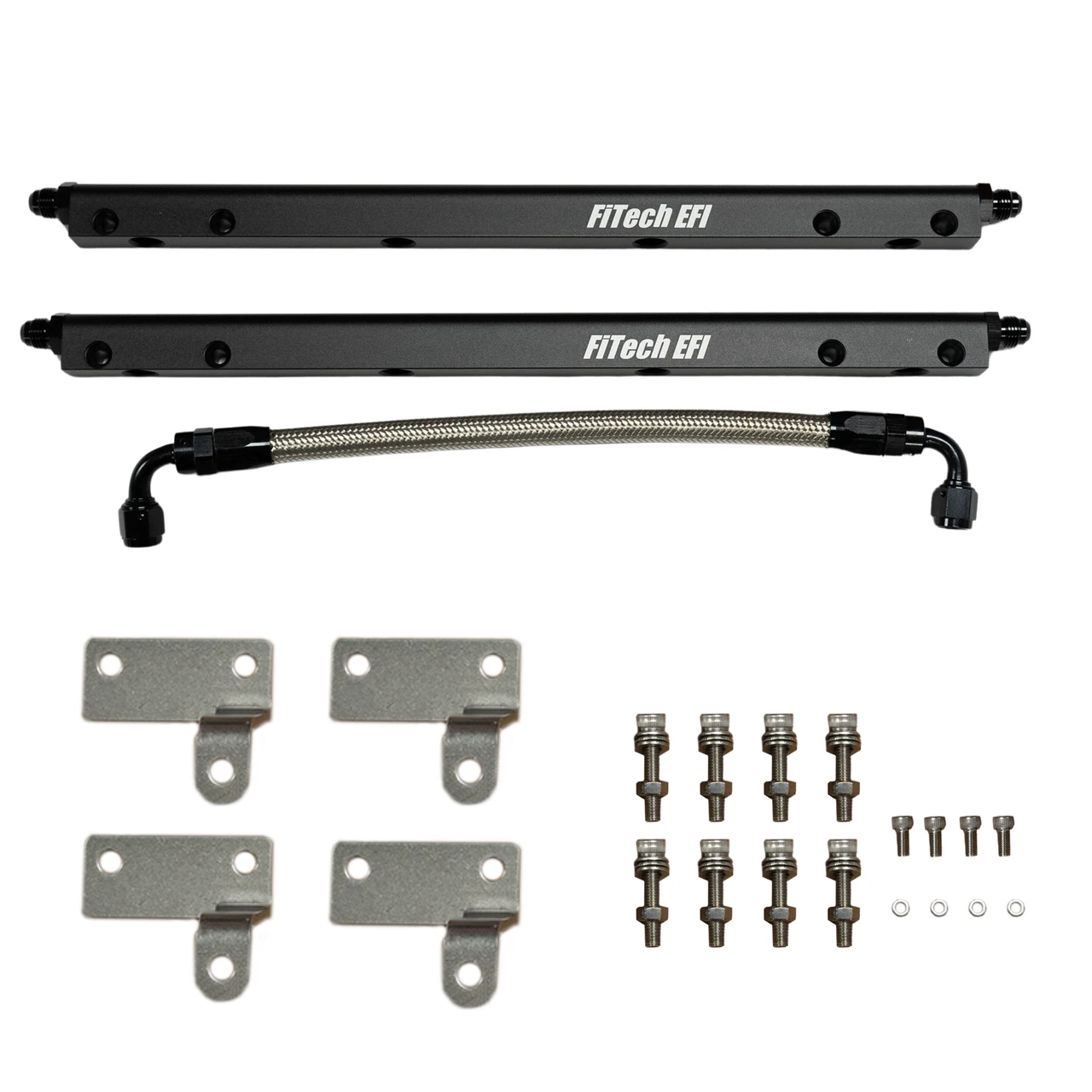

FiTech SBC Go-Port Fuel Rail Set (37854-1)
The FiTech SBC Go-Port Fuel Rail Set (37854-1) provides electronic fuel injection for small block Chevy Gen 1 engines. Designed for engines producing 200-550 horsepower, this system combines throttle body simplicity with port-style precision. It features an ECU mounted on the throttle body, self-learning technology, and a touchscreen controller for easy tuning.
KEY FEATURES AND BENEFITS:
Throttle Body: Includes a 900 CFM matte black throttle body for optimal airflow.
Integrated ECU: The ECU is mounted on the throttle body and utilizes self-learning technology to adapt to your engine's needs.
Touchscreen Controller: A 2.5-inch handheld touchscreen allows for real-time adjustments and monitoring.
Comprehensive Sensor Package: Includes a wideband O2 sensor and necessary sensors like MAP, coolant temperature, TPS, IAC, and IAT.
Engine Compatibility: Small Block Chevy Gen 1.
Horsepower Range: 200-550 HP.
Throttle Body: 900 CFM, Matte Black.
Injectors: 8 x 36 lb. High-Flow.
ECU: Throttle Body Mounted, Self-Learning.
Controller: 2.5-inch Touchscreen Handheld.
Fuel Rails: High-Flow.
O2 Sensor: Wideband.
Sensors: MAP, Coolant Temperature, TPS, IAC, IAT.
Manifold: Aftermarket Port EFI Style.
Preparation: Disconnect the battery. Remove the existing carburetor and intake manifold.
Installation: Install the provided port EFI style manifold.
Throttle Body Mounting: Mount the FiTech throttle body onto the manifold, ensuring a secure fit.
Fuel System Connection: Connect the high-flow fuel rails and injectors. Connect the fuel lines to a suitable fuel pump and regulator (sold separately).
Sensor Installation: Install the wideband O2 sensor and other required sensors (MAP, coolant temperature, TPS, IAC, IAT).
Wiring: Connect the wiring harness to the ECU and sensors, following the provided instructions.
Controller Setup: Connect the touchscreen handheld controller and follow the on-screen prompts for initial setup.
Initial Start-Up: Reconnect the battery. Start the engine and allow the self-learning feature to calibrate the system.
Tuning: Use the touchscreen controller to fine-tune the system as needed.
Verification: Verify all connections and test drive the vehicle.
BENEFITS OF USING THE FITECH SBC GO-PORT FUEL RAIL SET (37854-1):
Improved Fuel Efficiency: Offers better efficiency compared to traditional carburetors.
Enhanced Performance: Provides improved engine performance and throttle response.
Self-Learning Capability: Simplifies tuning with adaptive features.
Easy Monitoring: Allows for effortless monitoring and adjustment via the touchscreen controller.
Consistent Operation: Maintains performance across varying weather conditions.
High-Flow Injectors: Provide accurate fuel metering for optimal engine performance.
Wideband O2 Sensor: Enables real-time feedback for better tuning.
Aftermarket Manifold: Included for proper injector placement.
Product identification
- Brand: FiTech
- Model / MPN: 37854-1
